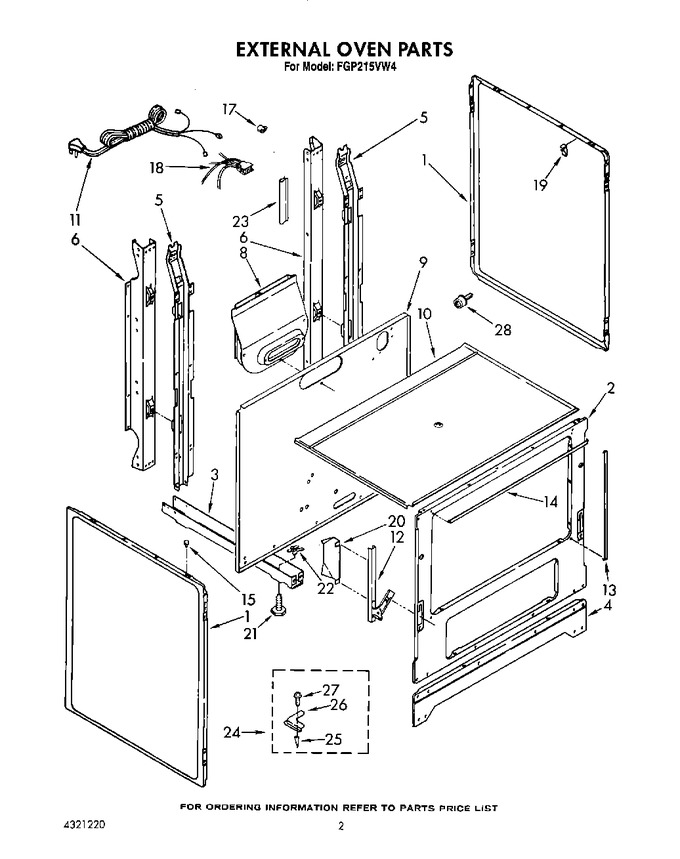

02 - External Oven


03 - Oven Door And Broiler


04 - Backguard


05 - Cooktop And Manifold, Lit/optional


06 - Internal Oven


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4157130		Panel, Side (2) (almond)		Appelez-nous	-
1	WP308685		Panel, Side (2) (screw, 10-12 X 1/2 (10))   (Replaces: 4157111)			Immediately	$ 7.87
1	4157000		Panel, Side (2) (white)		Appelez-nous	-
2	WP308685		Screw, 10-12 X 1/2 (6)   (Replaces: 4157111)			Immediately	$ 7.87
2	4315084		Frame, Front		Appelez-nous	-
3	4157005		Rail, Base (2)		Appelez-nous	-
4	4157122		Screw, 10-12 X 1/2 (4)		Appelez-nous	-
4	4157945		Base, Front		Appelez-nous	-
5	4157011		Support, Main (2)		Appelez-nous	-
5	4157123		Screw, 10-32 X 1/2 (1)		Appelez-nous	-
5	WP308685		Screw, 10-12 X 1/2 (12)   (Replaces: 4157111)			Immediately	$ 7.87
6	4315382		Support, Rear (2)		Appelez-nous	-
6	WP681414		Screw, 10-12 X 1/2 (4)   (Replaces: 4157114)			Immediately	$ 8.47
6	WP308685		Screw, 10-12 X 1/2 (6)   (Replaces: 4157111)			Immediately	$ 7.87
8	4157014		Flue, Box		Appelez-nous	-
8	WP681414		Screw, 10-12 X 1/2 (3)   (Replaces: 4157114)			Immediately	$ 8.47
9	WP308685		Screw, 10-12 X 1/2 (5)   (Replaces: 4157111)			Immediately	$ 7.87
9	4315414		Panel, Rear		Appelez-nous	-
10	4157925		Burner Box		Appelez-nous	-
10	WP308685		Screw, 10-12 X 1/2 (3)   (Replaces: 4157111)			Immediately	$ 7.87
11	W11582239		Cord, Power   (Replaces: 4157021)				$ 17.59
12	4179315		Hinge, Door (2)		Appelez-nous	-
12	WP308685		Screw, 10-12 X 1/2 (2)   (Replaces: 4157117)			Immediately	$ 7.87
12	4157124		Screw, 10-24 X 3/8 (2)		Appelez-nous	-
13	4315334		Seal, Door (2) (side)		Appelez-nous	-
14	4315331		Seal, Door (top)		Appelez-nous	-
15	4157027		Bumper, Cooktop (2)		Appelez-nous	-
17	4157143		Strain Relief		Appelez-nous	-
18	4157220		Block, Disconnect		Appelez-nous	-
19	4157127		Clip, Wire (2)		Appelez-nous	-
20	4157876		Shield, Insulation		Appelez-nous	-
21	4157161		Leg, Leveler (4)		Appelez-nous	-
22	4157332		Nut (4)		Appelez-nous	-
23	4157132		Safe Edge		Appelez-nous	-
24	4315756		Anti Tip Kit		Appelez-nous	-
25	4315786		Anchor (2)		Appelez-nous	-
26	4315792		Bracket		Appelez-nous	-
27	4320348		Screw (2)		Appelez-nous	-
28	4315409		Stud Screw (2)		Appelez-nous	-
28	4315408		Locator Stud (2)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
