SELECT A DIAGRAM

01 - Cooktop And Manifold, Literature


02 - Oven


03 - Oven Door And Broiler


04 - Backguard

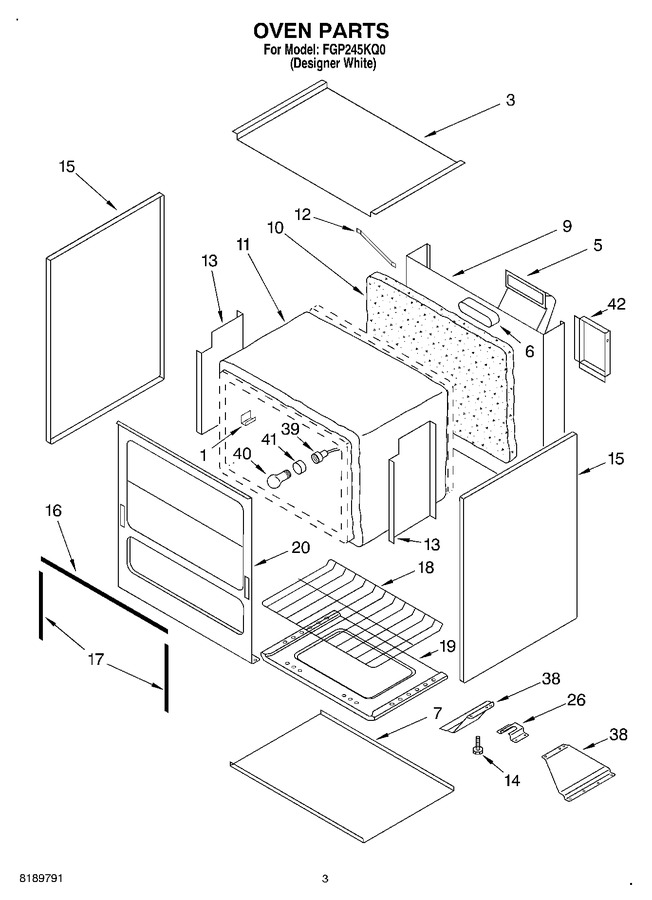

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4364130		Clip, Thermo Bulb		Appelez-nous	-
3	4364456		Bottom, Burner Box		Appelez-nous	-
5	4364074		Flue Box		Appelez-nous	-
6	4364075		Ring, Flue Box		Appelez-nous	-
7	4364457		Bottom, Main		Appelez-nous	-
9	4364458		Back, Main		Appelez-nous	-
10	4364459		Insulation, Back		Appelez-nous	-
11	4364205		Insulation, Wrap		Appelez-nous	-
12	4364133		Brace, Back		Appelez-nous	-
13	4364135		Baffle, Inner		Appelez-nous	-
14	W11673271		Leveler Leg (4)   (Replaces: 4364080)				$ 28.46
15	4364081		Panel, Side (white)		Appelez-nous	-
16	4364461		Gasket, Door (top)		Appelez-nous	-
17	4364208		Gasket, Door (side)		Appelez-nous	-
18	4364462		Rack, Oven		Appelez-nous	-
19	4364463		Bottom, Oven		Appelez-nous	-
20	4364464		Frame, Front		Appelez-nous	-
26	8190785		Anti-tip Bracket   (Replaces: 4364088)		Appelez-nous	-
38	4364089		Support, Side (left)		Appelez-nous	-
38	4364090		Support, Side (right)		Appelez-nous	-
39	4364091		Receptacle, Light		Appelez-nous	-
40	8009		Bulb, Light   (Replaces: 4364092)			Immediately	$ 17.51
41	4364093		Ring, Oven Light		Appelez-nous	-
42	4364100		Strain Relief		Appelez-nous	-
42	4364096		Harness, Wire (black Jumper)		Appelez-nous	-
42	4364097		Harness, Wire (red Jumper)		Appelez-nous	-
42	4364098		Thermostat Wire		Appelez-nous	-
42	4364099		Power Cord		Appelez-nous	-
42	4364094		Box, Power		Appelez-nous	-
42	4364095		Wire Bushing		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
