01 - Cooktop And Manifold Parts


02 - Oven Parts

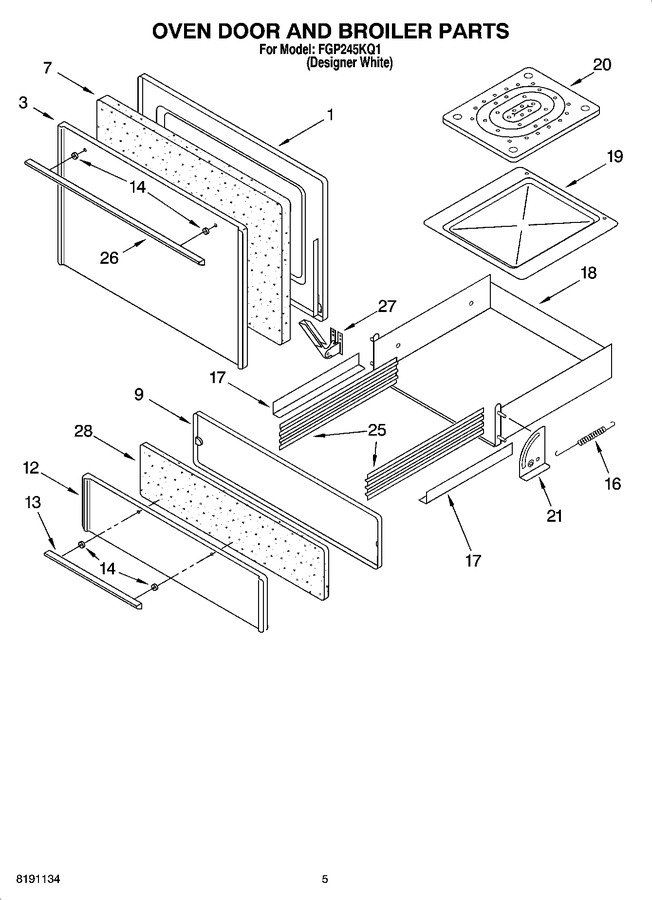

03 - Oven Door And Broiler Parts


04 - Backguard Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4364471		Liner, Door		Appelez-nous	-
3	8189752		Panel, Oven Door (white)		Appelez-nous	-
7	4364470		Insulation, Door		Appelez-nous	-
9	4364468		Liner, Brlr Drawer		Appelez-nous	-
12	8189753		Panel, Drawer (white)		Appelez-nous	-
13	4364399		Handle, Drawer		Appelez-nous	-
14	4364057		Screw, 10-24 X 3/8		Appelez-nous	-
14	4364465		Spacer, Handle		Appelez-nous	-
16	4364060		Spring, Broiler		Appelez-nous	-
17	4364062		Broiler Drawer Runner (right)		Appelez-nous	-
17	4364061		Broiler Drawer Runner (left)		Appelez-nous	-
18	4364063		Liner, Broiler		Appelez-nous	-
19	4364064		Broiler Pan		Appelez-nous	-
20	4364065		Grille, Broiler		Appelez-nous	-
21	WP488130		Hinge, Broiler (hex Nut, 10-24)   (Replaces: 4364069)				$ 6.59
21	4364066		Hinge, Broiler (left)		Appelez-nous	-
21	4364067		Hinge, Broiler (right)		Appelez-nous	-
21	4364068		Hinge, Broiler (screw, 10-24 X 3/8)		Appelez-nous	-
25	4364123		Glide, Broiler Pan		Appelez-nous	-
26	4364394		Handle, Oven Door		Appelez-nous	-
27	4364472		Hinge, Oven Door		Appelez-nous	-
28	4364467		Insulation, Broiler Drawer		Appelez-nous	-
