01 - External
02 - Oven Door And Broiler

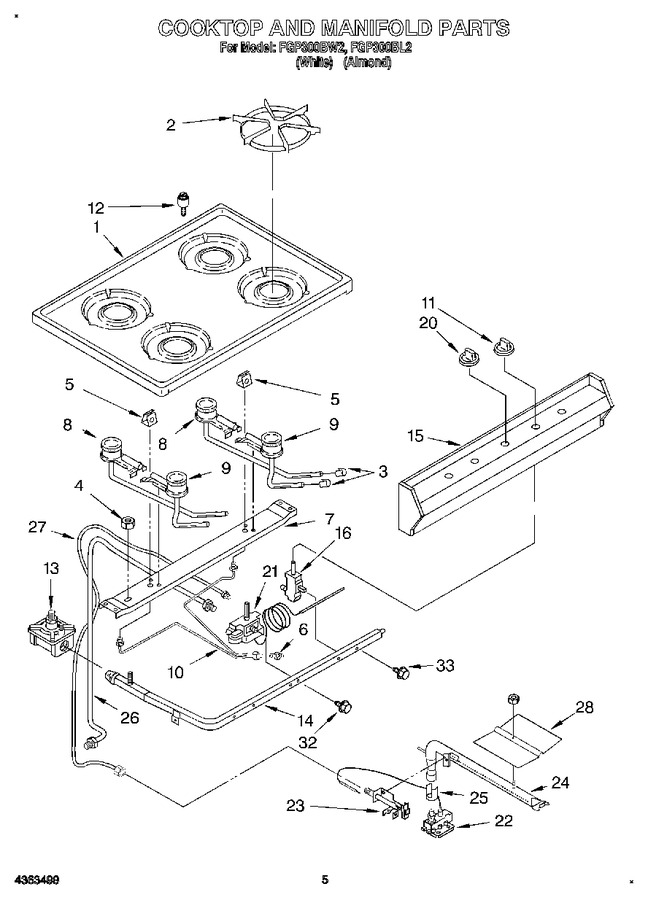

03 - Cooktop And Manifold, Lit/optional
04 - Backguard
05 - Internal
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4320480 | Cooktop (white) |
|
- | |||||
| 1 | 4179175 | Cooktop (almond) |
|
- | |||||
| 2 | 4157056 | Grate (4) |
|
- | |||||
| 3 | 4157074 | Shutter, Air (4) |
|
- | |||||
| 4 | 4157075 | Nut, Hex |
|
- | |||||
| 5 | 4157076 | Shield, Pilot (2) |
|
- | |||||
| 6 | 4157077 | Filter, Pilot |
|
- | |||||
| 7 | 4320798 | Support, Burner |
|
- | |||||
| 7 | 4320431 | Screw |
|
- | |||||
| 8 | 4363106 | Burner, Rear (2) |
|
- | |||||
| 8 | 4157121 | Screw, |
|
- | |||||
| 9 | 4320431 | Screw |
|
- | |||||
| 9 | 4363104 | Burner, Front (2) |
|
- | |||||
| 10 | 4157081 | Tubing, Pilot (incl. No. 6) |
|
- | |||||
| 11 | 4315516 | Knob, Burner (4) |
|
- | |||||
| 12 | 4157115 | Speed Clip (4) |
|
- | |||||
| 12 | 4314933 | Locator Stud (2) |
|
- | |||||
| 13 | 4157084 | Regulator, Pressure |
|
- | |||||
| 14 | WP308685 | Screw (Replaces: 4157111) |
|
Immediately | $ 7.87 | ||||
| 14 | 4314823 | Manifold |
|
- | |||||
| 15 | 4315515 | Panel, Manifold |
|
- | |||||
| 16 | 4314821 | Valve, 90~ (4) (includes Ill. No. 33) |
|
- | |||||
| 20 | 4315517 | Knob, Thermostat |
|
- | |||||
| 21 | 4314822 | Thermostat (includes Ill. No. 32) |
|
- | |||||
| 22 | 4157094 | Valve, Safety |
|
- | |||||
| 22 | WP3387230 | Screw (Replaces: 4157125) |
|
Immediately | $ 8.54 | ||||
| 23 | 4363363 | Pilot |
|
- | |||||
| 23 | 4320567 | Screw |
|
- | |||||
| 24 | 4320371 | Burner, Oven |
|
- | |||||
| 25 | 4157097 | Shutter, Burner |
|
- | |||||
| 26 | 4157098 | Tubing 3/8`` (thermostat To Safety Valve) |
|
- | |||||
| 27 | 4157099 | Tubing 3/16`` (thermostat To Pilot) |
|
- | |||||
| 28 | 4320440 | Reflector, Broiler |
|
- | |||||
| 32 | 4314816 | Bolt, Thermostat Mounting (2) |
|
- | |||||
| 33 | 241430 | Foil, Aluminum Oven (18`` X 25`) |
|
$ 20.65 | |||||
| 33 | WPW10208653 | Insulation, Fiberglass (1-1/2`` X 24`` X 120``) (Replaces: 261514) |
|
Immediately | $ 55.47 | ||||
| 33 | 4314817 | Bolt, Valve Mounting (4) |
|
- | |||||
| 33 | WPW10208653 | Insulation, Fiberglass (2-1/2`` X 22`` X 120``) (Replaces: 240132) |
|
Immediately | $ 55.47 | ||||
| LIT4363357 | Use & Care Guide |
|
- | ||||||
| LIT4363355 | Installation Instructions |
|
- |
