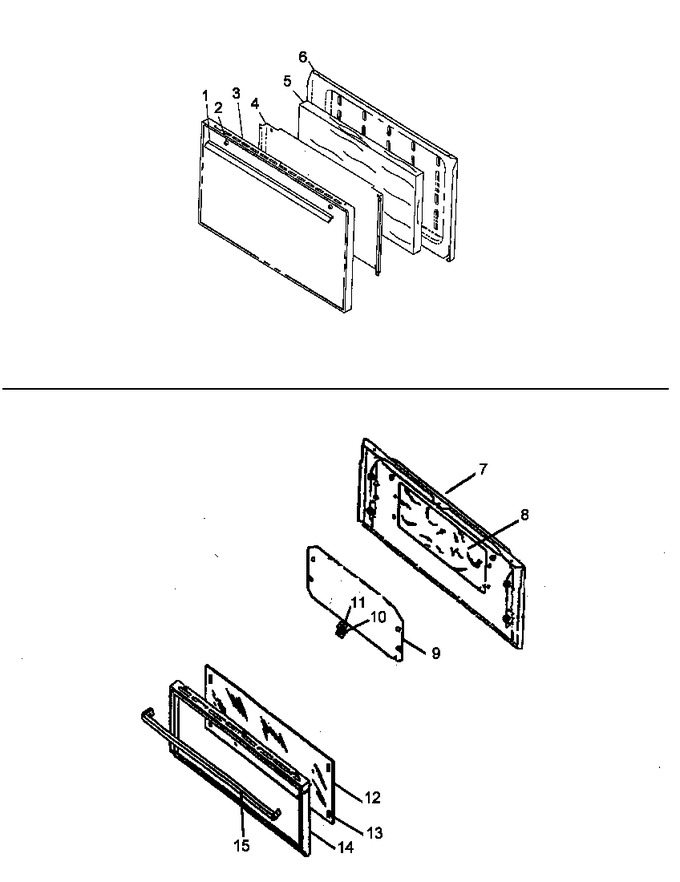

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	Y0310818		Handle Spacer, Plastic (j)		Appelez-nous	-
7	312821E		Backer Oven Door		Appelez-nous	-
8	Y0312833		Insulation Oven Door		Appelez-nous	-
9	0312825		Baffle Door Backer		Appelez-nous	-
10	Y0311752		Bracket, Bumper Mount {j}		Appelez-nous	-
11	Y02068100		Bumper-rubber 1/4``		Appelez-nous	-
12	0312829		Glass Oven Door		Appelez-nous	-
13	Y02068100		Bumper-rubber 1/4``		Appelez-nous	-
14	0312827		Frame, Oven Door Ss		Appelez-nous	-
15	Y0057316		Handle, Door (j)		Appelez-nous	-
NI	Y0310804		Screw No.10 X 1/2``		Appelez-nous	-
NI	0310234		Screw No.10 X 5/16		Appelez-nous	-
NI	Y0311884		Screw, Door Handle		Appelez-nous	-
