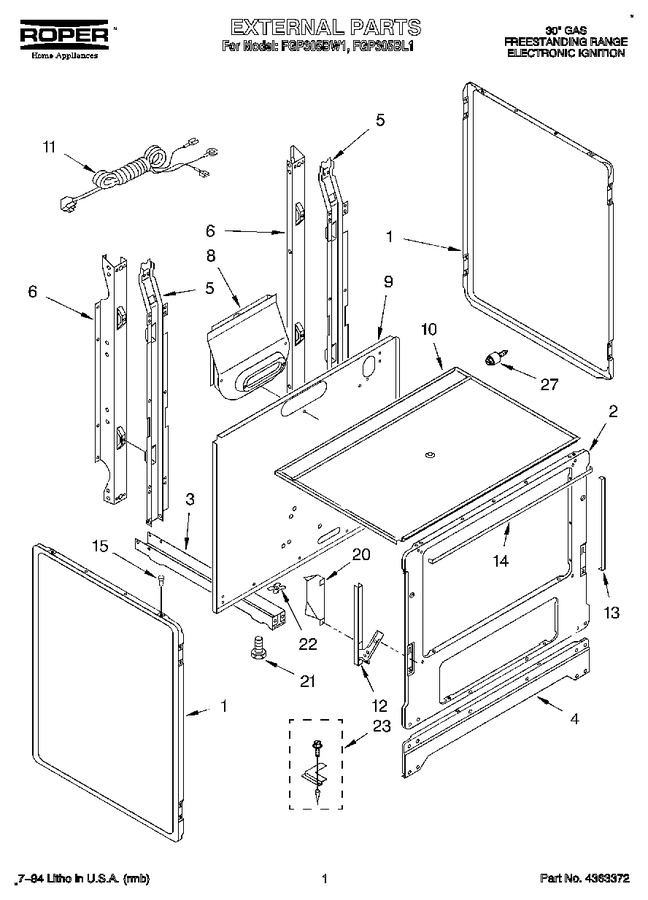

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4363024		Panel, Side (2) (white)		Appelez-nous	-
1	4363025		Panel, Side (2) (almond)		Appelez-nous	-
1	WP308685		Panel, Side (2) (screw, 10-12 X 1/2 (10))   (Replaces: 4320407)			Immediately	$ 7.87
2	WP308685		Screw, 10-12 X 1/2 (6)   (Replaces: 4157111)			Immediately	$ 7.87
2	4321257		Frame, Front		Appelez-nous	-
3	4363194		Rail, Base (2)		Appelez-nous	-
4	4157006		Base, Front		Appelez-nous	-
4	4157122		Screw, 10-12 X 1/2 (4)		Appelez-nous	-
5	4157123		Screw, 10-32 X 1/2 (1)		Appelez-nous	-
5	WP308685		Screw, 10-12 X 1/2 (10)   (Replaces: 4320407)			Immediately	$ 7.87
5	4157011		Support, Main (2)		Appelez-nous	-
6	WP681414		Screw, 10-12 X 1/2 (4)   (Replaces: 4157114)			Immediately	$ 8.47
6	WP308685		Screw, 10-12 X 1/2 (6)   (Replaces: 4157111)			Immediately	$ 7.87
6	4315382		Support, Rear (2)		Appelez-nous	-
8	WP308685		Screw, 10-12 X 1/2 (5)   (Replaces: 4320407)			Immediately	$ 7.87
8	4363002		Box, Flue		Appelez-nous	-
9	WP308685		Screw, 10-12 X 1/2 (10)   (Replaces: 4320407)			Immediately	$ 7.87
9	4363085		Panel, Rear		Appelez-nous	-
10	4320679		Burner Box		Appelez-nous	-
10	WP308685		Screw, 10-12 X 1/2 (5)   (Replaces: 4320407)			Immediately	$ 7.87
11	4363111		Cord, Power		Appelez-nous	-
12	4157022		Hinge, Door (2)		Appelez-nous	-
12	4320662		Screw, 10-24 X 5/8 (2)		Appelez-nous	-
12	4320567		Screw, 10-12 X 5/16 (2)		Appelez-nous	-
13	4315334		Seal, Door (2) (side)		Appelez-nous	-
14	4315333		Seal, Door (2) (top)		Appelez-nous	-
15	4157027		Bumper, Cooktop (2)		Appelez-nous	-
20	4157325		Shield, Hinge (2)		Appelez-nous	-
21	4363195		Leg, Leveler (4)		Appelez-nous	-
22	4157332		Tee-nut (4)		Appelez-nous	-
23	4320545		Anti-tip Kit		Appelez-nous	-
27	4315409		Stud Screw (2)		Appelez-nous	-
27	4315408		Locator Stud (2)		Appelez-nous	-
