View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM

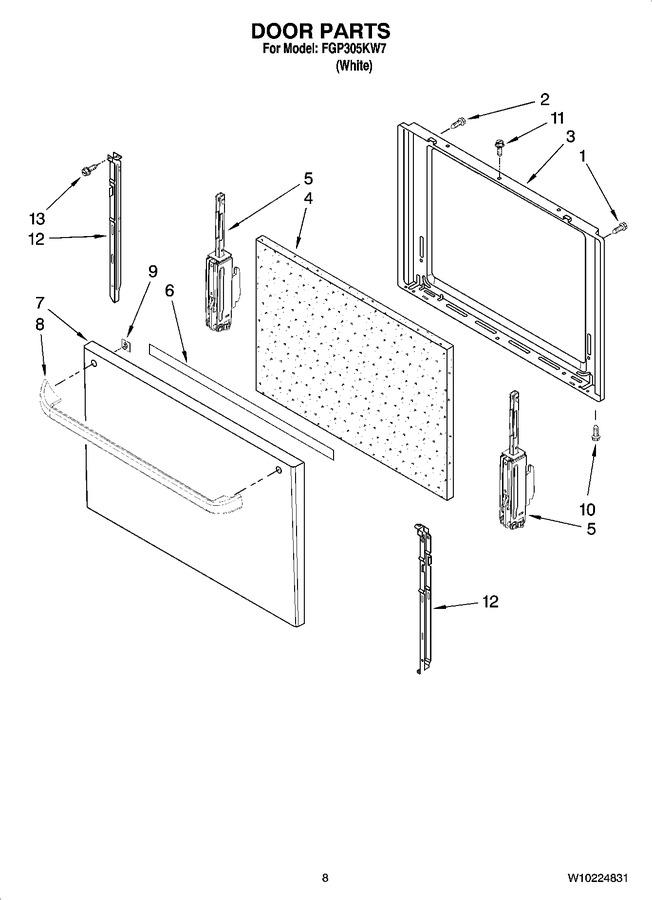

01 - Cooktop Parts
02 - Backguard Parts
03 - Manifold Parts
04 - Chassis Parts
05 - Oven & Broiler Parts
06 - Door Parts, Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP8533842 | Screw (2) (Replaces: 8533842) |
|
$ 7.30 | |||||
| 2 | W11206744 | Screw (2) (Replaces: 98008699) |
|
$ 14.23 | |||||
| 3 | 98017966 | Liner, Door |
|
- | |||||
| 4 | W10137223 | Insulation, Door |
|
- | |||||
| 5 | 98017875 | Hinge, Door (2) (right) |
|
$ 31.85 | |||||
| 5 | 98017873 | Hinge, Door (2) (left) |
|
$ 39.94 | |||||
| 6 | 98017250 | Retainer, Upper (2) |
|
- | |||||
| 7 | WP98017968W | Panel, Door (Replaces: 98017968W) |
|
$ 235.53 | |||||
| 8 | W10819915 | Handle, Oven Door (Replaces: 98017915B) |
|
- | |||||
| 9 | 98017967 | Bracket, Handle (2) |
|
- | |||||
| 10 | WP59002061 | Screw (Replaces: 98004993) |
|
$ 8.18 | |||||
| 11 | 3196166 | Screw (Replaces: 98006727) |
|
$ 7.36 | |||||
| 12 | 98004629 | Retainer (left) |
|
- | |||||
| 12 | 98004564 | Retainer (right) |
|
- | |||||
| 13 | WP3400805 | Screw (Replaces: 98004219) |
|
$ 7.55 | |||||
| WP3391018 | Cable Tie-push Mnt (Replaces: 3391018) |
|
$ 33.43 | ||||||
| 350930 | Paint, Pressurized Spray (12 Oz.) White |
|
Immediately | $ 40.12 | |||||
| 285006 | Paint, Pressurized Spray 12 Oz.) (superior Black) |
|
$ 59.89 | ||||||
| 350942 | Paint, Pressurized Spray (12 Oz.) (primer, White) (Replaces: 206922) |
|
$ 94.14 | ||||||
| 799344 | Paint, Bulk (1 Qt.) (white) (uncut) |
|
$ 237.46 | ||||||
| 4392900 | Paint, Bulk (1 Qt.) (biscuit) (uncut) |
|
- | ||||||
| WPW10477747 | Anti-tip Kit (Replaces: 98017833) |
|
$ 22.88 | ||||||
| 98012220 | Pin Kit-dr Removal |
|
$ 10.38 | ||||||
| 4392901 | Paint, Pressurized Spray (12oz.) (biscuit) |
|
- | ||||||
| 799832 | Kit. Porcelain Repair (white) |
|
- | ||||||
| 8212471 | Touch-up Self-clean(1/2 Pt) (Replaces: 242756) |
|
Immediately | $ 87.22 | |||||
| 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 12.30 | |||||
| 261582 | Grease |
|
- | ||||||
| WPW10208653 | Insulation, Fiberglass (1-1/2`` X 24`` X 120``) (Replaces: 261514) |
|
Immediately | $ 55.47 | |||||
| WPW10208653 | Insulation, Fiberglass (2-1/2`` X 22`` X 120``) (Replaces: 240132) |
|
Immediately | $ 55.47 | |||||
| 4392899 | Paint, Touch-up (1/2oz.) (biscuit) |
|
Immediately | $ 27.77 | |||||
| 511873 | Paint, Touch-up (1/2oz.) (white (porcelain (2 Oz.)) |
|
$ 51.75 | ||||||
| 98014534 | Harness, T-stat |
|
- | ||||||
| 3196696 | Clip, Harness |
|
- | ||||||
| 98015022 | Bushing, Snap (2) |
|
- | ||||||
| 549193 | Clamp, Cord (Replaces: 98005894) |
|
$ 14.06 |
