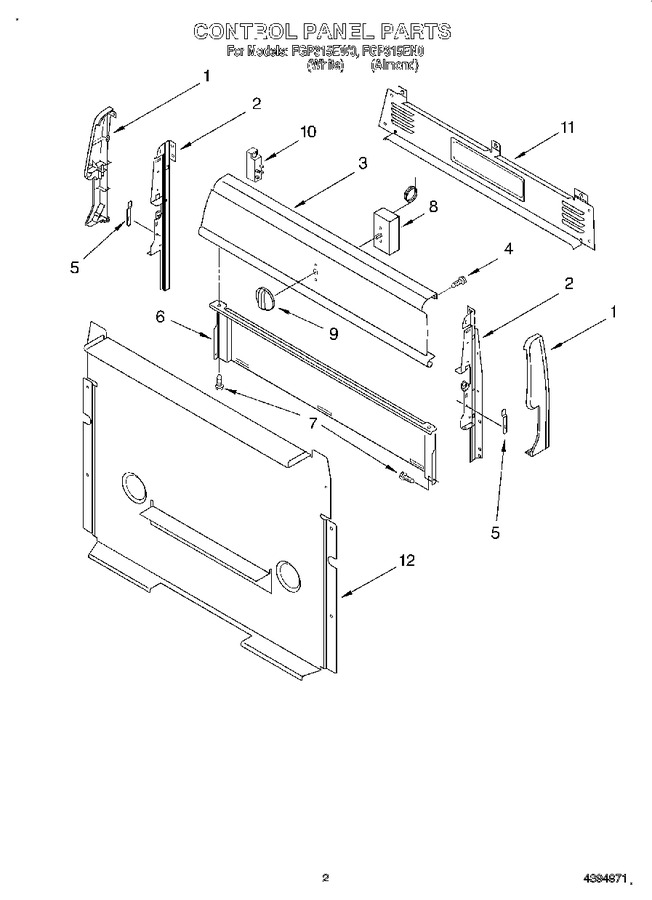

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 3195317 Endcap (right Hand) Appelez-nous -
1 3195316 Endcap (left Hand) Appelez-nous -
2 3186198 Support, Endcap (left Hand) Appelez-nous -
2 3186199 Support, Endcap (right Hand) Appelez-nous -
3 3195343 Panel, Backguard Appelez-nous -
4 W11233072 Screw, (2)   (Replaces: 3196178) In-Stock Immediately $ 14.72

5 3196200 Clip, Spring (2) Special Order $ 10.45

6 3186187 Shield, Heat Appelez-nous -
7 W10276642 Screw (4)   (Replaces: 4449746) Special Order $ 6.41

8 3196171 Screw (2) Appelez-nous -
8 3195211 Thermostat Special Order $ 62.61

9 3196042 Knob, Thermostat Appelez-nous -
10 3196023 Module, Spark Appelez-nous -
10 WPY706189 Screw (2)   (Replaces: 3196427) In-Stock Immediately $ 7.55

11 W11233072 Screw (5)   (Replaces: 3196178) In-Stock Immediately $ 14.72

11 3195963 Cover, Upper Appelez-nous -
12 W11233072 Screw (6)   (Replaces: 3196178) In-Stock Immediately $ 14.72

12 3195964 Cover, Lower Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List
