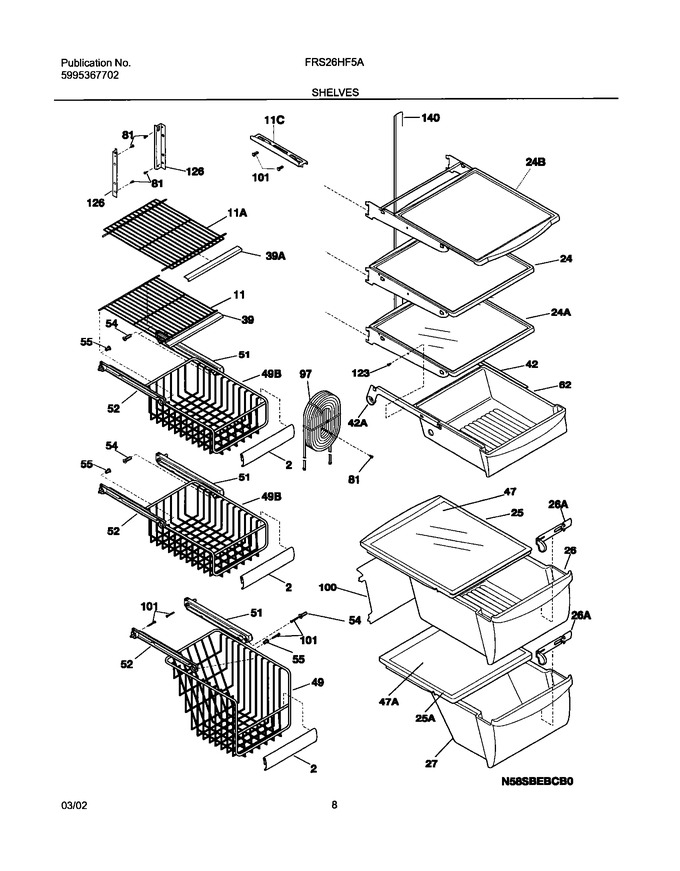

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	240434602		Trim-basket		Appelez-nous	-
11	240338802		Shelf-freezer,flip-up		Appelez-nous	-
24	240355270		Shelf-``spill-safe``,fixed   (Replaces: 240355208)				$ 189.59
25	240350702		Cover-crisper Pan,upper			Immediately	$ 46.58
26	240351061		Pan-crisper,upper   (Replaces: 240351005)			Immediately	$ 122.23
27	240351240		Pan-crisper,lower   (Replaces: 240351205)				$ 226.05
39	240430706		Trim-shelf,11.21`` ,front				$ 81.85
42	240356501		Hanger-meat Pan,rh			Immediately	$ 63.00
47	240350649		Insert-pan Cover,glass   (Replaces: 240350633)			Immediately	$ 137.66
49	240338402		Basket-sliding		Appelez-nous	-
51	240343002		Hanger-basket,rh				$ 72.47
52	240343102		Hanger-basket,lh				$ 77.52
54	240351901		Plug-hanger,right Hand		Appelez-nous	-
55	240352001		Plug-hanger,left Hand		Appelez-nous	-
62	240342830		Pan-meat   (Replaces: 240342805)				$ 95.54
81	5304455650		Screw   (Replaces: 5308016566)				$ 15.75
97	240545302		Water Tank Assy,coiled Tubing ,   (Replaces: 240453003)				$ 311.85
100	240326304		Cover-water Tank   (Replaces: 240326302)				$ 81.74
101	218493101		Screw,hex Washer Head `8-18ab X 1-3/4   (Replaces: 218493100)				$ 14.96
123	215005101		Screw-roller/hanger`8-10 X 0.438   (Replaces: 215005100)				$ 16.54
126	218867402		Channel`auger Mtg ,rh		Appelez-nous	-
126	218867401		Channel,auger Mtg ,lh		Appelez-nous	-
140	240430501		Channel,water Tube Cvr				$ 108.68
11A	240338704		Shelf-freezer,fixed Wire		Appelez-nous	-
11C	240324101		Shelf-pizza				$ 66.57
24A	240355203		Shelf-``spill-safe``,cantilever ,   (Replaces: 240355207)				$ 422.15
24B	240350150		Shelf-``spill-safe``,cantilever ,sliding   (Replaces: 240350108)				$ 196.33
25A	240350903		Cover-crisper Pan,lower   (Replaces: 240350902)				$ 102.21
26A	240362201		Control-humidity				$ 77.18
39A	240430702		Trim-shelf,12.39`` ,front				$ 21.89
42A	240356702		Seal-meat Pan		Appelez-nous	-
42A	240350001		· Spring-meat Pan Rail				$ 76.55
42A	240349901		Block-meat Pan Rail,lh				$ 67.01
42A	240349701		Hanger-meat Pan,lh			Immediately	$ 64.58
47A	240350603		Insert-pan Cover,glass			Immediately	$ 128.36
49B	240338502		Basket-sliding,upper ,half		Appelez-nous	-
F101	5304455650		Screw,hex Wshr Hd ,8-18ab X 0.750 ,   (Replaces: 215005000)				$ 15.75
NI	240362101		Clip-slide,cover-crisper				$ 52.25
NI	240349801		Clip-slide,pan-crisper				$ 22.75
