SELECT A DIAGRAM

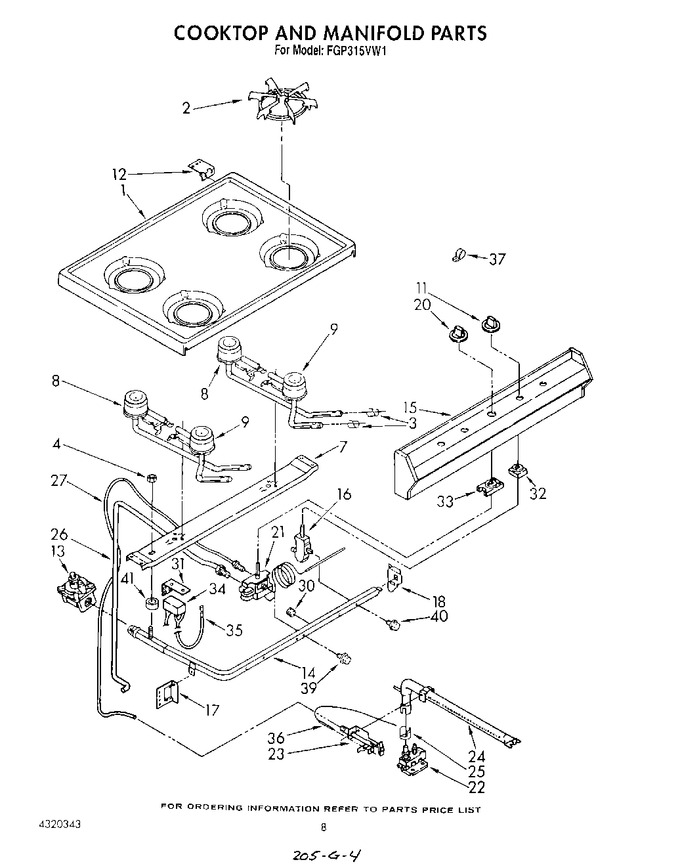

02 - External Oven


03 - Internal Oven


04 - Backguard


05 - Oven Door And Broiler


06 - Cooktop And Manifold, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4179174		Cooktop (white)		Appelez-nous	-
1	4179175		Cooktop (almond)		Appelez-nous	-
2	4157056		Grate (4)		Appelez-nous	-
3	4157074		Shutter, Air (4)		Appelez-nous	-
4	4157075		Nut, Hex		Appelez-nous	-
7	4157078		Support, Burner		Appelez-nous	-
7	4157121		Screw, 10-12 X 3/8 (4)		Appelez-nous	-
8	4179101		Burner, Rear (2)		Appelez-nous	-
8	4157121		Screw, 10-12 X 3/8 (2)		Appelez-nous	-
9	4157121		Screw, 10-12 X 3/8 (2)		Appelez-nous	-
9	4179100		Burner, Front (2)		Appelez-nous	-
11	4315516		Knob, Burner (4)		Appelez-nous	-
12	4157115		Speed Clip (4)		Appelez-nous	-
12	4157083		Hinge, Cooktop (2)		Appelez-nous	-
12	WP681414		Screw, 10-12 X 1/2 (4)   (Replaces: 4157114)			Immediately	$ 8.47
12	WP308685		Screw, 10-12 X 1/2 (4)   (Replaces: 4157111)			Immediately	$ 7.87
13	4157084		Regulator, Pressure		Appelez-nous	-
14	WP308685		Screw, 10-12 X 1/2 (1)   (Replaces: 4157111)			Immediately	$ 7.87
14	4314823		Manifold		Appelez-nous	-
15	4315515		Panel, Manifold		Appelez-nous	-
16	4314821		Valve, 90~ (4) (includes Ill. No. 40)		Appelez-nous	-
17	4157088		Support, Manifold (l.h.)		Appelez-nous	-
17	WP308685		Screw, 10-12 X 1/2 (3)   (Replaces: 4157111)			Immediately	$ 7.87
18	WP308685		Screw, 10-12 X 1/2 (2)   (Replaces: 4157111)			Immediately	$ 7.87
18	4314820		Support, Manifold (r.h.)		Appelez-nous	-
20	4315517		Knob, Thermostat		Appelez-nous	-
21	4314890		Thermostat (includes Ill. No. 39)		Appelez-nous	-
22	4157094		Valve, Safety		Appelez-nous	-
22	WP3387230		Screw, 10-12 X 3/4 (2)   (Replaces: 4157125)			Immediately	$ 8.54
23	4157126		Screw, 10-24 X 1/4 (1)		Appelez-nous	-
23	4157179		Pilot		Appelez-nous	-
24	4179289		Burner, Oven		Appelez-nous	-
25	4157097		Shutter, Burner		Appelez-nous	-
26	4157098		Tubing 3/8`` (thermostat To Safety Valve)		Appelez-nous	-
27	4157099		Tubing 3/16`` (thermostat To Pilot)		Appelez-nous	-
30	W10295523		Plug, Pipe 1/8``   (Replaces: 4157167)		Appelez-nous	-
31	4157171		Plate, Module		Appelez-nous	-
32	WP4157180		Switch, Valve   (Replaces: 4157180)				$ 119.66
33	WP878009		Switch, Ignitor   (Replaces: 4157210)				$ 120.61
34	4315322		Module, Spark		Appelez-nous	-
35	4179205		Ignitor (l.h.)		Appelez-nous	-
35	4179204		Ignitor (r.h.)		Appelez-nous	-
35	4315330		Ignitor (screw, 8 X 1/2 (4))		Appelez-nous	-
36	4315316		Ignitor, Oven		Appelez-nous	-
37	4157185		Strain Relief		Appelez-nous	-
39	4314816		Bolt, Thermostat Mounting (2)		Appelez-nous	-
40	4314817		Bolt, Valve Mounting		Appelez-nous	-
41	WPW10208653		Insulation, Fiberglass (1-1/2`` X 24`` X 120``)   (Replaces: 261514)			Immediately	$ 55.47
41	241430		Foil, Aluminum Oven (18`` X 25`)				$ 20.65
41	WPW10208653		Insulation, Fiberglass (2-1/2`` X 22`` X 120``)   (Replaces: 240132)			Immediately	$ 55.47
41	4315207		Spacer, Manifold		Appelez-nous	-
	LIT4320343		List, Repair Parts		Appelez-nous	-
	LIT4315518		Instuctions, Installation		Appelez-nous	-
	LIT4315527		Guide, Use & Care		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
