SELECT A DIAGRAM

02 - External Oven

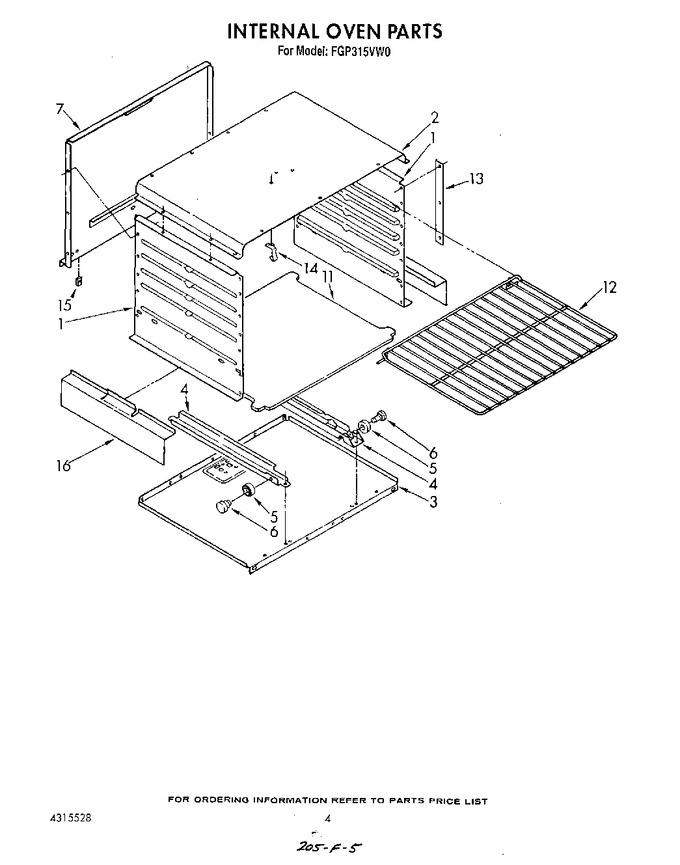

03 - Internal Oven


04 - Backguard


05 - Oven Door And Broiler


06 - Cooktop And Manifold, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP308685		Screw, 10-12 X 1/2 (6)   (Replaces: 4157111)			Immediately	$ 7.87
1	4315042		Liner, Oven Side (2)		Appelez-nous	-
2	4315045		Liner, Oven Top		Appelez-nous	-
2	WP308685		Screw, 10-12 X 1/2 (4)   (Replaces: 4157111)			Immediately	$ 7.87
3	4315389		Baffle, Bottom		Appelez-nous	-
4	4315385		Track, Broiler (right Hand)		Appelez-nous	-
4	WP308685		Track, Broiler (screw, 10-12 X 1/2 (4))   (Replaces: 4157111)			Immediately	$ 7.87
4	4315384		Track, Broiler (left Hand)		Appelez-nous	-
5	4315388		Roller (2)		Appelez-nous	-
6	4315381		Pin, Roller (2)		Appelez-nous	-
7	WP308685		Screw, 10-12 X 1/2 (2)   (Replaces: 4157117)			Immediately	$ 7.87
7	4315524		Liner, Oven Back		Appelez-nous	-
11	4315071		Bottom, Oven		Appelez-nous	-
12	4157102		Rack, Oven (1)		Appelez-nous	-
13	4157328		Support, Liner (2)		Appelez-nous	-
14	98005642		Clip, Thermo Bulb (2)   (Replaces: 4157329)			Immediately	$ 87.08
15	4157330		Clip, Speed		Appelez-nous	-
16	4157331		Shield, Radiation		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
