SELECT A DIAGRAM

01 - Cooktop


02 - Backguard


03 - Manifold


04 - Chassis


05 - Oven And Broiler


06 - Door, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP3196164		Screw (2)   (Replaces: 3196164)			Immediately	$ 11.03
1	3195605		Trim, Top		Appelez-nous	-
2	WP179051		Screw, Handle (2)   (Replaces: 3196161)			Immediately	$ 8.42
3	WPW10202217		Handle, Door   (Replaces: 3195213)				$ 270.65
4	3186294		Liner, Door		Appelez-nous	-
5	3186253		Insulation, Door		Appelez-nous	-
6	3196074		Hinge, Door (2)		Appelez-nous	-
7	3195967		Trim, Door (2) (left Hand)		Appelez-nous	-
7	3195970		Trim, Door (2) (right Hand)		Appelez-nous	-
8	3186269		Glass, Door		Appelez-nous	-
9	W10491985		Screw (9)   (Replaces: 3196160)			Immediately	$ 7.55
10	8184858		Trim, Lower   (Replaces: 3195424)				$ 168.85
11	3196025		Clip, Glass (6)				$ 20.10
14	3196071		Plug, Door		Appelez-nous	-
15	285367		Enamal, Toast (1 Qt. Uncut)		Appelez-nous	-
15	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
15	242820		Wire (14 Ga. 150 C Black)		Appelez-nous	-
15	350942		Primer (white)   (Replaces: 206922)				$ 94.14
15	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
15	978883		Almond (uncut)		Appelez-nous	-
15	261891		Harvest Gold (uncut)		Appelez-nous	-
15	350956		Paint, Spray 13 Oz. (almond)				$ 54.01
15	285368		Platinum (uncut)		Appelez-nous	-
15	241430		Foil, Aluminum Oven (18`` X 25`)				$ 20.65
15	3196471		Lp Conversion Kit (natural Gas To L.p. Gas)		Appelez-nous	-
15	8273888A		Anti-tip Kit   (Replaces: 3176830)				$ 32.62
15	238614		Bumper, Door (2)   (Replaces: 3195809)				$ 84.79
15	242828		Wire (12 Ga. 150 C Black)		Appelez-nous	-
15	242821		Wire (14 Ga. 150 C Blue)		Appelez-nous	-
15	242822		Wire (14 Ga. 150 C Brown)		Appelez-nous	-
15	242830		Wire (14 Ga. 200 C Brown)		Appelez-nous	-
15	242823		Wire (14 Ga. 150 C Green)		Appelez-nous	-
15	242824		Wire (14 Ga. 150 C Orange)		Appelez-nous	-
15	242829		Wire, Red 12 Ga. 150~c		Appelez-nous	-
15	242825		Wire (14 Ga. 150 C Red)		Appelez-nous	-
15	242831		Wire (14 Ga. 200 C Red)				$ 342.23
15	242826		Wire, White 14 Ga. 150~c		Appelez-nous	-
15	242827		Wire (14 Ga. 150 C Yellow)		Appelez-nous	-
15	242832		Wire, Yellow 14 Ga. 200~c		Appelez-nous	-
15	799832		Kit. Porcelain Repair (white)		Appelez-nous	-
15	8212471		Touch-up Self-clean(1/2 Pt)   (Replaces: 242756)			Immediately	$ 87.22
15	261582		Grease		Appelez-nous	-
15	WPW10208653		Insulation, Fiberglass (1-1/2`` X 24`` X 120``)   (Replaces: 261514)			Immediately	$ 55.47
15	WPW10208653		Insulation, Fiberglass (2-1/2`` X 22`` X 120``)   (Replaces: 240132)			Immediately	$ 55.47
15	DD81-03471A		Paint, Touch-up 1/2 Oz. (avocado)   (Replaces: 72109)				$ 60.28
15	DD81-03944A		Paint, Touch-up 1/2 Oz. (coffee)   (Replaces: 72108)				$ 109.25
15	DD81-03523A		Paint, Touch-up 1/2 Oz. (harvest Gold)   (Replaces: 72110)				$ 137.86
15	72112		Paint, (touch-up 1/2 Oz.) (toast)		Appelez-nous	-
15	DD81-03496A		Paint, Touch-up 1/2 Oz. (platinum)   (Replaces: 72113)				$ 117.11
15	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 51.75
15	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 40.12
15	261888		New Avocado		Appelez-nous	-
15	261886		Coffee		Appelez-nous	-
15	261890		Harvest Gold		Appelez-nous	-
15	285365		Toast		Appelez-nous	-
15	285366		Paint, Spray (13 Oz.) (platinum)		Appelez-nous	-
15	285006		Paint, Spray 13 Oz. (black)				$ 59.89
15	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 18.81
	LIT3195945		Installation Instr (templet)		Appelez-nous	-
	LIT3196294		Guide, Use & Care		Appelez-nous	-
	LIT3196325		Instructions, Installation		Appelez-nous	-

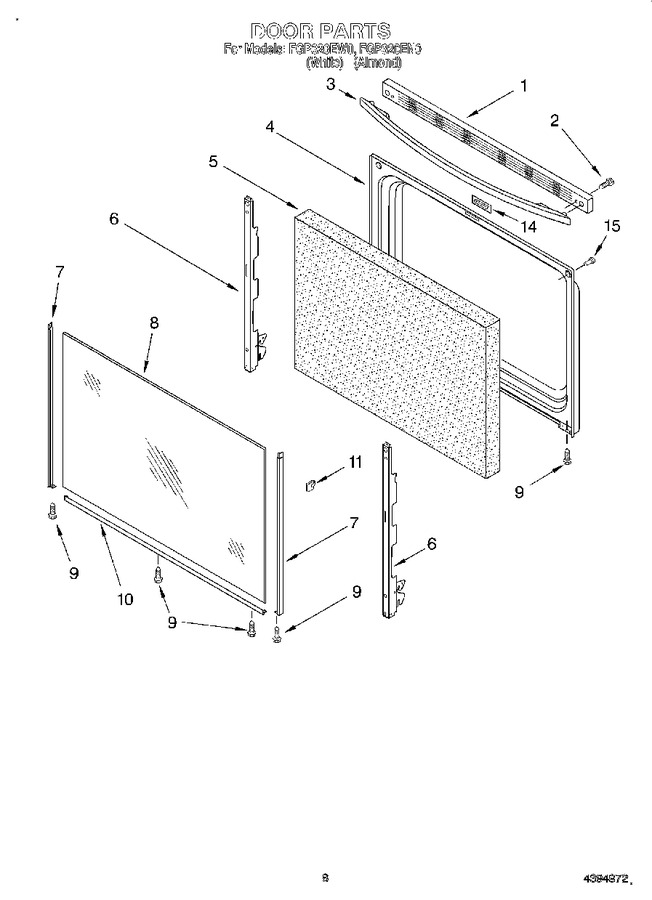

    View Diagram in Separate Window       Print Part List
