Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 3195316 Endcap (left Hand-black) Appelez-nous -
1 3195317 Endcap (right Hand-black) Appelez-nous -
2 3186198 Support, Endcap (left Hand) Appelez-nous -
2 3186199 Support, Endcap (right Hand) Appelez-nous -
3 3195343 Panel, Backguard (black) Appelez-nous -
5 3196200 Clip, Spring (2) Special Order $ 10.45

6 8053910 Shield, Heat Appelez-nous -
7 W10276642 Screw   (Replaces: 4449746) Special Order $ 6.41

8 3195211 Thermostat Special Order $ 62.61

9 3196042 Knob, Thermostat (black) Appelez-nous -
10 8053420 Module, Spark Appelez-nous -
11 3195963 Cover, Upper Appelez-nous -
12 8053509 Cover, Lower Appelez-nous -
13 W11233072 Screw   (Replaces: 3196178) In-Stock Immediately $ 14.72

14 WPY706189 Screw   (Replaces: 3196427) In-Stock Immediately $ 7.55

15 WP3400882 Screw   (Replaces: 3400882) In-Stock Immediately $ 7.55


    View Diagram in Separate Window     Print Icon   Print Part List

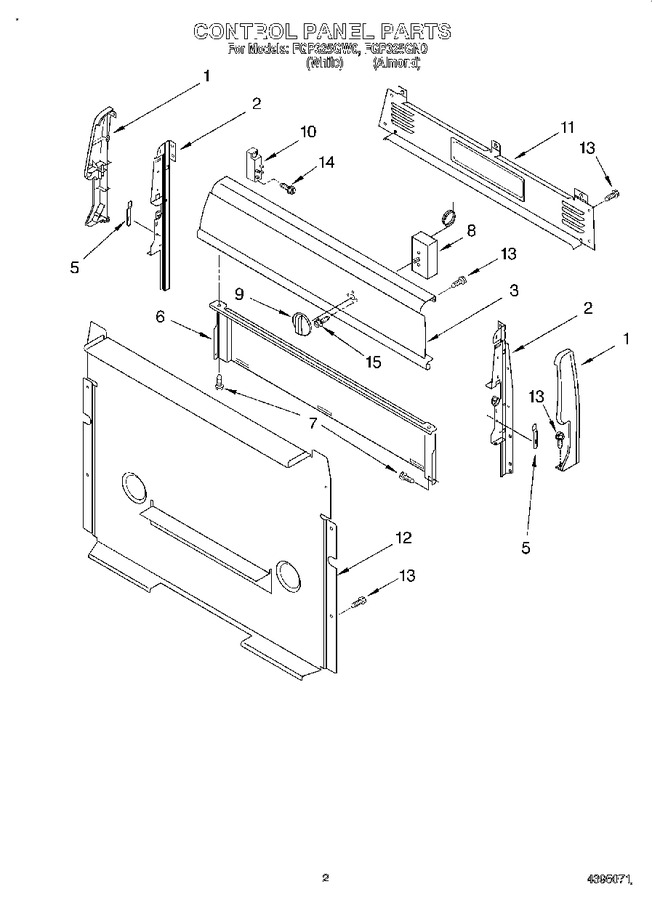

Diagram for FGP325GW0
