SELECT A DIAGRAM

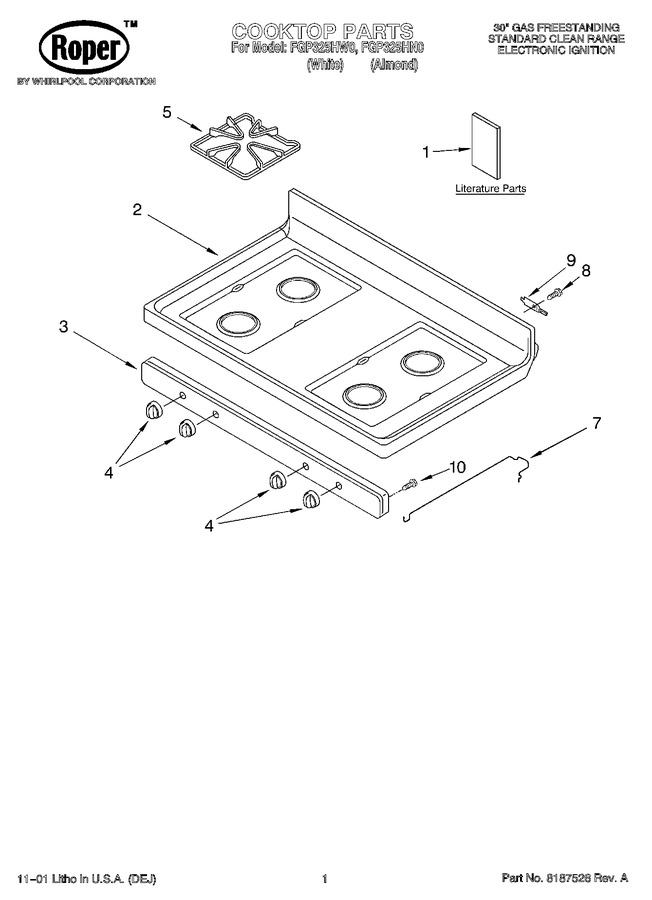

01 - Cooktop, Literature


02 - Control Panel


03 - Manifold


04 - Chassis


05 - Oven And Broiler


06 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LIT8273166		Literature Parts (instructions, Installation)		Appelez-nous	-
1	LIT8523048		Literature Parts (installation Instr (template))		Appelez-nous	-
1	LIT8522676		Literature Parts (guide, Use & Care)		Appelez-nous	-
1	LIT8054033		Literature Parts (diagram, Wiring)		Appelez-nous	-
1	LIT3191638		Safer Cooking Tips		Appelez-nous	-
2	3186031		Cooktop (almond)		Appelez-nous	-
2	3186030		Cooktop (white)		Appelez-nous	-
3	8273034		Panel, Manifold (black)		Appelez-nous	-
4	3196045		Knob, Burner (4) (black)		Appelez-nous	-
5	3186110		Grate, Burner (4)		Appelez-nous	-
7	WP3195812		Rod, Support (2)   (Replaces: 3195812)			Immediately	$ 8.73
8	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 14.72
9	WP3195060		Hinge, Cooktop (2)   (Replaces: 3195060)			Immediately	$ 13.18
10	WP3196557		Screw   (Replaces: 3196557)			Immediately	$ 7.95

    View Diagram in Separate Window       Print Part List
