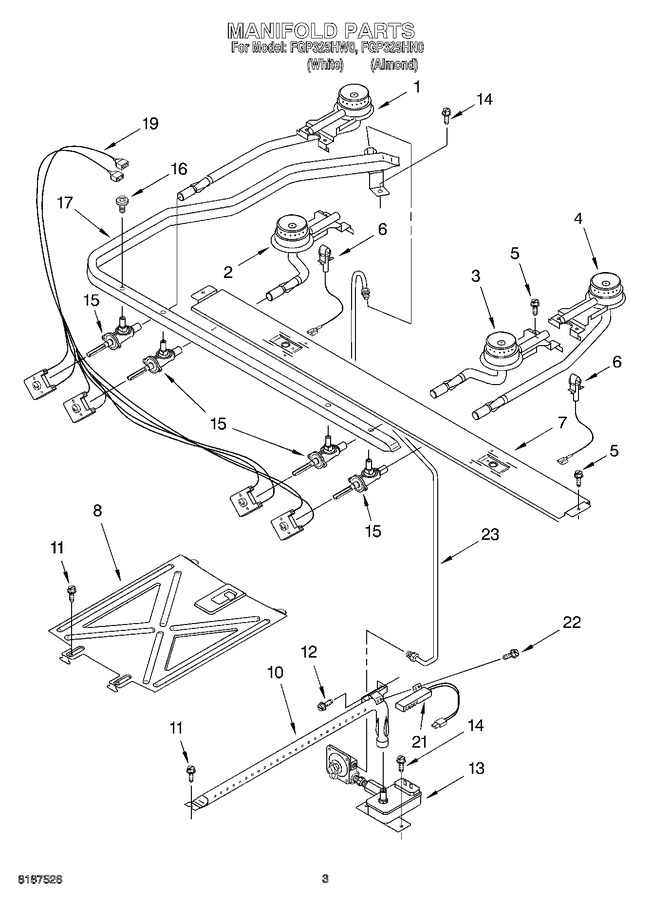

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3186213		Burner (left Rear)				$ 90.26
2	3186209		Burner, Left Front		Appelez-nous	-
3	3186214		Burner, Rt. Front		Appelez-nous	-
4	3186215		Burner (right Rear)		Appelez-nous	-
5	W10491985		Screw   (Replaces: 3196160)			Immediately	$ 7.55
6	3186108		Igniter, Surface (left Hand)		Appelez-nous	-
6	3186107		Igniter, Surface (right Hand)		Appelez-nous	-
7	3186207		Support, Burner		Appelez-nous	-
8	8053970		Spreader, Flame		Appelez-nous	-
10	3186476		Burner, Oven		Appelez-nous	-
11	W11233072		Screw   (Replaces: 3196176)			Immediately	$ 14.72
12	3196265		Screw		Appelez-nous	-
13	3195008		Valve, Gas Combo				$ 207.46
14	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 14.72
15	3196850		Valve, Burner (4)		Appelez-nous	-
16	3186217		Screw				$ 5.53
17	3186221		Pipe, Manifold		Appelez-nous	-
19	8272948		Harness, Igniter (incl. Switches)		Appelez-nous	-
21	WP3186491		Igniter, Bake/brl   (Replaces: 3186491)				$ 217.51
22	W11684507		Screw   (Replaces: 3196385)				$ 14.27
23	3196471		Lp Conversion Kit (nat To Lp)		Appelez-nous	-
23	3186497		Tubing (regulator To Manifold)		Appelez-nous	-
23	814391		Spud Kit-set Of 4 (lp To Nat)		Appelez-nous	-
