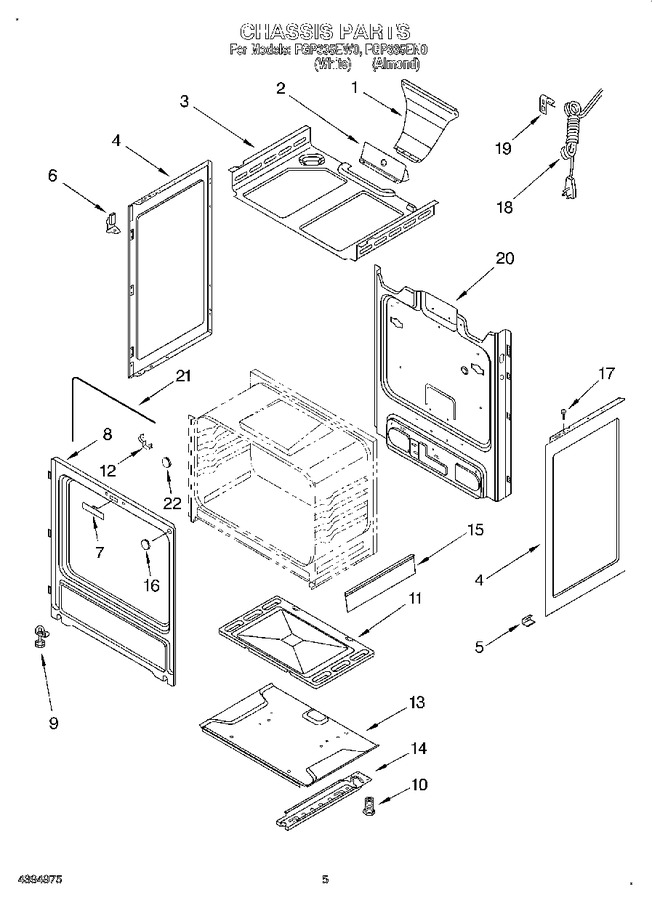

04 - Chassis


05 - Oven And Broiler


06 - Door, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11457094		Flue Box   (Replaces: 3195727)				$ 157.80
1	WP3196557		Screw (3)   (Replaces: 3196537)			Immediately	$ 7.95
2	WP8272747		Shield, Flue   (Replaces: 3195826)				$ 74.51
2	W11233072		Screw, (2)   (Replaces: 3196178)			Immediately	$ 14.72
3	3195806		Burner Box		Appelez-nous	-
3	WP98008545		Screw (2)   (Replaces: 3196179)				$ 18.60
4	WP98008545		Panel, Side (2) (screw (4))   (Replaces: 3196179)				$ 18.60
4	W11233072		Panel, Side (2) (screw (4))   (Replaces: 3196178)			Immediately	$ 14.72
4	3186074		Panel, Side (2) (almond)		Appelez-nous	-
4	3186073		Panel, Side (2) (white)		Appelez-nous	-
4	W11169708		Panel, Side (2) (screw (3))   (Replaces: 3196560)				$ 13.36
5	3196576		Clip, Panel (6)		Appelez-nous	-
6	W11233072		Brkt, Manifold Mtg (screw (4))   (Replaces: 3196178)			Immediately	$ 14.72
6	3186405		Brkt, Manifold Mtg (left Hand)		Appelez-nous	-
6	3186406		Brkt, Manifold Mtg (right Hand)		Appelez-nous	-
7	3196072		Plug, Frame		Appelez-nous	-
8	3186183		Frame, Front		Appelez-nous	-
8	W11233072		Screw (2)   (Replaces: 3196176)			Immediately	$ 14.72
9	W11233072		Screw, (2)   (Replaces: 3196178)			Immediately	$ 14.72
9	WP3196037		Foot, Front (2)   (Replaces: 3196037)				$ 87.12
10	WPW10058460		Foot, Rear (2)   (Replaces: 312701)			Immediately	$ 8.24
11	W11730226		Bottom, Oven   (Replaces: 3195097)				$ 231.05
11	3196152		Screw (2)				$ 8.99
12	98005642		Clip, Bulb (2)   (Replaces: 313382)			Immediately	$ 87.08
13	3186056		Baffle, Base		Appelez-nous	-
13	W11233072		Screw (3)   (Replaces: 3196178)			Immediately	$ 14.72
14	W11818353		Rail, Base (2)   (Replaces: 3186055)				$ 62.66
14	WP3196557		Screw (6)   (Replaces: 3196537)			Immediately	$ 7.95
15	3196070		Shield, Lower		Appelez-nous	-
15	W11233072		Screw (4)   (Replaces: 3196178)			Immediately	$ 14.72
16	308535		Plug Button		Appelez-nous	-
17	238614		Bumper (2)   (Replaces: 3195809)				$ 84.79
18	W11582239		Cord, Power   (Replaces: 3196260)				$ 17.59
19	W11244557		Screw (2)   (Replaces: 3196173)				$ 14.29
19	549193		Clamp, Cord   (Replaces: 3196256)				$ 14.06
20	W11233072		Screw (6)   (Replaces: 3196178)			Immediately	$ 14.72
20	3186117		Back, Main		Appelez-nous	-
21	W11542153		Seal, Oven   (Replaces: 3186152)			Immediately	$ 50.20
22	3195927		Tie, Insulation		Appelez-nous	-
22	W11688737		Insulation, Back   (Replaces: 3195990)				$ 122.73
22	3196440		Plug, Button (2)		Appelez-nous	-
22	WPW10208653		Insulation, Wrap   (Replaces: 3195038)			Immediately	$ 55.47
