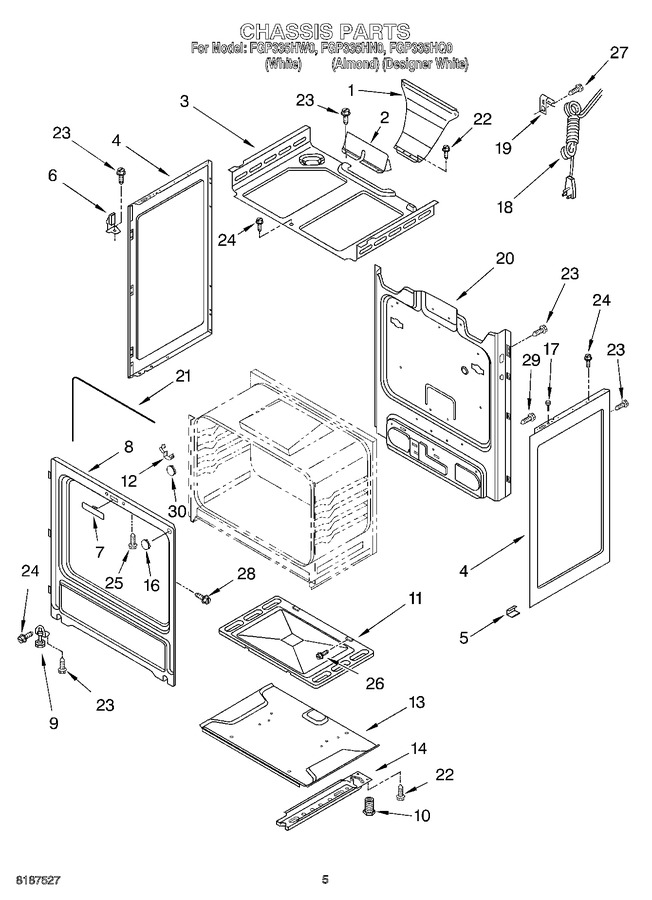

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11457094 | Flue Box (Replaces: 3195727) |
|
$ 157.80 | |||||
| 2 | WP8272747 | Shield, Flue (Replaces: 8272747) |
|
$ 74.51 | |||||
| 3 | 8053503 | Burner Box |
|
- | |||||
| 4 | WPW10575396 | Panel, Side (2) (white-textured) (Replaces: 8053830) |
|
$ 148.71 | |||||
| 4 | 8053831 | Panel, Side (2) (almond-textured) |
|
- | |||||
| 5 | 3196576 | Clip, Panel (6) |
|
- | |||||
| 6 | 3186405 | Brkt, Manifold Mtg (left Hand) |
|
- | |||||
| 6 | 3186406 | Brkt, Manifold Mtg (right Hand) |
|
- | |||||
| 7 | 3196072 | Plug, Frame |
|
- | |||||
| 8 | N/A | Frame, Front (not Serviced) |
|
- | |||||
| 9 | WP3196037 | Foot, Front (2) (Replaces: 3196037) |
|
$ 87.12 | |||||
| 10 | WPW10058460 | Foot, Rear (2) (Replaces: 312701) |
|
Immediately | $ 8.24 | ||||
| 11 | W11730226 | Bottom, Oven (Replaces: 3195097) |
|
$ 231.05 | |||||
| 12 | 98005642 | Clip, Bulb (2) (Replaces: 313382) |
|
Immediately | $ 87.08 | ||||
| 13 | 3186056 | Baffle, Base |
|
- | |||||
| 14 | W11818353 | Rail, Base (2) (Replaces: 8053335) |
|
$ 62.66 | |||||
| 16 | 308535 | Plug Button |
|
- | |||||
| 17 | 238614 | Bumper (2) (Replaces: 3195809) |
|
$ 84.79 | |||||
| 18 | W11582239 | Cord, Power (Replaces: 8054037) |
|
$ 17.59 | |||||
| 19 | 549193 | Clamp, Cord (Replaces: 3196256) |
|
$ 14.06 | |||||
| 20 | 8272921 | Back, Main |
|
- | |||||
| 21 | W11542153 | Seal, Oven (Replaces: 3186152) |
|
Immediately | $ 50.20 | ||||
| 22 | WP3196557 | Screw (Replaces: 3196537) |
|
Immediately | $ 7.95 | ||||
| 23 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 14.72 | ||||
| 24 | WP98008545 | Screw (Replaces: 3196179) |
|
$ 18.60 | |||||
| 25 | W11233072 | Screw (Replaces: 3196176) |
|
Immediately | $ 14.72 | ||||
| 26 | 3196152 | Screw |
|
$ 8.99 | |||||
| 27 | W11244557 | Screw (Replaces: 3196173) |
|
$ 14.29 | |||||
| 28 | WP7101P246-60 | Screw (Replaces: 3196177) |
|
$ 8.24 | |||||
| 29 | WP3196183 | Screw (back/regulator) (Replaces: 3196183) |
|
Immediately | $ 8.18 | ||||
| 30 | W11688737 | Insulation, Back (Replaces: 8272614) |
|
$ 122.73 | |||||
| 30 | 3196440 | Button, Plug (round 25/32`` (2)) |
|
- | |||||
| 30 | 8054083 | Button, Plug (oval (1)) |
|
- | |||||
| 30 | WPW10208653 | Insulation, Wrap (Replaces: 8272617) |
|
Immediately | $ 55.47 | ||||
| 30 | 3195927 | Tie, Insulation |
|
- |
