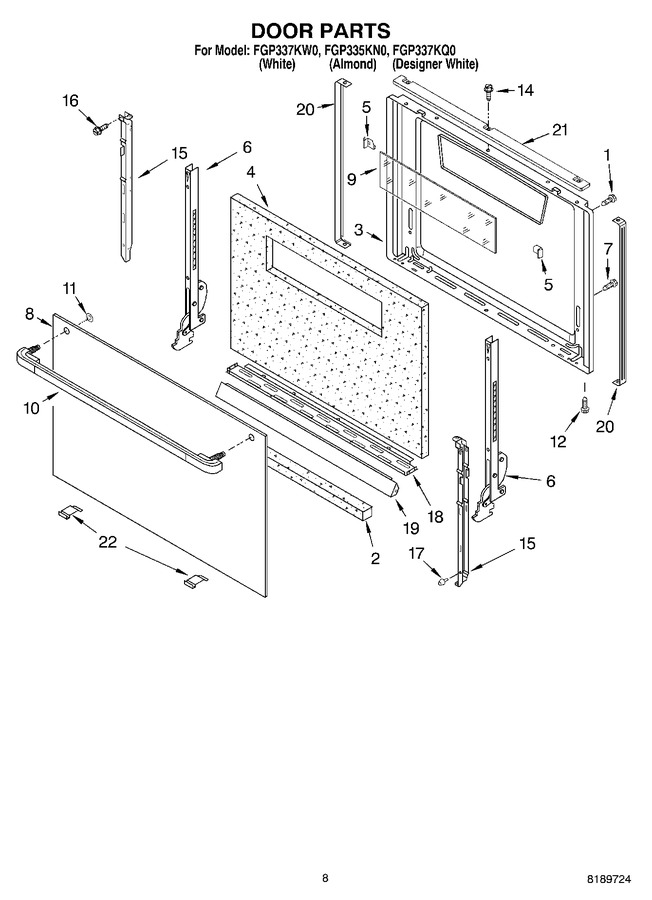

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP98004218		Screw   (Replaces: 98004218)				$ 8.62
2	98007185		Insulation, Top		Appelez-nous	-
3	98010182		Liner, Door		Appelez-nous	-
4	98006753		Insulation, Door		Appelez-nous	-
5	98004953		Clip, Glass (right)		Appelez-nous	-
5	98004952		Clip, Glass (left)		Appelez-nous	-
6	98004734		Hinge, Door (2)		Appelez-nous	-
7	W11206744		Screw   (Replaces: 98008699)				$ 14.23
8	98005357		Glass, Door (white)		Appelez-nous	-
8	98005328		Glass, Door (almond)		Appelez-nous	-
9	98004042		Glass, Inner		Appelez-nous	-
10	WP98005318		Handle, Oven Door (white)   (Replaces: 98005318)				$ 205.50
10	WP98005317		Handle, Oven Door (black)   (Replaces: 98005317)				$ 196.65
11	WP98004650		Nut, Push   (Replaces: 98004650)				$ 7.30
12	WP59002061		Screw   (Replaces: 98004993)				$ 8.18
14	WP3400832		Screw, Black   (Replaces: 98006726)			Immediately	$ 8.18
14	3196166		Screw, White   (Replaces: 98006727)				$ 7.36
15	98004564		Retainer (right)		Appelez-nous	-
15	98004629		Retainer (left)		Appelez-nous	-
16	WP3400805		Screw   (Replaces: 98004219)				$ 7.55
17	98004227		Bumper				$ 22.09
18	98004938		Retainer, Top		Appelez-nous	-
19	98004965		Retainer, Bottom		Appelez-nous	-
20	WP98006793		Trim, Door Side (black)   (Replaces: 98006793)				$ 136.54
20	98006794		Trim, Door Side (white)		Appelez-nous	-
21	98006884		Top Trim, Door (black)		Appelez-nous	-
21	98006885		Trim, Door Top (white)		Appelez-nous	-
22	814381		Pin Kit-dr Removal				$ 11.28
22	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 18.81
22	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
22	242820		Wire (14 Ga. 150 C Black)		Appelez-nous	-
22	6610240		Harness, Clock		Appelez-nous	-
22	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 40.12
22	285006		Paint, Spray 13 Oz. (black)				$ 59.89
22	350942		Primer (white)   (Replaces: 206922)				$ 94.14
22	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
22	978883		Almond (uncut)		Appelez-nous	-
22	241430		Foil, Aluminum Oven (18`` X 25`)				$ 20.65
22	98007059		Anti-tip Kit		Appelez-nous	-
22	350956		Paint, Spray 13 Oz. (almond)				$ 54.01
22	WP98010187		Trim, Lower Door (black)   (Replaces: 98010187)				$ 97.20
22	98010185		Trim, Lower Door (white)				$ 41.41
22	242828		Wire (12 Ga. 150 C Black)		Appelez-nous	-
22	242821		Wire (14 Ga. 150 C Blue)		Appelez-nous	-
22	242822		Wire (14 Ga. 150 C Brown)		Appelez-nous	-
22	242830		Wire (14 Ga. 200 C Brown)		Appelez-nous	-
22	242823		Wire (14 Ga. 150 C Green)		Appelez-nous	-
22	242824		Wire (14 Ga. 150 C Orange)		Appelez-nous	-
22	242829		Wire, Red 12 Ga. 150~c		Appelez-nous	-
22	242825		Wire (14 Ga. 150 C Red)		Appelez-nous	-
22	242831		Wire (14 Ga. 200 C Red)				$ 342.23
22	242826		Wire, White 14 Ga. 150~c		Appelez-nous	-
22	242827		Wire (14 Ga. 150 C Yellow)		Appelez-nous	-
22	242832		Wire, Yellow 14 Ga. 200~c		Appelez-nous	-
22	799832		Kit. Porcelain Repair (white)		Appelez-nous	-
22	8212471		Touch-up Self-clean(1/2 Pt)   (Replaces: 242756)			Immediately	$ 87.22
22	261582		Grease		Appelez-nous	-
22	WPW10208653		Insulation, Fiberglass (1-1/2`` X 24`` X 120``)   (Replaces: 261514)			Immediately	$ 55.47
22	WPW10208653		Insulation, Fiberglass (2-1/2`` X 22`` X 120``)   (Replaces: 240132)			Immediately	$ 55.47
22	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 51.75
22	W11582239		Cord, Power   (Replaces: 98005822)				$ 17.59
22	98005561		Harness, Switch		Appelez-nous	-
22	98005549		Harness, T-stat		Appelez-nous	-
