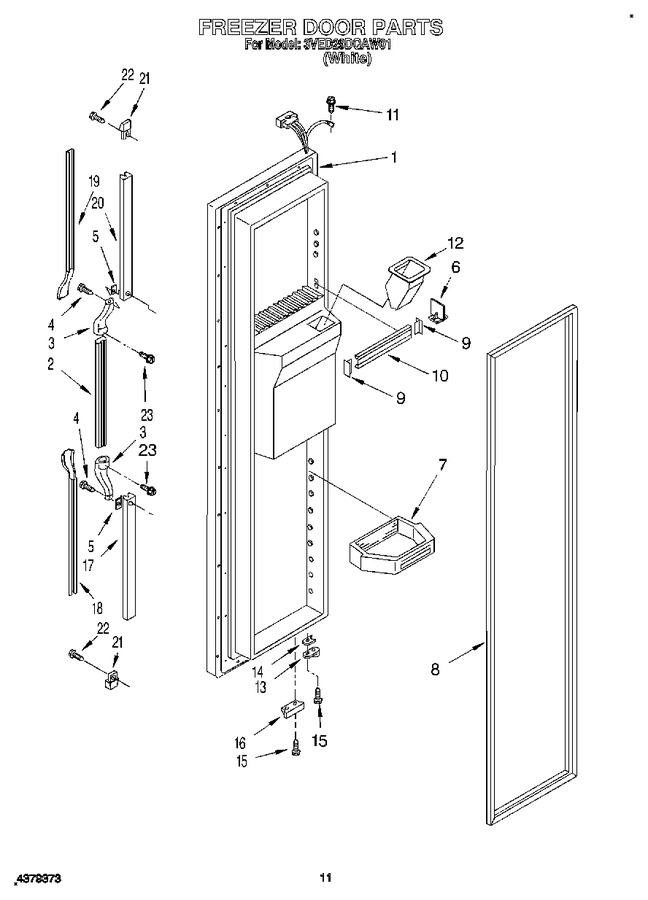

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2167320		Freezer Door (includes No.8 And Dispenser Front Parts)		Appelez-nous	-
2	1124713		Handle, Center		Appelez-nous	-
3	1119359		End Cap (2)		Appelez-nous	-
4	WPW10141645		Screw   (Replaces: 489084)				$ 7.67
5	935075		Shim, End Cap (2)		Appelez-nous	-
6	1123293		Divider, Shelf		Appelez-nous	-
8	2159074		Door Gasket, Magnetic (service)   (Replaces: 2159078)				$ 310.19
9	WP2156006		Plug-trim   (Replaces: 2156006)			Immediately	$ 12.18
9	2150137		Shelf Bin (4)		Appelez-nous	-
10	2159192		Trim, Door Shelf		Appelez-nous	-
11	WP488234		Screw   (Replaces: 488889)				$ 6.74
12	2156145		Chute, Ice		Appelez-nous	-
13	4318165		Door Closer, Upper Cam   (Replaces: 986758)			Immediately	$ 27.36
14	WP1104787		Shim, Door Closer   (Replaces: 1104787)				$ 7.58
15	WP489069		Screw   (Replaces: 488938)			Immediately	$ 7.86
16	2157611		Bracket, Door Stop		Appelez-nous	-
17	1119360		Retainer, Insert		Appelez-nous	-
18	1119361		Insert, Handle		Appelez-nous	-
19	1119373		Insert, Handle		Appelez-nous	-
20	1119372		Retainer, Insert		Appelez-nous	-
21	2156220		End Cap (2)		Appelez-nous	-
22	489075		Screw		Appelez-nous	-
23	489022		Screw		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
