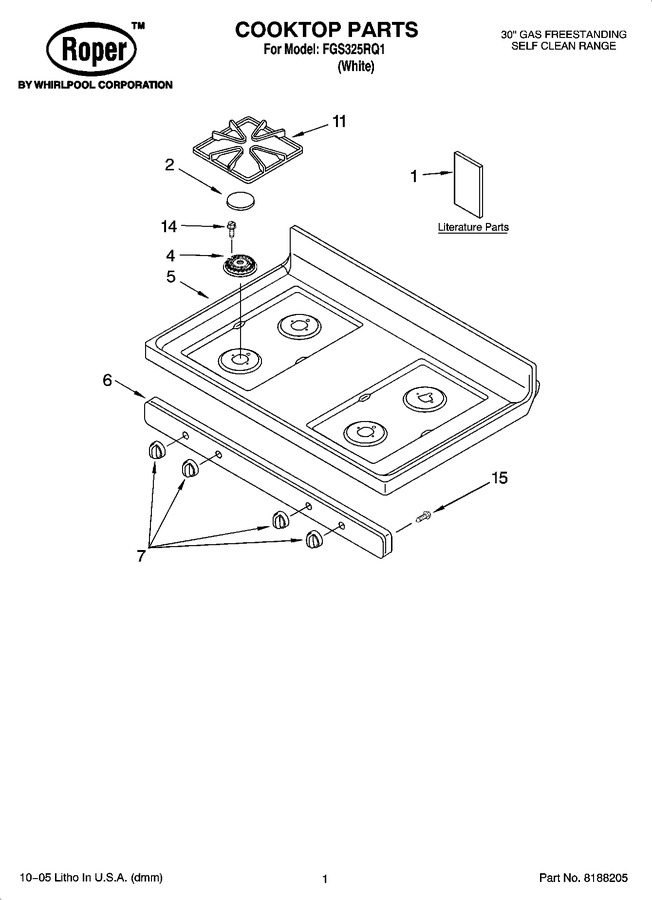

01 - Cooktop Parts
02 - Control Panel Parts
03 - Manifold Parts
04 - Chassis Parts
05 - Broiler Parts
06 - Door Parts, Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 9758657 | Installation Instructions Anti-tip Template |
|
- | |||||
| 1 | 9757142 | Anti-tip Template (english/spanish) |
|
- | |||||
| 1 | 9757143 | Literatrure Parts (english/french) |
|
- | |||||
| 1 | 9762360 | Owner`s Manual |
|
- | |||||
| 1 | 9755996 | Tech Sheet |
|
- | |||||
| 1 | 3191638 | Safer Cooking Tips |
|
- | |||||
| 2 | WP3191903 | Cap, Burner Large (3) (grey Small (1)) (Replaces: 3191903) |
|
$ 191.50 | |||||
| 2 | 3191899 | Cap, Burner Large (3) (grey) |
|
$ 31.21 | |||||
| 4 | 4455979 | Burner (rr) |
|
$ 28.52 | |||||
| 4 | WP4455980 | Burner (lf - Lr - Rf) (Replaces: 4455980) |
|
$ 65.21 | |||||
| 5 | 8272251 | Cooktop (white) |
|
- | |||||
| 6 | 9761904 | Panel, Manifold (white) |
|
- | |||||
| 7 | WP8273104 | Knob, Burner (4) (white) (Replaces: 8273104) |
|
Immediately | $ 17.99 | ||||
| 11 | 8053391 | Grate, Burner (4) (grey) |
|
$ 242.28 | |||||
| 14 | WP3368921 | Screw (Replaces: 3400701) |
|
Immediately | $ 8.56 | ||||
| 15 | WP3196557 | Screw (Replaces: 3196557) |
|
Immediately | $ 7.95 |
