Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 3186191 Endcap (right Hand White) Appelez-nous -
1 3186190 Endcap (left Hand White) Appelez-nous -
2 8523408 Support, Endcap (left Hand) Appelez-nous -
2 8523409 Support, Endcap (right Hand) Appelez-nous -
3 9761949 Panel, Backguard (white) Appelez-nous -
4 W10276642 Screw   (Replaces: 4449746) Special Order $ 6.41

5 WPW10331686 Module, Spark   (Replaces: 9758080) In-Stock Immediately $ 393.86

6 8053505 Shield, Lower Heat Special Order $ 165.89

7 8523412 Bracket, Support Special Order $ 167.90

8 9756301 Cover, Upper Special Order $ 51.01

9 8053910 Shield, Heat Appelez-nous -
10 8273132 Cover, Lower Appelez-nous -
11 3149360 Switch, Rocker (white) Special Order $ 89.01

12 6610460 Control, Range (white) Special Order $ 353.39

13 W11233072 Screw   (Replaces: 3196178) In-Stock Immediately $ 14.72

15 WP3196557 Screw   (Replaces: 3196169) In-Stock Immediately $ 7.95

19 WP8273564 Clip   (Replaces: 8273564) Special Order $ 12.66


    View Diagram in Separate Window     Print Icon   Print Part List

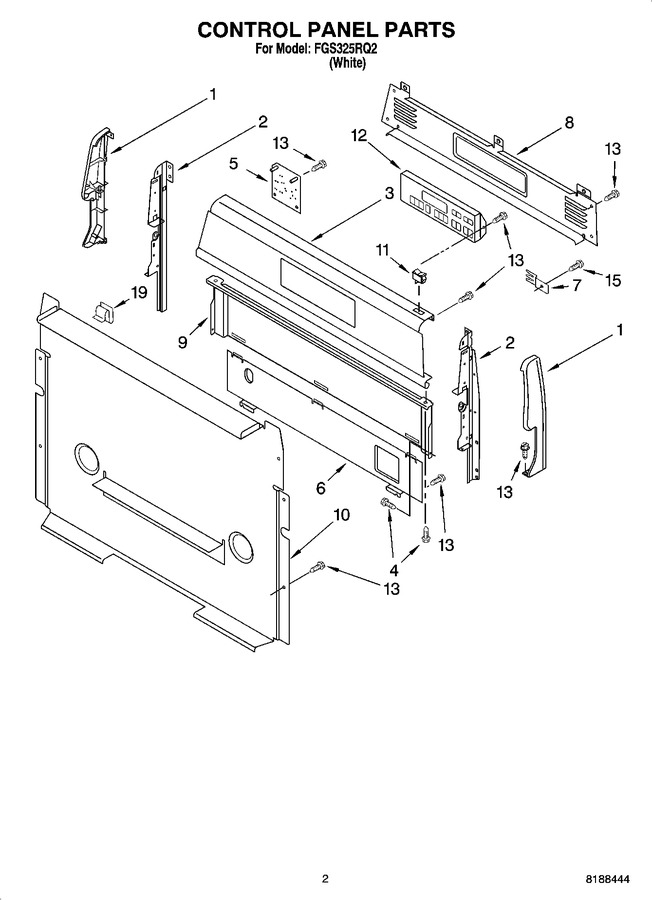

Diagram for FGS325RQ2
