SELECT A DIAGRAM

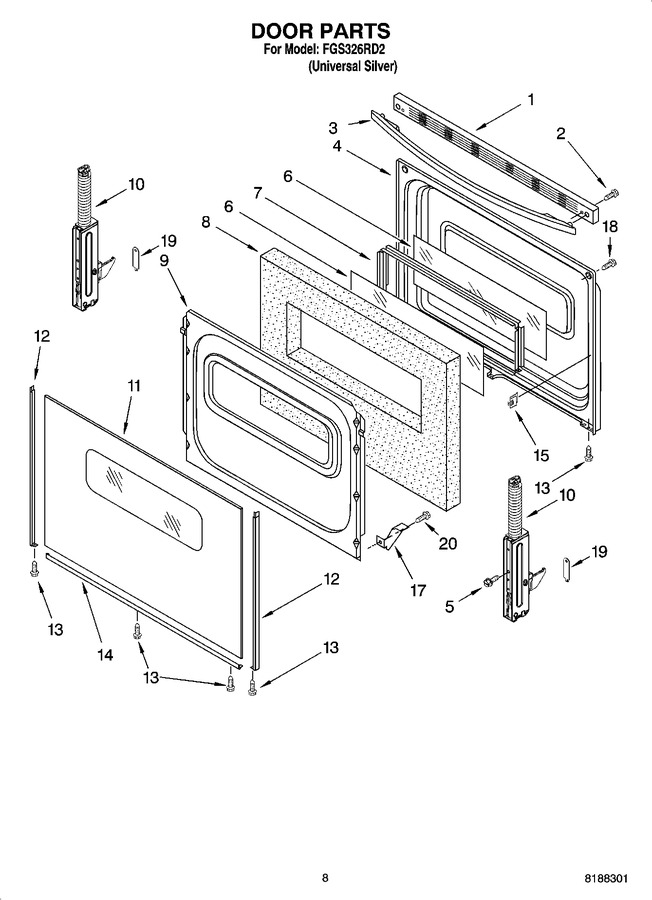

01 - Cooktop Parts


02 - Control Panel Parts


03 - Manifold Parts


04 - Chassis Parts


05 - Broiler Parts


06 - Door Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10016420		Trim, Top		Appelez-nous	-
2	WP3196164		Screw   (Replaces: 3196164)			Immediately	$ 11.03
3	WPW10202217		Handle, Door   (Replaces: 3195922)				$ 270.65
4	WP9761344		Liner, Door   (Replaces: 9761344)			Immediately	$ 372.89
5	3196162		Screw		Appelez-nous	-
6	WP8053948		Glass, Inner   (Replaces: 9758162)				$ 178.28
7	WPW10316950		Frame, Glass   (Replaces: 3186289)			Immediately	$ 90.09
8	WPW10278991		Insulation, Door   (Replaces: 8272618)			Immediately	$ 101.37
9	W11539580		Retainer, Insul.   (Replaces: 9761357)				$ 233.31
10	W10347464		Hinge, Door (2)   (Replaces: 9761496)			Immediately	$ 133.98
11	WPW10118455		Glass, Outer Door   (Replaces: 9756417)			Immediately	$ 332.70
12	W10761014		Trim, Door Side Right Hand (black)   (Replaces: 8523165)			Immediately	$ 72.96
12	W10761018		Trim, Door Side Left Hand (black)   (Replaces: 8523171)			Immediately	$ 53.77
13	W10491985		Screw   (Replaces: 3196160)			Immediately	$ 7.55
14	WP8523180		Trim, Bottom   (Replaces: 8523180)				$ 169.00
15	3196025		Clip, Door Glass				$ 20.10
17	3196794		Bracket-wndw Frame				$ 24.34
18	WP179051		Screw   (Replaces: 3196161)			Immediately	$ 8.42
19	9761517		Clip, Door Mntg (2)				$ 48.11
20	WP3196175		Screw   (Replaces: 3196165)			Immediately	$ 7.55
	N/A		Miscellaneous		Appelez-nous	-
	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 18.81
	9758205		Harness, Wire (main)		Appelez-nous	-
	8524207		Harness, Wire				$ 52.99
	8523599		Harness, Wire (cooktop-spark) Bake / Broil				$ 146.57
	3196896		Clip-wire		Appelez-nous	-
	3400964		Clip, Wire   (Replaces: 3196520)				$ 89.00
	3196696		Clip, Wire		Appelez-nous	-
	16515		Clip, Harness   (Replaces: 313438)				$ 20.53
	W11244557		Screw, Hrns Clip   (Replaces: 3196173)				$ 14.29
	3195927		Tie,wire		Appelez-nous	-
	WP4449743		Screw, Ground   (Replaces: 4449743)				$ 7.55
	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
	814381		Pin Kit-dr Removal   (Replaces: 3196897)				$ 11.28
	350956		Paint, Pressurized Spray (12 Oz.) (almond)				$ 54.01
	242828		Wire (12 Ga. 150 C Black)		Appelez-nous	-
	242821		Wire (14 Ga. 150 C Blue)		Appelez-nous	-
	242822		Wire (14 Ga. 150 C Brown)		Appelez-nous	-
	242830		Wire (14 Ga. 200 C Brown)		Appelez-nous	-
	242823		Wire (14 Ga. 150 C Green)		Appelez-nous	-
	242824		Wire (14 Ga. 150 C Orange)		Appelez-nous	-
	242825		Wire (14 Ga. 150 C Red)		Appelez-nous	-
	285006		Paint, Pressurized Spray 12 Oz.) (superior Black)				$ 59.89
	242831		Wire (14 Ga. 200 C Red)				$ 342.23
	242827		Wire (14 Ga. 150 C Yellow)		Appelez-nous	-
	799832		Kit. Porcelain Repair (white)		Appelez-nous	-
	8212471		Touch-up Self-clean(1/2 Pt)   (Replaces: 242756)			Immediately	$ 87.22
	261582		Grease		Appelez-nous	-
	WPW10208653		Insulation, Fiberglass (1-1/2`` X 24`` X 120``)   (Replaces: 261514)			Immediately	$ 55.47
	WPW10208653		Insulation, Fiberglass (2-1/2`` X 22`` X 120``)   (Replaces: 240132)			Immediately	$ 55.47
	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 51.75
	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 40.12
	350942		Paint, Pressurized Spray (12 Oz.) (primer, White)   (Replaces: 206922)				$ 94.14
	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
	978883		Paint, Bulk (1 Qt.) (almond (uncut))		Appelez-nous	-
	241430		Foil, Aluminum Oven (18`` X 25`)				$ 20.65
	4396923		Pan - Broiler			Immediately	$ 60.71
	W11839019		Anti-tip Kit   (Replaces: W10017440)			Immediately	$ 28.54
