SELECT A DIAGRAM

01 - Cooktop

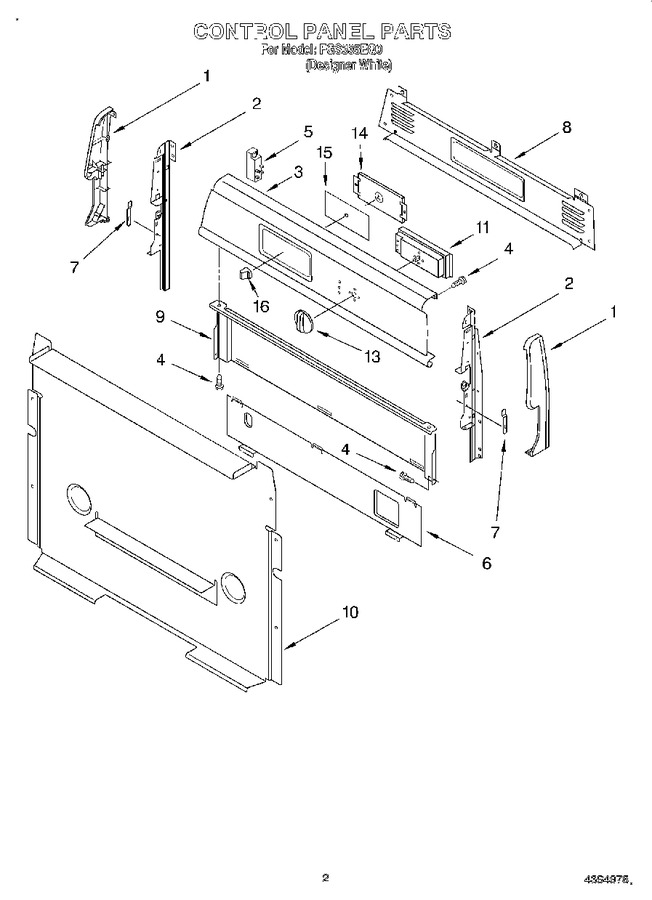

02 - Control Panel


03 - Manifold


04 - Chassis


05 - Broiler


06 - Door, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3195318		Endcap (left Hand)		Appelez-nous	-
1	3195319		Endcap (right Hand)		Appelez-nous	-
2	3186199		Support, Endcap (right Hand)		Appelez-nous	-
2	3186198		Support, Endcap (left Hand)		Appelez-nous	-
3	3195350		Panel, Backguard		Appelez-nous	-
4	W11233072		Screw, (2)   (Replaces: 3196178)			Immediately	$ 14.72
5	3196023		Module, Spark		Appelez-nous	-
5	WPY706189		Screw   (Replaces: 3196427)			Immediately	$ 7.55
6	8053505		Shield, Lower Heat   (Replaces: 3196135)				$ 165.89
6	W11233072		Screw, (2)   (Replaces: 3196178)			Immediately	$ 14.72
7	3196200		Clip, Spring (2)				$ 10.45
8	3195963		Cover, Upper		Appelez-nous	-
8	W11233072		Screw (5)   (Replaces: 3196178)			Immediately	$ 14.72
9	W10276642		Screw (4)   (Replaces: 4449746)				$ 6.41
9	3186187		Shield, Heat		Appelez-nous	-
10	3195964		Cover, Lower		Appelez-nous	-
10	W11233072		Screw (6)   (Replaces: 3196178)			Immediately	$ 14.72
11	3196172		Screw (4)			Immediately	$ 13.47
11	3195185		Control, Oven		Appelez-nous	-
13	3196034		Knob, Thermostat		Appelez-nous	-
14	W11233072		Screw, (2)   (Replaces: 3196178)			Immediately	$ 14.72
14	3169299		Clock, Timer		Appelez-nous	-
15	3148852		Glass, Clock		Appelez-nous	-
16	3169184		Knob, Timer		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
