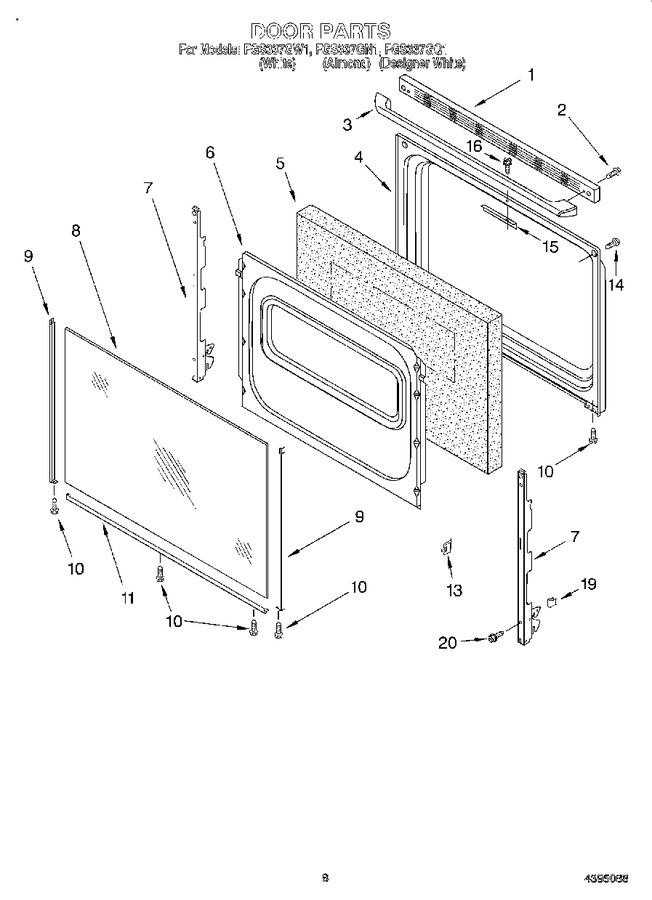

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3196819		Trim, Top (black)		Appelez-nous	-
1	3196821		Trim, Top (white)		Appelez-nous	-
2	WP3196164		Screw   (Replaces: 3196164)			Immediately	$ 11.03
3	WPW10202217		Handle, Door (black)   (Replaces: 3195213)				$ 270.65
3	3195217		Handle, Door (white)		Appelez-nous	-
4	3186294		Liner, Door		Appelez-nous	-
5	3186256		Insulation, Door		Appelez-nous	-
6	W11699790		Retainer, Insul.   (Replaces: 3186298)		Appelez-nous	-
7	8053808		Hinge, Door (2)				$ 78.89
8	3195610		Glass, Outer Door (black)		Appelez-nous	-
8	3196810		Glass, Outer Door (white)		Appelez-nous	-
9	8184858		Trim, Door Side (right Hand-black)   (Replaces: 3195973)				$ 168.85
9	8184858		Trim, Door Side Left Hand (black)   (Replaces: 3195976)				$ 168.85
9	8184859		Trim, Door Side (right Hand White)   (Replaces: 3195971)				$ 170.91
9	8184859		Trim, Door Side (left Hand White)   (Replaces: 3195974)				$ 170.91
10	W10491985		Screw   (Replaces: 3196160)			Immediately	$ 7.55
11	8184859		Trim, Bottom (white)   (Replaces: 3195422)				$ 170.91
11	8184858		Trim, Bottom (black)   (Replaces: 3195424)				$ 168.85
13	3196025		Clip, Door Glass				$ 20.10
14	WP179051		Screw   (Replaces: 3196161)			Immediately	$ 8.42
15	3195914		Bracket, Latch		Appelez-nous	-
16	WP3400832		Screw   (Replaces: 3196168)			Immediately	$ 8.18
19	3196925		Clip, Door Stop (2)				$ 9.06
20	DD81-03523A		Paint, Touch-up 1/2 Oz. (harvest Gold)   (Replaces: 72110)				$ 137.86
20	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 18.81
20	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
20	242820		Wire (14 Ga. 150 C Black)		Appelez-nous	-
20	261890		Harvest Gold		Appelez-nous	-
20	285365		Toast		Appelez-nous	-
20	285366		Paint, Spray (13 Oz.) (platinum)		Appelez-nous	-
20	285006		Paint, Spray 13 Oz. (black)				$ 59.89
20	350942		Primer (white)   (Replaces: 206922)				$ 94.14
20	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
20	978883		Almond (uncut)		Appelez-nous	-
20	261891		Harvest Gold (uncut)		Appelez-nous	-
20	285367		Enamal, Toast (1 Qt. Uncut)		Appelez-nous	-
20	285368		Platinum (uncut)		Appelez-nous	-
20	241430		Foil, Aluminum Oven (18`` X 25`)				$ 20.65
20	8273888A		Anti-tip Kit   (Replaces: 3176830)				$ 32.62
20	WP3196175		Screw   (Replaces: 3196165)			Immediately	$ 7.55
20	242828		Wire (12 Ga. 150 C Black)		Appelez-nous	-
20	242821		Wire (14 Ga. 150 C Blue)		Appelez-nous	-
20	242822		Wire (14 Ga. 150 C Brown)		Appelez-nous	-
20	242830		Wire (14 Ga. 200 C Brown)		Appelez-nous	-
20	242823		Wire (14 Ga. 150 C Green)		Appelez-nous	-
20	242824		Wire (14 Ga. 150 C Orange)		Appelez-nous	-
20	242829		Wire, Red 12 Ga. 150~c		Appelez-nous	-
20	242825		Wire (14 Ga. 150 C Red)		Appelez-nous	-
20	242831		Wire (14 Ga. 200 C Red)				$ 342.23
20	242826		Wire, White 14 Ga. 150~c		Appelez-nous	-
20	242827		Wire (14 Ga. 150 C Yellow)		Appelez-nous	-
20	242832		Wire, Yellow 14 Ga. 200~c		Appelez-nous	-
20	799832		Kit. Porcelain Repair (white)		Appelez-nous	-
20	8212471		Touch-up Self-clean(1/2 Pt)   (Replaces: 242756)			Immediately	$ 87.22
20	261582		Grease		Appelez-nous	-
20	WPW10208653		Insulation, Fiberglass (1-1/2`` X 24`` X 120``)   (Replaces: 261514)			Immediately	$ 55.47
20	WPW10208653		Insulation, Fiberglass (2-1/2`` X 22`` X 120``)   (Replaces: 240132)			Immediately	$ 55.47
20	DD81-03471A		Paint, Touch-up 1/2 Oz. (avocado)   (Replaces: 72109)				$ 60.28
20	DD81-03944A		Paint, Touch-up 1/2 Oz. (coffee)   (Replaces: 72108)				$ 109.25
20	350956		Paint, Spray 13 Oz. (almond)				$ 54.01
20	72112		Paint, (touch-up 1/2 Oz.) (toast)		Appelez-nous	-
20	DD81-03496A		Paint, Touch-up 1/2 Oz. (platinum)   (Replaces: 72113)				$ 117.11
20	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 51.75
20	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 40.12
20	261888		New Avocado		Appelez-nous	-
20	261886		Coffee		Appelez-nous	-
	8053909		Harness, Wire (main)		Appelez-nous	-
	LIT8053366		Instructions, Installation		Appelez-nous	-
	16515		Clip, Harness   (Replaces: 313438)				$ 20.53
	LIT3195945		Installation Instr (templet)		Appelez-nous	-
	LIT8053431		Guide, Use & Care		Appelez-nous	-
	3400964		Clip, Wire   (Replaces: 3196520)				$ 89.00
	3196896		Clip-wire		Appelez-nous	-
	LIT3191638		Safer Cooking Tips		Appelez-nous	-
	LIT8053552		Tech Sheet		Appelez-nous	-
	814381		Pin Kit-dr Removal				$ 11.28
	8053527		Clip, Wire		Appelez-nous	-
