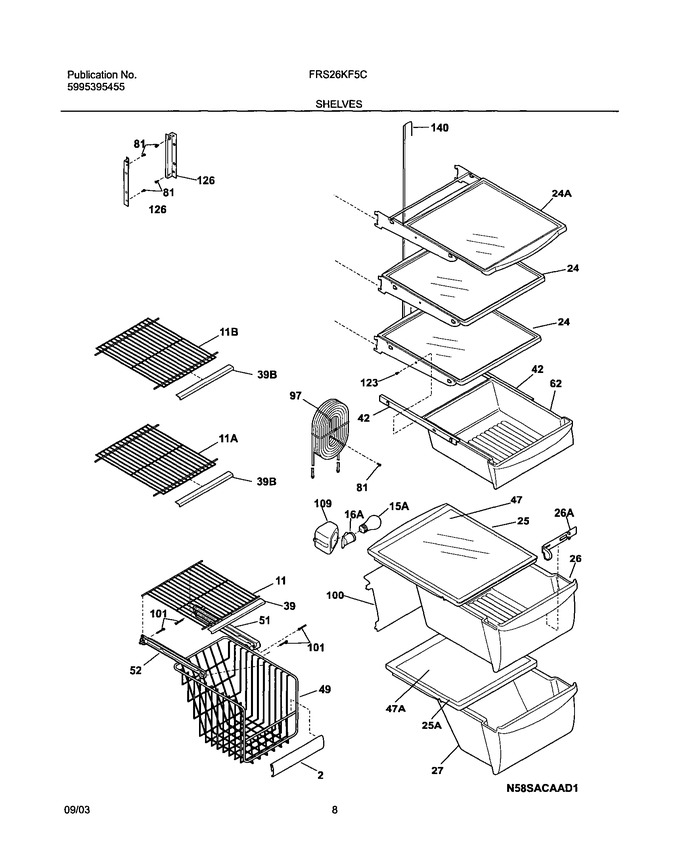

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	240434604		Trim-basket		Appelez-nous	-
11	240338802		Shelf-freezer,flip-up		Appelez-nous	-
24	240355270		Shelf-``spill-safe``,fixed   (Replaces: 240355208)				$ 189.59
25	240350702		Cover-crisper Pan,upper			Immediately	$ 46.58
26	240351061		Pan-crisper,upper   (Replaces: 240351005)			Immediately	$ 122.23
27	240351207		Pan-crisper,lower   (Replaces: 240351206)				$ 193.04
39	240430706		Trim-shelf,11.21`` ,front				$ 81.85
42	240365401		Track,meat Pan Hanger ,lh			Immediately	$ 56.95
42	240356501		Track,meat Pan Hanger ,rh			Immediately	$ 63.00
47	240350649		Insert-pan Cover,glass   (Replaces: 240350633)			Immediately	$ 137.66
49	240530402		Basket-sliding				$ 232.16
51	240343002		Hanger-basket,rh				$ 72.47
52	240343102		Hanger-basket,lh				$ 77.52
62	240342830		Pan-meat   (Replaces: 240342806)				$ 95.54
81	5304455650		Screw   (Replaces: 5308016566)				$ 15.75
97	240545302		Water Tank Assy,coiled Tubing ,front Filter   (Replaces: 240545303)				$ 311.85
100	240326304		Cover-water Tank   (Replaces: 240326302)				$ 81.74
101	218493101		Screw,hex Washer Head `8-18ab X 1-3/4   (Replaces: 218493100)				$ 14.96
109	240351301		Base-crisper Light Socket				$ 15.65
123	215005101		Screw,hanger/rlr Mtg ,8-10 X 0.438   (Replaces: 215005100)				$ 16.54
126	241674402		Channel,auger Mtg ,rh   (Replaces: 218867406)				$ 48.04
126	241674401		Channel,auger Mtg ,lh   (Replaces: 218867405)				$ 52.76
140	240430501		Channel,wtr Tube Cover				$ 108.68
11A	241657512		Shelf-freezer,fixed Wire   (Replaces: 240338702)				$ 18.74
11B	240338704		Shelf-freezer,fixed Wire		Appelez-nous	-
15A	316538904		Light Bulb/lamp,a-15 ,clear ,40 W ,120 V,miniature   (Replaces: 240436702)			Immediately	$ 22.75
24A	240350150		Shelf-``spill-safe``,cantilever ,sliding   (Replaces: 240350108)				$ 196.33
25A	240350903		Cover-crisper Pan,lower   (Replaces: 240350902)				$ 102.21
26A	240362201		Control-humidity				$ 77.18
39B	240430702		Trim-shelf,12.39`` ,front				$ 21.89
47A	240350603		Insert-pan Cover,glass			Immediately	$ 128.36
F16A	240323102		Harness-wiring		Appelez-nous	-
F16A	218906802		Socket-light   (Replaces: 241513901)				$ 19.69
NI	240362101		Clip-slide,cover-crisper				$ 52.25
NI	240349801		Clip-slide,pan-crisper				$ 22.75
