SELECT A DIAGRAM

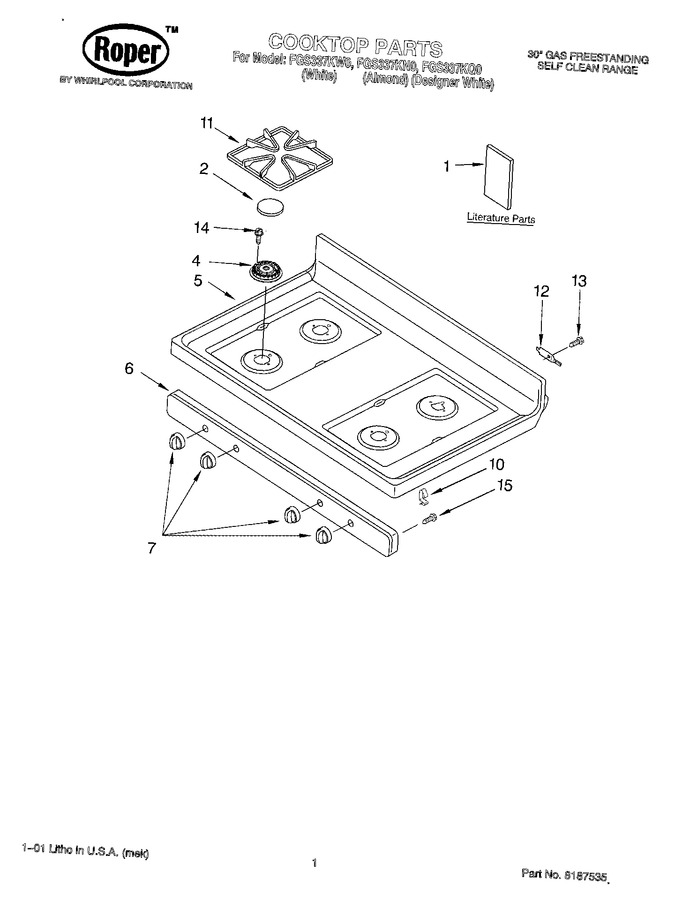

01 - Cooktop, Literature


02 - Control Panel


03 - Manifold


04 - Chassis


05 - Broiler


06 - Door, Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LIT8273169		Literature Parts (instructions, Installation)		Appelez-nous	-
1	LIT3195945		Literature Parts (installation Instr (template))		Appelez-nous	-
1	LIT8522407		Literature Parts (guide, Use & Care)		Appelez-nous	-
1	LIT8273173		Literature Parts (tech Sheet)		Appelez-nous	-
1	LIT3191638		Safer Cooking Tips		Appelez-nous	-
2	WP3191901		Cap, Burner (black (lf - Lr - Rf))   (Replaces: 3191901)				$ 128.91
2	WP3191898		Cap, Burner (black (rr))   (Replaces: 3191898)				$ 71.00
4	8273216		Burner (rr)		Appelez-nous	-
4	WP4455980		Burner (lf, Lr, Rf)   (Replaces: 8273215)				$ 65.21
5	8272251		Cooktop (white)		Appelez-nous	-
5	8272252		Cooktop (almond)		Appelez-nous	-
6	8273034		Panel, Manifold (black)		Appelez-nous	-
6	8273032		Panel, Manifold (white)		Appelez-nous	-
7	8273119		Knob, Burner (4) (white)		Appelez-nous	-
7	8273118		Knob, Burner (4) (black)		Appelez-nous	-
10	3195813		Clip, Cooktop (2)		Appelez-nous	-
11	WPW10268483		Grate, Burner (4)   (Replaces: 8053458)				$ 140.02
12	WP3195060		Hinge, Cooktop (2)   (Replaces: 3195060)			Immediately	$ 13.18
13	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 14.72
14	WP3400016		Screw   (Replaces: 3400016)				$ 8.39
15	WP3196557		Screw   (Replaces: 3196557)			Immediately	$ 7.95
