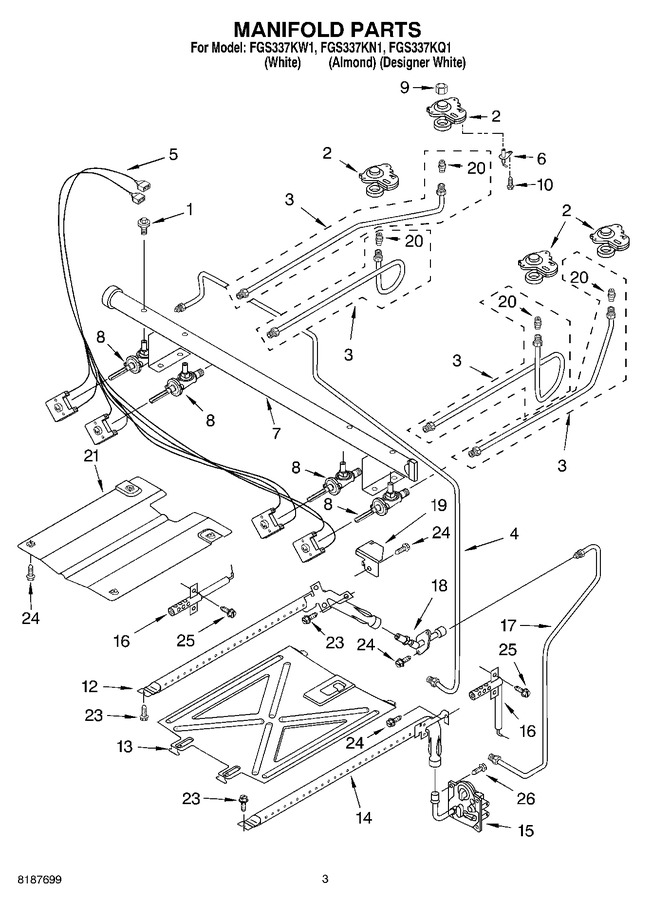

03 - Manifold
04 - Chassis
05 - Broiler
06 - Door
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8273096 | Screw, Valve |
|
$ 5.27 | |||||
| 2 | 8273701 | Burner Base (small (1)) |
|
$ 28.60 | |||||
| 2 | WP8273700 | Burner Base (large (4)) (Replaces: 8273700) |
|
$ 93.41 | |||||
| 3 | 8273698 | Tubing, Burner W/orifice (left Rear) |
|
- | |||||
| 3 | 8273697 | Tubing, Burner W/orifice (right Rear) |
|
$ 78.99 | |||||
| 3 | 8273695 | Tubing, Burner W/orifice (right Front) |
|
$ 76.19 | |||||
| 3 | 8273699 | Tubing, Burner W/orifice (left Front) |
|
- | |||||
| 4 | 8523402 | Tubing (manifold To Regulator) |
|
- | |||||
| 5 | 8523405 | Harness, Igniter (w/switches) |
|
- | |||||
| 6 | WP8523793 | Electrode (4) (Replaces: 8523793) |
|
Immediately | $ 40.17 | ||||
| 7 | 8523407 | Pipe, Manifold |
|
- | |||||
| 8 | 8273056 | Valve (4) |
|
- | |||||
| 9 | 8273060 | Nut (4) |
|
$ 5.27 | |||||
| 10 | WP8273062 | Screw (4) (Replaces: 8273062) |
|
Immediately | $ 7.91 | ||||
| 12 | WP8054078 | Burner, Broiler (Replaces: 8054078) |
|
$ 227.96 | |||||
| 13 | 8053970 | Spreader, Flame (oven) |
|
- | |||||
| 14 | 8190618 | Burner, Bake (Replaces: 8054077) |
|
$ 198.64 | |||||
| 15 | WPW10293048 | Valve, Gas (Replaces: 8054079) |
|
Immediately | $ 442.66 | ||||
| 16 | 8190618 | Igniter (bake) (Replaces: 8054130) |
|
$ 198.64 | |||||
| 16 | WP8054129 | Igniter (broil) (Replaces: 8054129) |
|
Immediately | $ 137.14 | ||||
| 17 | 8272222 | Tubing (broiler Fitting To Valve) |
|
$ 97.58 | |||||
| 18 | 3186489 | Fitting, Broiler |
|
$ 64.58 | |||||
| 19 | 8272403 | Cover, Igniter |
|
- | |||||
| 20 | WP8273065 | Orifice, Burner (rf) (Replaces: 8273065) |
|
$ 90.58 | |||||
| 20 | WP8273067 | Orifice, Burner (rr) (Replaces: 8273067) |
|
$ 90.87 | |||||
| 20 | WP8273066 | Orifice, Burner (lr) (Replaces: 8273066) |
|
$ 90.87 | |||||
| 20 | 8273063 | Orifice, Burner (lf) |
|
- | |||||
| 21 | W10137062 | Spreader, Flame (broiler) (Replaces: 8053262) |
|
- | |||||
| 23 | 3196265 | Screw |
|
- | |||||
| 24 | W11233072 | Screw (Replaces: 3196176) |
|
Immediately | $ 14.02 | ||||
| 25 | W11684507 | Screw (Replaces: 3196385) |
|
$ 13.59 | |||||
| 26 | 8273175 | Spuds, Lp Gas (kit Of 4) |
|
- | |||||
| 26 | WP3400861 | Screw (Replaces: 3400856) |
|
$ 7.95 |
