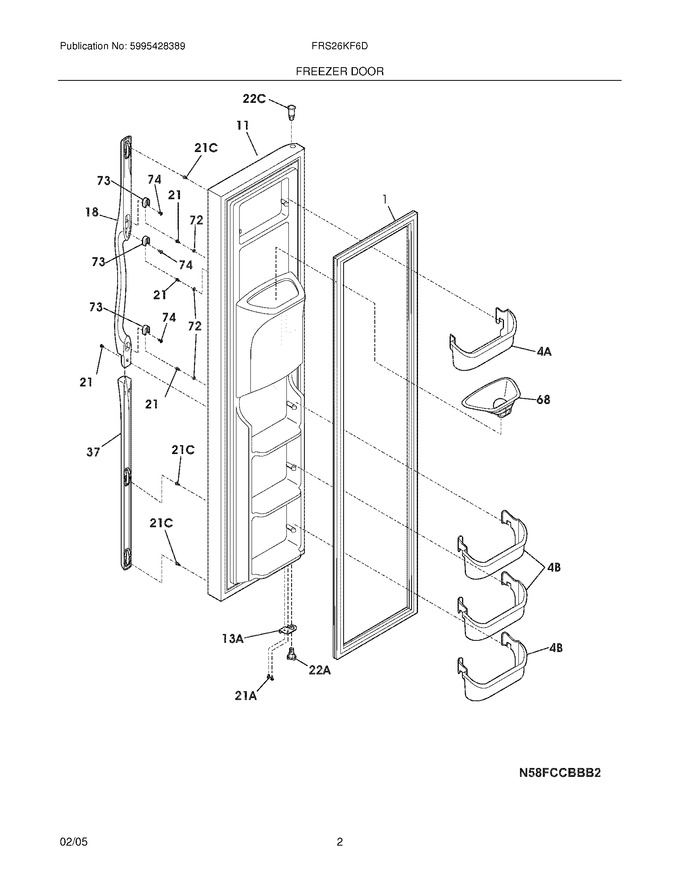

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	240451803		Panel-frzr Door,white ,complete Assy		Appelez-nous	-
18	240359106		Handle-door,white		Appelez-nous	-
21	218781101		Screw,pan Head ,8-18 X 0.625   (Replaces: 218781100)				$ 17.33
37	240359201		Trim-handle,30.13`` ,white ,lower		Appelez-nous	-
68	241525101		Chute-ice				$ 91.39
72	240421701		Button-handle Mtg,dovetail				$ 14.81
73	218396700		Block-handle Mtg, Dovetail			Immediately	$ 50.40
74	215503203		Screw,cr Pan Hd `10-16 X 0.500   (Replaces: 215503200)			Immediately	$ 7.88
13A	5303918455		Door Stop,white,frzr   (Replaces: 240537102)				$ 157.82
21A	5304455650		Screw,hex Washer Head ,8-15a X 0.625 ,   (Replaces: 5308016566)				$ 15.75
21C	240521302		Screw,no.8-18 X 3/4				$ 8.19
22A	242000501		Bearing-hinge(frz),closer   (Replaces: 240328202)				$ 7.93
22C	240328402		Bearing-hinge,natural ,upper				$ 22.05
4A	240334201		Bin-door,frzr-upper				$ 74.68
4B	240351601		Bin-door			Immediately	$ 65.26
F1	241569802		Gasket-frzr Door,white ,magnetic		Appelez-nous	-
NI	240545201		Connector-water,straight   (Replaces: 240352102)				$ 81.90
NI	240470401		Connector-amp		Appelez-nous	-
NI	240552102		Harness-wiring,door				$ 77.60
NI	5303918256		Dispenser Heater Kit				$ 526.84
