View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM

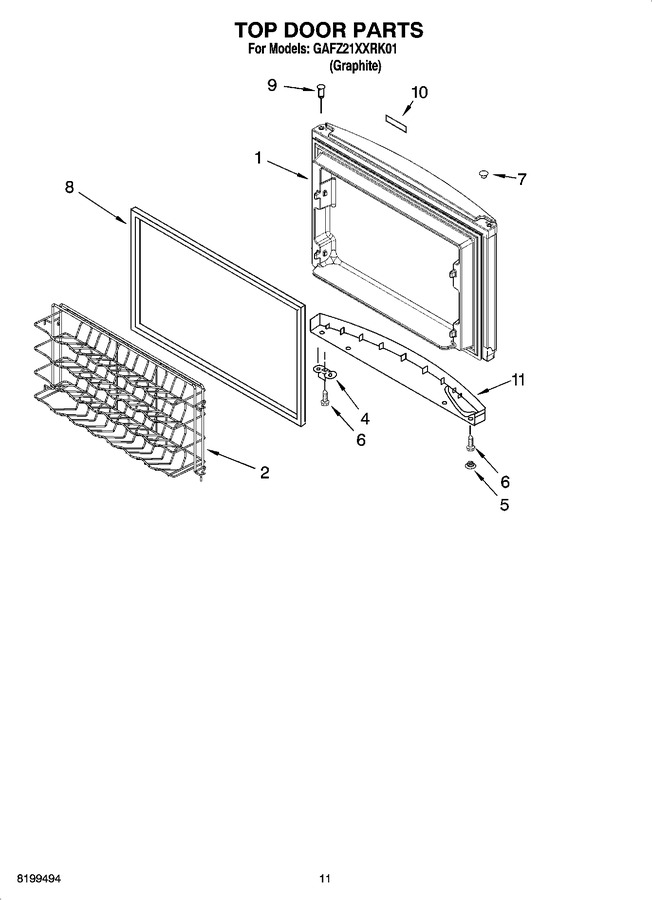

01 - Cabinet Parts
02 - Liner Parts
03 - Shelf Parts
04 - Bottom Door Parts
05 - Unit Parts
06 - Top Door Parts, Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2253083 | Top Door (includes 8 & 9) |
|
- | |||||
| 2 | 2253006 | Rack, Can |
|
- | |||||
| 4 | W11745278 | Bracket, Door Stop (Replaces: 2189202) |
|
Immediately | $ 13.37 | ||||
| 5 | 2204839 | Hole Plug, Endcap |
|
- | |||||
| 6 | WP681249 | Screw, 8-18 X 3/4 (Replaces: 489276) |
|
Immediately | $ 8.25 | ||||
| 7 | WP2212651 | Hole Plug Hinge Sleeve (Replaces: 2212651) |
|
Immediately | $ 24.21 | ||||
| 8 | 2177310 | Door Gasket, Magnetic (Replaces: 2214969) |
|
$ 335.31 | |||||
| 9 | WP2183003 | Thimble (Replaces: 2183003) |
|
$ 8.14 | |||||
| 10 | 2253774 | Nameplate |
|
- | |||||
| 11 | 2253076 | Handle |
|
- | |||||
| N/A | Torx Screw Wrench |
|
- | ||||||
| 72032 | Paint, Touch-up 1/2 Oz. (black) |
|
Immediately | $ 18.69 | |||||
| 350930 | Paint, Pressurized Spray (12 Oz.) White |
|
Immediately | $ 40.12 | |||||
| 8171357 | Enamel, Graphite (12 Oz. Spray Can) |
|
$ 86.43 | ||||||
| 4392899 | Brush Touch-up Kit (bisque) |
|
Immediately | $ 27.77 | |||||
| 80051 | Brush Touch-up Kit (graphite) |
|
$ 7.64 | ||||||
| 799344 | Paint, Bulk (1 Qt.) (white) (uncut) |
|
$ 237.46 | ||||||
| 4392900 | Paint, Bulk (1 Qt.) (biscuit) (uncut) |
|
- | ||||||
| 799340 | Enamel, Black (1 Qt. Uncut) |
|
- | ||||||
| 8171358 | Enamel, Graphite (1 Qt. Uncut) |
|
- | ||||||
| 833938 | Kit, Terminal Connector |
|
$ 8.47 | ||||||
| 1117510 | Torx Key |
|
$ 5.84 | ||||||
| 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 12.30 | |||||
| 212643 | Sealer, Gum (4 Feet) |
|
Immediately | $ 96.42 | |||||
| 479502 | Tape, Vinyl 3/4 X 108``) |
|
$ 66.77 | ||||||
| 876370 | Kit, Insulation (2 Pcs. 3`` X 24 `` X 48``) |
|
$ 243.14 | ||||||
| 876029 | Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``) |
|
- | ||||||
| 511873 | Paint, Touch-up 1/2 Oz. (white Porcelain) |
|
$ 51.75 | ||||||
| 606755 | Bag, Insulation (36-5/8`` X 46``) |
|
$ 82.37 | ||||||
| 799833 | Kit, Evaporator Repair (aluminum Epoxy) |
|
- | ||||||
| 799832 | Kit. Porcelain Repair (white) |
|
- | ||||||
| 350942 | Primer, White (12 Oz. Spray Can) |
|
$ 94.14 | ||||||
| 285006 | Enamel, Black (12 Oz. Spray Can) (Replaces: 350939) |
|
$ 59.89 | ||||||
| 4392901 | Paint, Pressurized Spray (12oz.) (biscuit) |
|
- | ||||||
| WP503695 | Cork, Sealer 1/4 Pound) (Replaces: 503695) |
|
$ 123.84 | ||||||
| 542639 | Cement, Alumilastic 1-1/4 Oz.) |
|
- | ||||||
| WP542638 | Grease, Silicone (1/2 Oz.) (Replaces: 542638) |
|
Immediately | $ 12.78 | |||||
| WP505587 | Sealer, Mastic (1 Qt.). (Replaces: 505587) |
|
Immediately | $ 182.65 | |||||
| 876370 | Kit, Insulation (14 Pcs. 3`` X 24`` X 48``) (Replaces: 876305) |
|
$ 243.14 | ||||||
| 876370 | Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``) (Replaces: 978941) |
|
$ 243.14 |
