SELECT A DIAGRAM

01 - Cover Sheet

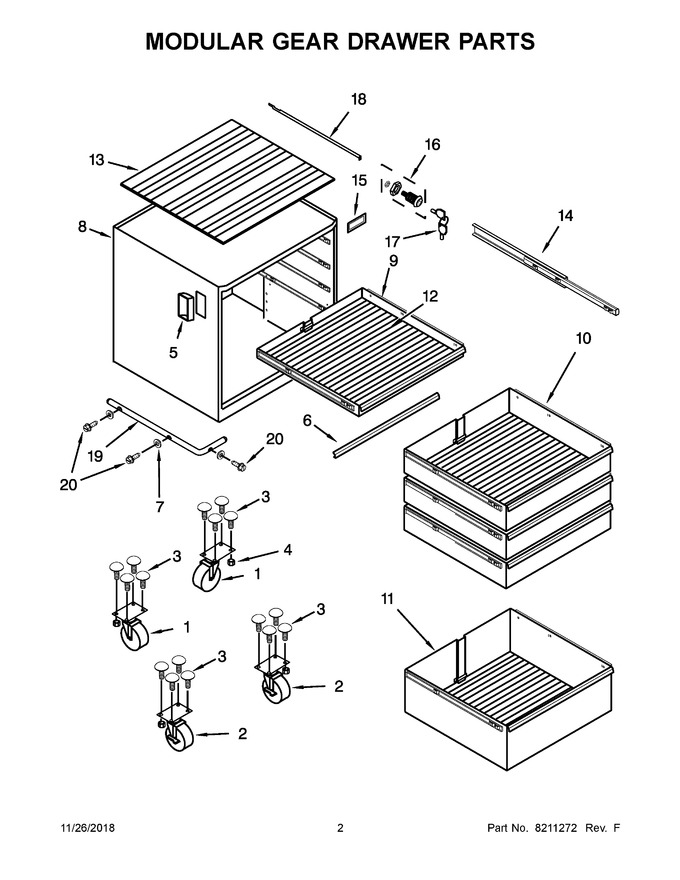

02 - Modular Gear Drawer Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP8204601		Caster, Swivel 5   (Replaces: 8204601)				$ 76.42
2	8211250		Caster, Rigid 5" With Brake (right Hand)				$ 40.15
3	WP8204609		Bolt   (Replaces: 8204609)				$ 69.70
4	WP8204610		Nut, Nylon   (Replaces: 8204610)				$ 12.39
5	W10914558		Handle, Plastic   (Replaces: 8204603)				$ 7.59
6	W11321874		Trim, Drawer   (Replaces: 8211278)		Appelez-nous	-
7	WP8211254		Washer   (Replaces: 8211254)				$ 9.30
8	N/P		Cabinet (not A Serviceable Part)		Appelez-nous	-
9	8211257		Tray And Guide, 2" Drawer (silver Treadplate)		Appelez-nous	-
10	8211258		Tray And Guide, 4" Drawer (silver Treadplate)		Appelez-nous	-
11	8211259		Tray And Guide, 8" Drawer (silver Treadplate)		Appelez-nous	-
12	WP8204604		Liner, Drawer   (Replaces: 8204604)				$ 85.94
13	8204605		Mat, Top		Appelez-nous	-
14	WP8211252		Slide, Drawer   (Replaces: 8211252)				$ 84.70
15	W10554071		Nameplate, Gladiator		Appelez-nous	-
16	W11557659		Lock Assembly   (Replaces: 8204607)				$ 63.98
17	W11383363		Keys   (Replaces: 8204608)				$ 7.31
18	8211226		Keybar		Appelez-nous	-
19	8204634		Bumper		Appelez-nous	-
20	WP8211253		Screw   (Replaces: 8211253)				$ 2.15
10A	W10757766		Tray And Guide, 4" Drawer (red Treadplate)		Appelez-nous	-
11A	W10757767		Tray And Guide, 8" Drawer (red Treadplate)		Appelez-nous	-
2A	W10741533		Caster, Rigid 5" With Brake (left Hand)   (Replaces: 8211251)		Appelez-nous	-
9A	W10757765		Tray And Guide, 2" Drawer (red Treadplate)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
