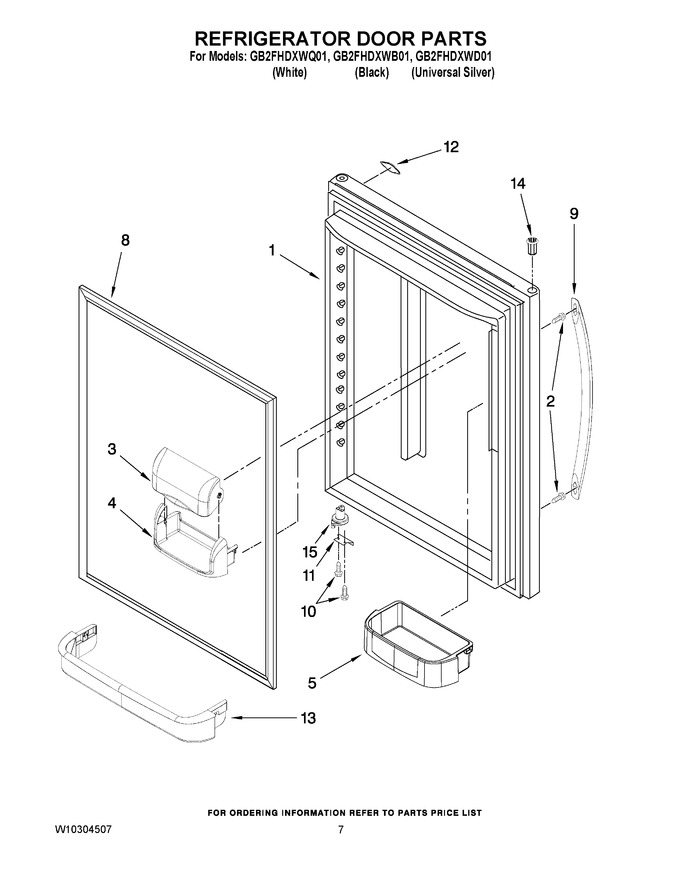

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 13023866DQ | Door, Refrigerator (universal Silver) |
|
- | |||||
| 1 | 12658572BQ | Door, Refrigerator (black) |
|
- | |||||
| 1 | 12658572WQ | Door, Refrigerator (white) |
|
$ 754.44 | |||||
| 2 | WP12992902 | Screw, Handle (Replaces: 12992902) |
|
$ 11.07 | |||||
| 3 | WP67003637 | Door, Dairy (Replaces: 12804701SP) |
|
Immediately | $ 78.73 | ||||
| 4 | WP67001279 | Tray, Dairy (Replaces: 12369502SP) |
|
Immediately | $ 83.82 | ||||
| 5 | WPW10371194 | Bucket, Medium (4) (Replaces: 12849106V) |
|
Immediately | $ 73.55 | ||||
| 8 | W10443313 | Gasket, Door (white) (Replaces: W10164034) |
|
$ 343.82 | |||||
| 8 | WPW10436248 | Gasket, Door (black) (Replaces: W10164035) |
|
$ 286.97 | |||||
| 9 | W11351147 | Handle, Door (stainless Steel) (Replaces: W10223019N) |
|
$ 188.78 | |||||
| 9 | W11351146 | Handle, Door (black) (Replaces: W10222985N) |
|
$ 180.08 | |||||
| 9 | WPW10222984K | Handle, Door (white) (Replaces: W10222984N) |
|
$ 195.68 | |||||
| 10 | WP98165 | Screw (Replaces: 12990504) |
|
$ 8.00 | |||||
| 11 | 12968202W | Stop, Door (white) (Replaces: 10447111) |
|
$ 69.29 | |||||
| 11 | W11708403 | Stop, Door (black) (Replaces: 10447112) |
|
Immediately | $ 14.05 | ||||
| 12 | 2220214 | Nameplate |
|
$ 32.43 | |||||
| 13 | 67001019 | Retainer, Ref Door (Replaces: 12557905) |
|
Immediately | $ 107.52 | ||||
| 14 | WP67004977 | Bushing (4) (white) (Replaces: 10961006W) |
|
$ 7.81 | |||||
| 14 | 67004978 | Bushing (4) (black) (Replaces: 10961006B) |
|
$ 21.05 | |||||
| 15 | WP67003639 | Closure, Door (black) (Replaces: 12028505B) |
|
$ 86.02 | |||||
| 15 | WP67003638 | Closure, Door (white) (Replaces: 12028505W) |
|
Immediately | $ 7.76 |
