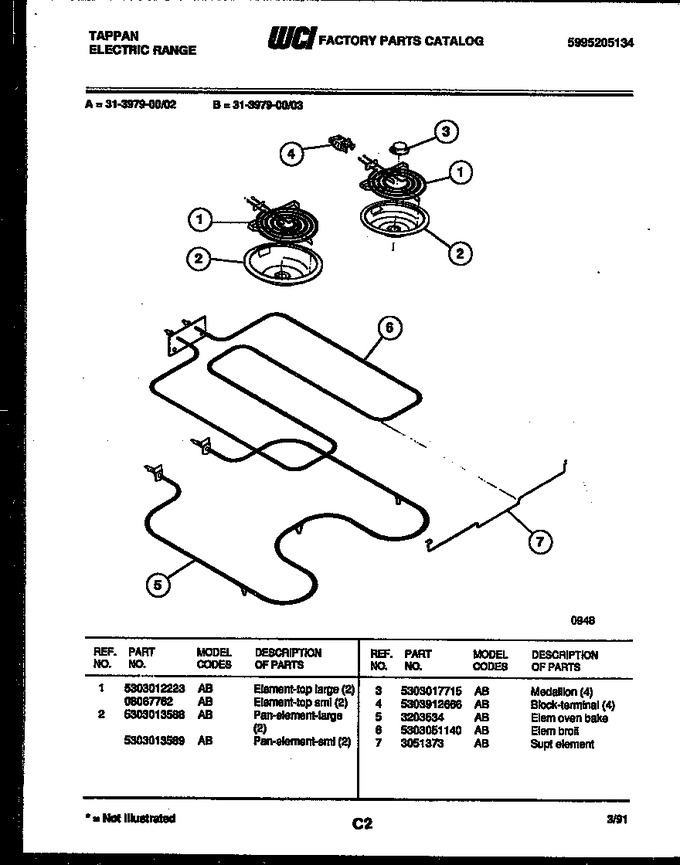

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 316442301 | Element-top Large (2) (Replaces: 5303012223) |
|
Immediately | $ 49.32 | ||||
| 2 | 316048413 | Pan-element Large (2) (Replaces: 5303013588) |
|
Immediately | $ 10.94 | ||||
| 3 | 5303017715 | Medallion (4) |
|
$ 71.62 | |||||
| 4 | 5303935058 | Block-terminal (4) (Replaces: 5303912666) |
|
Immediately | $ 15.34 | ||||
| 5 | 316075103 | Elem Oven Bake (Replaces: 3203534) |
|
Immediately | $ 47.07 | ||||
| 6 | 5303051140 | Elem Broil |
|
$ 225.23 | |||||
| 7 | 3051373 | Supt-element |
|
- | |||||
| 1A | 318372211 | Element-top Sml (2) (Replaces: 08067762) |
|
Immediately | $ 50.15 | ||||
| 2A | 5303013589 | Pan-element-sml (2) |
|
- |
