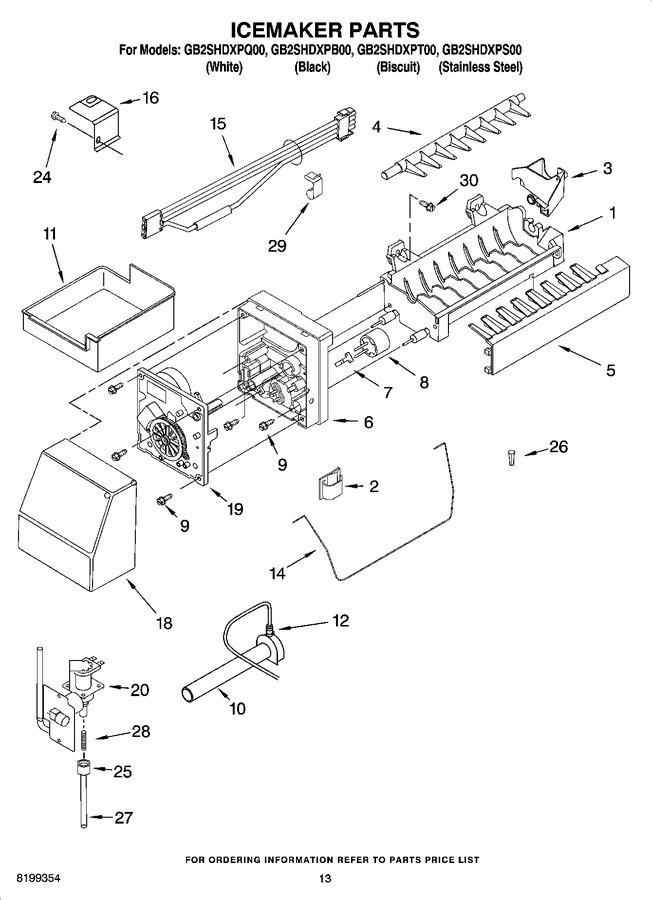

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | WPM0104106 | Clip (Replaces: 4344265) |
|
$ 8.17 | |||||
| 3 | WP628356 | Bearing & Inlet (Replaces: 8170928) |
|
$ 53.75 | |||||
| 4 | WP627843 | Ejector (Replaces: 8170927) |
|
$ 87.78 | |||||
| 5 | WP2182124 | Ice Stripper (Replaces: 8170929) |
|
$ 90.35 | |||||
| 6 | WP2195914 | Support (Replaces: 8170932) |
|
$ 109.80 | |||||
| 7 | WP2315522 | Retainer, Thermostat (2) (Replaces: 8170930) |
|
$ 11.60 | |||||
| 9 | WP681249 | Screw (4) (Replaces: 8170933) |
|
Immediately | $ 8.25 | ||||
| 10 | W11176463 | Fill Tube (Replaces: 8170414) |
|
Immediately | $ 119.86 | ||||
| 11 | WP67001255 | Pan, Ice (Replaces: 8170926) |
|
$ 213.23 | |||||
| 12 | WPM0114003 | Clip (Replaces: 4343702) |
|
$ 11.60 | |||||
| 14 | WP67004028 | Shutoff Arm (Replaces: 8171289) |
|
Immediately | $ 95.92 | ||||
| 15 | WPD7813010 | Harness, Ice Maker (Replaces: 8170938) |
|
Immediately | $ 73.97 | ||||
| 16 | WP2256087 | Clip, Icemaker (Replaces: 8170931) |
|
$ 97.65 | |||||
| 18 | WPW10289690 | Cover (Replaces: 8208238) |
|
Immediately | $ 8.82 | ||||
| 20 | WP67003753 | Valve, Water Inlet (Replaces: 8208237) |
|
Immediately | $ 109.40 | ||||
| 24 | 8170943 | Screw |
|
- | |||||
| 25 | WP627018 | Compression Nut (Replaces: 4343704) |
|
$ 11.51 | |||||
| 26 | WPA3223101 | Insert, Tube (Replaces: 4344402) |
|
$ 8.21 | |||||
| 27 | W10823511 | Tube, Water (Replaces: 8170934) |
|
Immediately | $ 32.41 | ||||
| 28 | 4343686 | Spring |
|
- | |||||
| 29 | 4343984 | Clip, Wire |
|
- | |||||
| 30 | 4344548 | Coupling |
|
- | |||||
| 30 | WP488878 | Tube Clamp (Replaces: 488878) |
|
$ 12.18 | |||||
| 30 | 4344549 | Plug, Hole |
|
- | |||||
| 30 | 4344316 | Plug, Button |
|
- | |||||
| 30 | WP98165 | Screw (Replaces: 4343675) |
|
$ 8.57 | |||||
| 1117510 | Torx Key |
|
$ 5.84 | ||||||
| 542639 | Cement, Alumilastic 1-1/4 Oz.) |
|
- | ||||||
| 350956 | Enamel, Almond (13 Oz. Spray Can) |
|
$ 54.01 | ||||||
| 350942 | Primer White (13 Oz. Spray Can) |
|
$ 94.14 | ||||||
| 285006 | Enamel, Black (13 Oz. Spray Can) (Replaces: 350939) |
|
$ 59.89 | ||||||
| 350930 | Paint, Pressurized Spray (12 Oz.) White |
|
Immediately | $ 40.12 | |||||
| 212643 | Sealer, Gum (4 Feet) |
|
Immediately | $ 96.42 | |||||
| 479502 | Tape, Vinyl 3/4 X 108``) |
|
$ 66.77 | ||||||
| 876370 | Kit, Insulation 2 Pcs. X 3`` X 24`` X 48``) |
|
$ 243.14 | ||||||
| 876029 | Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``) |
|
- | ||||||
| 511873 | Paint, Touch-up 1/2 Oz. (white Porcelain) |
|
$ 51.75 | ||||||
| 606755 | Bag, Insulation (36-5/8`` X 46``) |
|
$ 82.37 | ||||||
| WP542638 | Grease, Silicone (1/2 Oz.) (Replaces: 542638) |
|
Immediately | $ 12.78 | |||||
| 799833 | Kit, Evaporator Repair (aluminum Epoxy) |
|
- | ||||||
| 833938 | Kit, Terminal Connector |
|
$ 8.47 | ||||||
| 4343700 | Ice Container Assembly |
|
- | ||||||
| 799340 | Enamel, Black (1 Qt. Uncut) |
|
- | ||||||
| 799344 | Paint, Bulk (1 Qt.) (white) (uncut) |
|
$ 237.46 | ||||||
| 978883 | Enamel, Almond (1 Qt. Uncut) |
|
- | ||||||
| N/A | Torx Screw Wrench |
|
- | ||||||
| WP503695 | Cork, Sealer 1/4 Pound) (Replaces: 503695) |
|
$ 123.84 | ||||||
| WP505587 | Sealer, Mastic (1 Qt.). (Replaces: 505587) |
|
Immediately | $ 182.65 | |||||
| 876370 | Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``) (Replaces: 978941) |
|
$ 243.14 | ||||||
| 876370 | Kit, Insulation (14 Pcs. X 3`` X 24`` X 48``) (Replaces: 876305) |
|
$ 243.14 | ||||||
| 72032 | Paint, Touch-up 1/2 Oz. (black) |
|
Immediately | $ 18.69 | |||||
| WP72107 | Paint, Touch-up (1/2oz.) (almond) (Replaces: 72107) |
|
$ 18.81 | ||||||
| 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 12.30 |
