SELECT A DIAGRAM

01 - Cabinet Parts


02 - Freezer Liner Parts


03 - Freezer Door Parts


04 - Refrigerator Liner Parts


05 - Refrigerator Door Parts


06 - Unit Parts


07 - Shelf Parts


08 - Icemaker Parts, Optional Parts

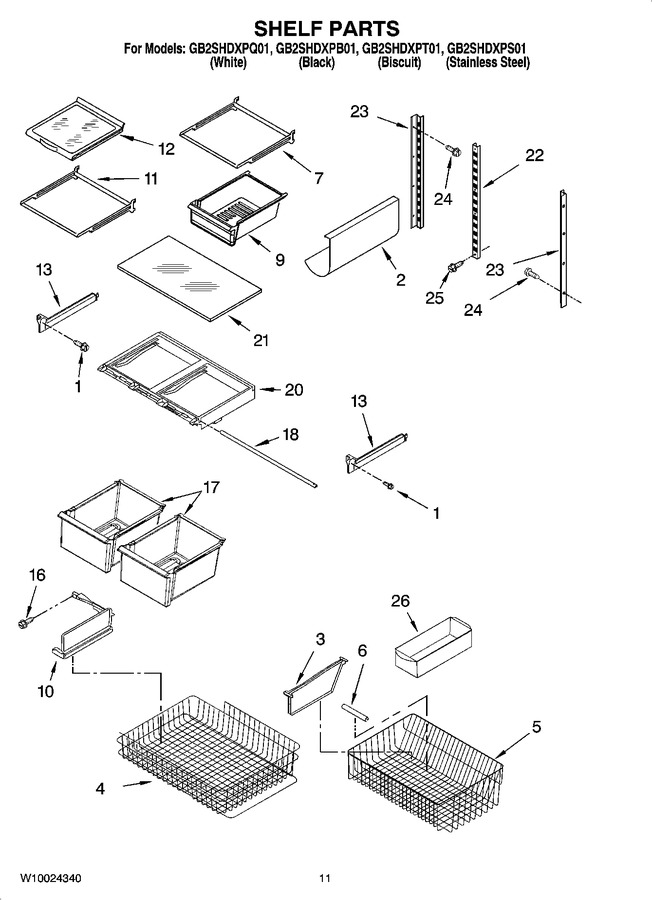

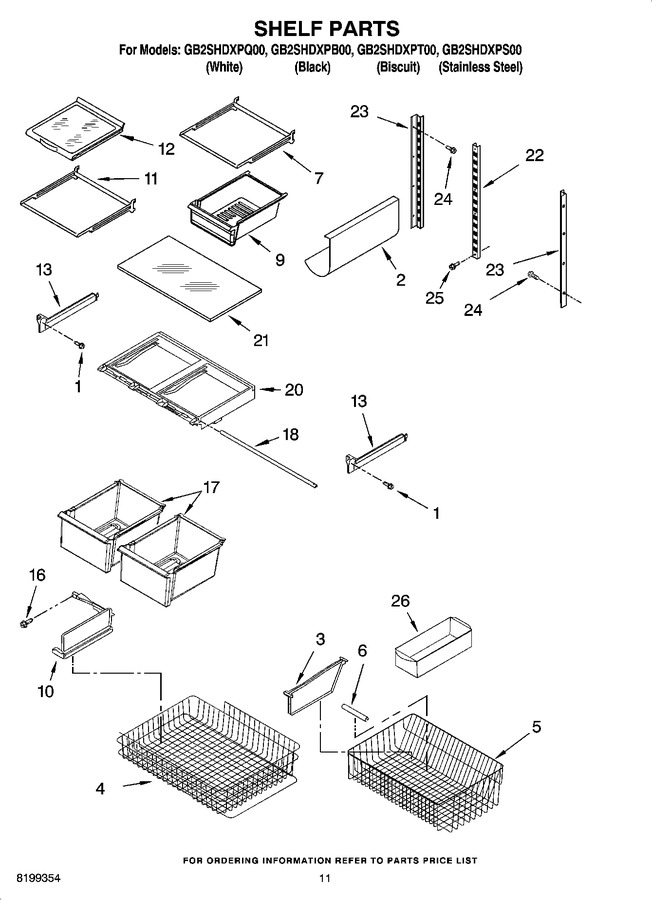

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4344167		Screw		Appelez-nous	-
2	4344294		Rack, Wine		Appelez-nous	-
3	8171227		Divider, Basket (lower)		Appelez-nous	-
4	8208181		Basket, Freezer (upper)		Appelez-nous	-
5	8171225		Basket, Freezer (lower)		Appelez-nous	-
6	8208220		Handle, Basket		Appelez-nous	-
7	4344381		Frame, Shelf (meat Pan)		Appelez-nous	-
9	WP2218127K		Meat Pan   (Replaces: 8170754)				$ 146.80
10	8171226		Divider, Basket (upper)		Appelez-nous	-
11	8170763		Shelf Assembly (3)		Appelez-nous	-
12	8170964		Shelf, S/g, S/o		Appelez-nous	-
13	8208230		Support, Crisper (left Side)		Appelez-nous	-
13	8208231		Support, Crisper (right Side)		Appelez-nous	-
16	8171073		Screw		Appelez-nous	-
17	8170717		Crisper (2)		Appelez-nous	-
18	WP12227302WD		Support, Crisper Cvr   (Replaces: 8170554)				$ 111.60
20	8171168		Frame, Crisper		Appelez-nous	-
21	8170560		Glass, Crisper Cover		Appelez-nous	-
22	8170870		Ladder, Center		Appelez-nous	-
23	8170871		Ladder, Side		Appelez-nous	-
24	67006425		Screw   (Replaces: 4344396)			Immediately	$ 7.30
25	8170578		Screw		Appelez-nous	-
26	W10136387A		Bin, Egg   (Replaces: 8170709)				$ 19.54

    View Diagram in Separate Window       Print Part List
