SELECT A DIAGRAM

01 - Cabinet Parts


02 - Freezer Liner Parts


03 - Freezer Door Parts


04 - Refrigerator Liner Parts


05 - Refrigerator Door Parts


06 - Unit Parts

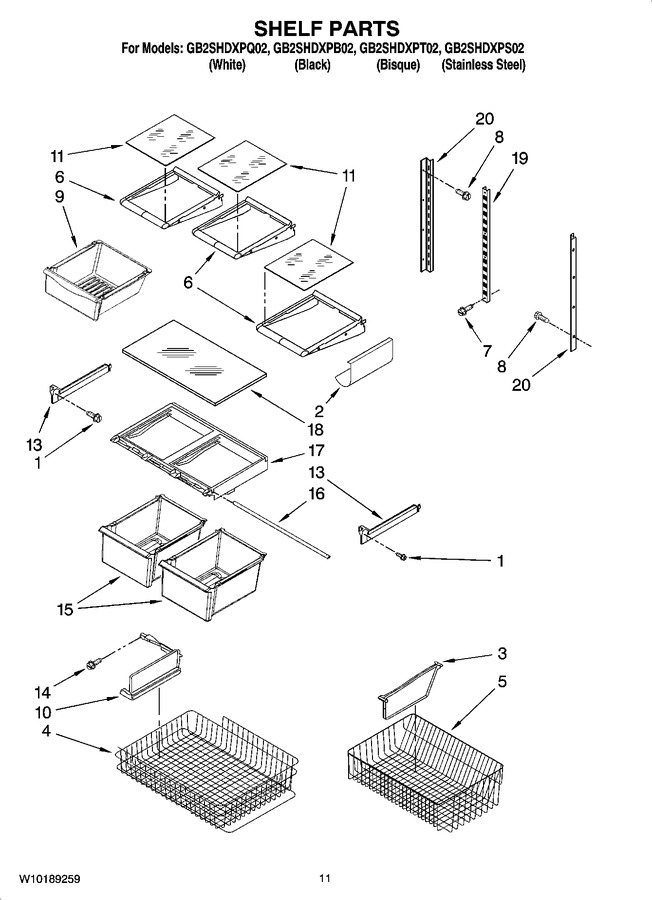

07 - Shelf Parts


08 - Icemaker Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	67006425		Screw   (Replaces: 67006400)			Immediately	$ 7.30
2	12052502		Rack, Wine		Appelez-nous	-
3	67006644		Divider, Basket (lower)		Appelez-nous	-
4	67004986		Basket, Freezer (upper)				$ 234.59
5	67006024		Basket, Freezer (lower)		Appelez-nous	-
6	2174036		Frame, Glide (3)		Appelez-nous	-
7	W10709795		Screw (2)   (Replaces: 67006360)				$ 13.79
8	67006425		Screw (6)   (Replaces: 67006400)			Immediately	$ 7.30
9	2225287		Meat Pan				$ 147.19
10	67004127		Divider, Basket (upper)				$ 10.10
11	2165883		Shelf Glass (3)		Appelez-nous	-
13	67004658		Support, Crisper (right Side)		Appelez-nous	-
13	67004657		Support, Crisper (left Side)		Appelez-nous	-
14	67006608		Screw		Appelez-nous	-
15	67002851		Crisper (2)		Appelez-nous	-
16	12242501		Support, Crisper Cvr		Appelez-nous	-
17	67002670		Frame, Crisper		Appelez-nous	-
18	2174144		Glass, Crisper Cover		Appelez-nous	-
19	67002854		Ladder, Center		Appelez-nous	-
20	67002855		Ladder, Side		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
