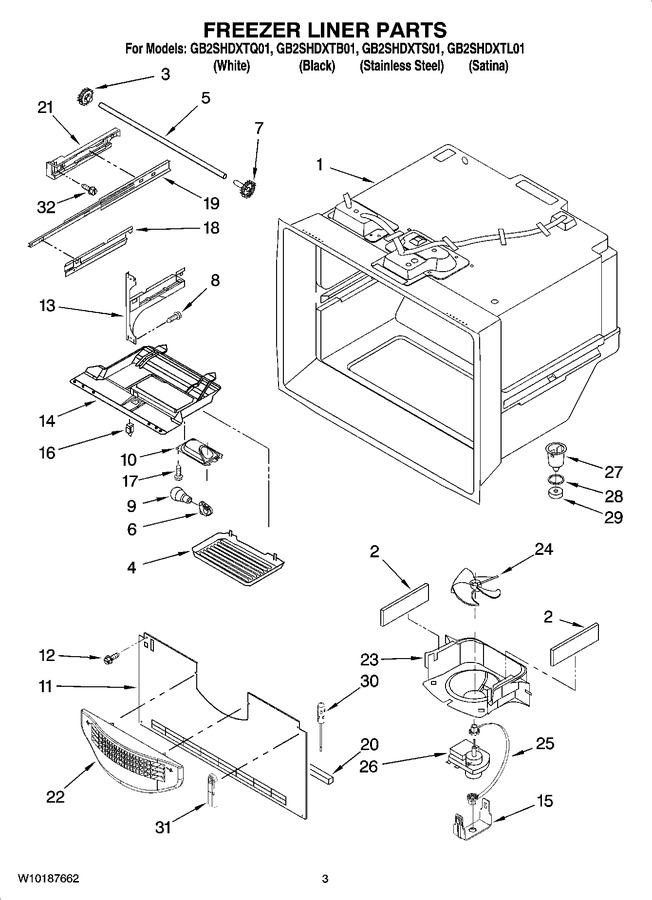

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | W10856123 | Gasket, Foam (Replaces: 67001291) |
|
Immediately | $ 8.06 | ||||
| 3 | 12002497 | Gear (left) (includes Item 7) |
|
Immediately | $ 22.51 | ||||
| 4 | 67003905 | Cover, Light |
|
- | |||||
| 5 | W11715937 | Shaft (Replaces: 67004261) |
|
$ 68.69 | |||||
| 6 | W11447232 | Socket, Light (Replaces: Y12570701) |
|
Immediately | $ 13.87 | ||||
| 7 | 12002497 | Gear (right) (includes Item 3) |
|
Immediately | $ 22.51 | ||||
| 8 | WP98165 | Screw (Replaces: 67006473) |
|
$ 8.57 | |||||
| 9 | W11679940 | Bulb, Light (Replaces: A0282812) |
|
Immediately | $ 11.30 | ||||
| 10 | W11702858 | Housing, Frz. Light (Replaces: 67001035) |
|
$ 90.11 | |||||
| 11 | W10308415 | Cover, Evaporator (Replaces: 67005872) |
|
$ 299.73 | |||||
| 12 | 67006425 | Screw |
|
Immediately | $ 7.30 | ||||
| 13 | WPW10330993 | Bracket, Door (right) (Replaces: W10122148) |
|
$ 166.09 | |||||
| 13 | WPW10330991 | Bracket, Door (left) (Replaces: W10122147) |
|
$ 164.31 | |||||
| 14 | 67003906 | Housing, Lighting |
|
$ 116.80 | |||||
| 15 | 13058002 | Clip, Evap. Motor (Replaces: W10167028) |
|
$ 12.66 | |||||
| 16 | W11396033 | Switch, Light (Replaces: 67005653) |
|
Immediately | $ 37.30 | ||||
| 17 | 67006530 | Screw |
|
- | |||||
| 18 | W10187677 | Bracket, Basket (right) |
|
- | |||||
| 18 | WPW10280608 | Bracket, Basket (left) (Replaces: W10187668) |
|
$ 92.15 | |||||
| 19 | W11658402 | Slide, Drawer (Replaces: W10120018) |
|
Immediately | $ 127.51 | ||||
| 20 | W11451451 | Gasket, Bottom (Replaces: 67003731) |
|
$ 13.03 | |||||
| 21 | W10128119 | Bracket, Slide (right) |
|
- | |||||
| 21 | W10128118 | Bracket, Slide (left) |
|
- | |||||
| 22 | WPW10175909 | Cover, Fan Shroud (Replaces: W10175909) |
|
Immediately | $ 85.72 | ||||
| 23 | WPW10167023 | Shroud, Evap.fan (Replaces: W10167023) |
|
Immediately | $ 66.28 | ||||
| 24 | WP2169142 | Blade, Fan (evaporator) (Replaces: 2169142) |
|
Immediately | $ 43.41 | ||||
| 25 | W10121318 | Grommet |
|
$ 50.80 | |||||
| 26 | WPW10128551 | Motor, Evaporator (Replaces: 67003636) |
|
Immediately | $ 78.75 | ||||
| 27 | W10815413 | Funnel, Drain (Replaces: D7753903) |
|
Immediately | $ 51.50 | ||||
| 28 | WPM0500703 | Seal (Replaces: M0500703) |
|
$ 11.47 | |||||
| 29 | WPB8381501 | Gasket (Replaces: B8381501) |
|
$ 7.78 | |||||
| 30 | 12002355 | Thermistor |
|
Immediately | $ 47.36 | ||||
| 31 | WP67003924 | Cover, Thermistor (Replaces: 67003924) |
|
$ 8.21 | |||||
| 32 | WP489474 | Screw (Replaces: 67006406) |
|
Immediately | $ 8.55 | ||||
| 67006095 | Harness, Lights (freezer) |
|
- |
