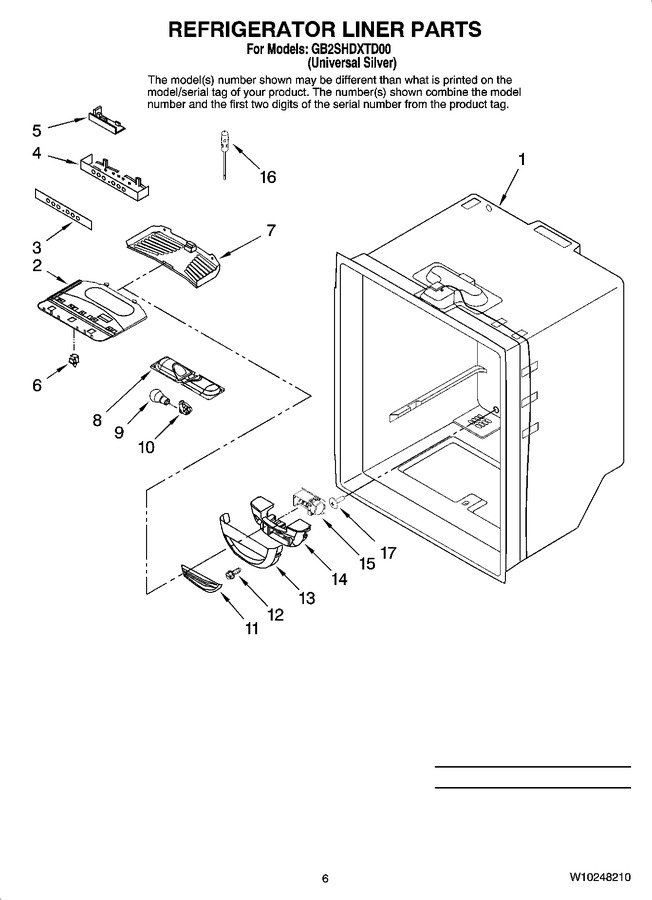

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | Y67003896 | Module, Light |
|
- | |||||
| 3 | 67005190 | Overlay |
|
- | |||||
| 4 | WPW10464769 | Housing (Replaces: W10185244) |
|
Immediately | $ 108.34 | ||||
| 5 | WPW10503278 | Board, Control (Replaces: W10165748) |
|
Immediately | $ 55.44 | ||||
| 6 | W11384469 | Switch, Light (Replaces: C3680310) |
|
Immediately | $ 37.23 | ||||
| 7 | W11284721 | Cover, Light (Replaces: 67003897) |
|
$ 100.97 | |||||
| 8 | 12806601 | Housing, Light (Replaces: 67003901) |
|
$ 104.95 | |||||
| 9 | W11679940 | Bulb, Light (2) (Replaces: W10194422) |
|
Immediately | $ 11.30 | ||||
| 10 | W11447232 | Socket, Light (2) (Replaces: Y12570701) |
|
Immediately | $ 13.21 | ||||
| 11 | 67003900 | Insert, Damper Cover |
|
Immediately | $ 8.14 | ||||
| 12 | W11772394 | Screw (2) (Replaces: 67006602) |
|
Immediately | $ 12.16 | ||||
| 13 | WP12806701 | Cover, Damper (Replaces: 67003899) |
|
$ 113.00 | |||||
| 14 | W11750607 | Insulation (Replaces: 67006604) |
|
$ 47.76 | |||||
| 15 | WPW10196393 | Control, Damper (Replaces: W10127429) |
|
Immediately | $ 166.07 | ||||
| 16 | 12002355 | Thermistor |
|
Immediately | $ 47.36 | ||||
| 17 | M0310343 | Plug Button |
|
$ 10.67 | |||||
| W11619328 | Harness, Controls (refrigerator) (Replaces: 67004033) |
|
Immediately | $ 95.67 |
