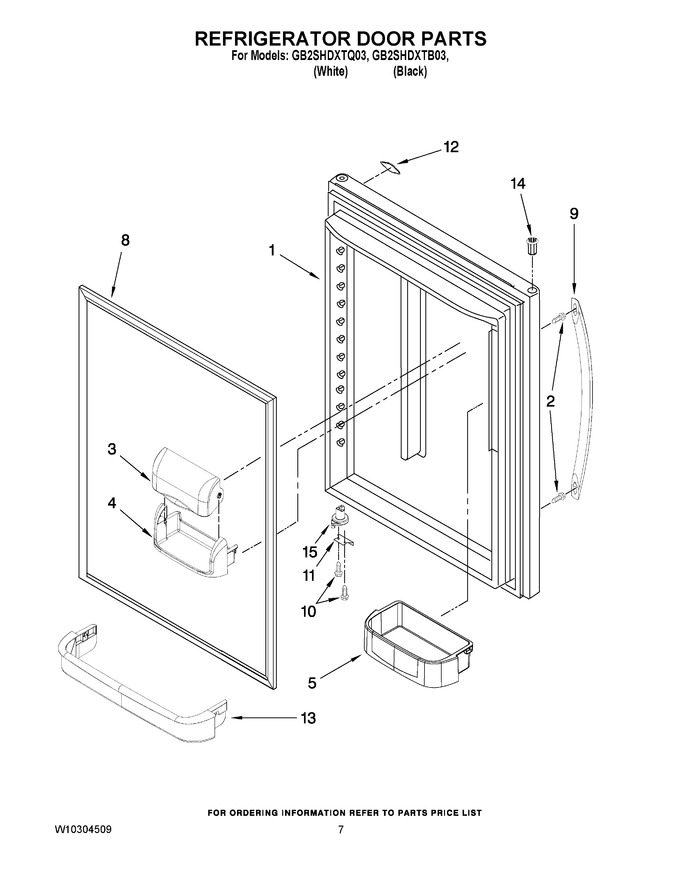

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 12658565WQ | Door, Refrigerator (white) |
|
$ 421.73 | |||||
| 1 | 12658565BQ | Door, Refrigerator (black) |
|
$ 208.43 | |||||
| 2 | WPW10010150 | Screw, Handle (black) (Replaces: W10010150) |
|
$ 8.57 | |||||
| 2 | W11366418 | Screw, Handle (white) (Replaces: W10010140) |
|
Immediately | $ 15.79 | ||||
| 3 | WP67003637 | Door, Dairy (Replaces: 12804701SP) |
|
Immediately | $ 82.67 | ||||
| 4 | WP67001279 | Tray, Dairy (Replaces: 12369502SP) |
|
Immediately | $ 88.01 | ||||
| 5 | WPW10371194 | Bucket, Medium (4) (Replaces: 12849106V) |
|
Immediately | $ 77.23 | ||||
| 8 | WPW10436248 | Gasket, Door (black) (Replaces: W10164035) |
|
$ 286.97 | |||||
| 8 | W10443313 | Gasket, Door (white) (Replaces: W10164034) |
|
$ 361.01 | |||||
| 9 | WP2254600B | Handle, Door (black) (Replaces: 2254600B) |
|
$ 219.21 | |||||
| 9 | WP2254600W | Handle, Door (white) (Replaces: 2254600WN) |
|
$ 246.90 | |||||
| 10 | WP98165 | Screw (Replaces: 12990504) |
|
$ 8.57 | |||||
| 11 | 12968202W | Stop, Door (white) (Replaces: 10447111) |
|
$ 69.29 | |||||
| 11 | W11708403 | Stop, Door (black) (Replaces: 10447112) |
|
Immediately | $ 14.75 | ||||
| 12 | 2220214 | Nameplate |
|
$ 32.43 | |||||
| 13 | 12690502 | Retainer, Ref Door |
|
$ 45.03 | |||||
| 14 | 67004978 | Bushing (4) (black) (Replaces: 10961006B) |
|
$ 22.10 | |||||
| 14 | WP67004977 | Bushing (4) (white) (Replaces: 10961006W) |
|
$ 8.20 | |||||
| 15 | WP67003639 | Closure, Door (black) (Replaces: 12028505B) |
|
$ 90.32 | |||||
| 15 | WP67003638 | Closure, Door (white) (Replaces: 12028505W) |
|
Immediately | $ 8.15 |
