SELECT A DIAGRAM

01 - Cabinet Parts


02 - Freezer Liner Parts


03 - Freezer Door Parts


04 - Refrigerator Liner Parts


05 - Refrigerator Door Parts


06 - Unit Parts


07 - Shelf Parts


08 - Icemaker Parts, Optional Parts

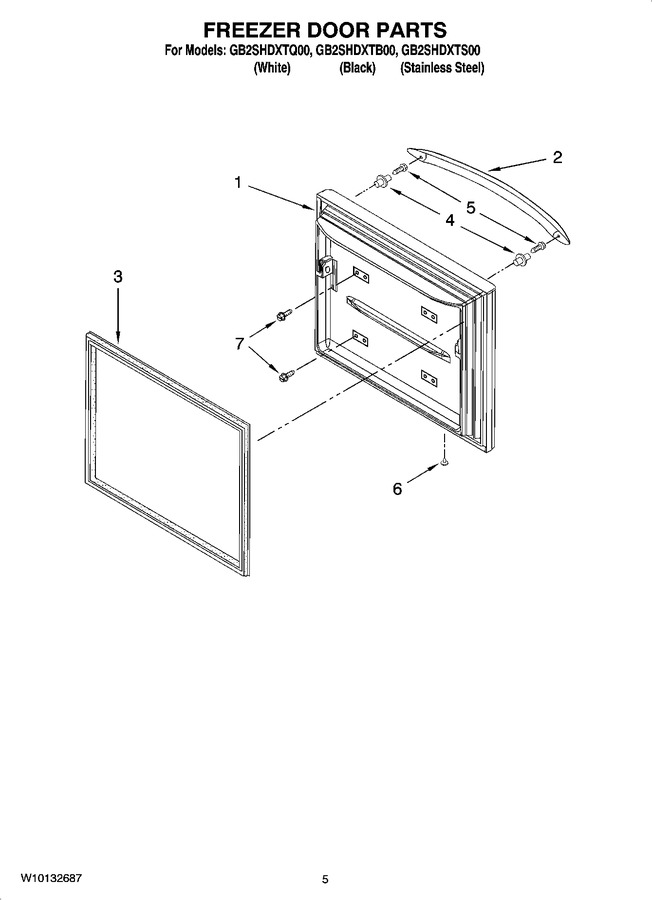

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10175552		Freezer Door (w/ Insulation) (white)		Appelez-nous	-
1	W10175551		Freezer Door (w/ Insulation) (black)		Appelez-nous	-
1	12658928SQ		Freezer Door (w/ Insulation) (stainless Steel)   (Replaces: 67007149)				$ 682.50
2	WP2254600W		Handle (white)   (Replaces: 2319729W)				$ 235.14
2	WP2254600B		Handle (black)   (Replaces: 2319729B)				$ 208.77
2	2319729S		Handle (stainless Steel)		Appelez-nous	-
3	W10443315		Door Gasket, Magnetic (white)   (Replaces: 8171163)				$ 193.98
3	WPW10436250		Door Gasket, Magnetic (black)   (Replaces: 8171162)			Immediately	$ 347.99
4	8171220		Stud, Handle		Appelez-nous	-
5	WP3387230		Screw   (Replaces: 8170956)			Immediately	$ 8.54
6	8208212		Plug, Button (2) (white)		Appelez-nous	-
6	67004838		Plug, Button (2) (black)   (Replaces: 8208213)				$ 10.68
7	12991101		Screw   (Replaces: 67006408)				$ 12.83

    View Diagram in Separate Window       Print Part List
