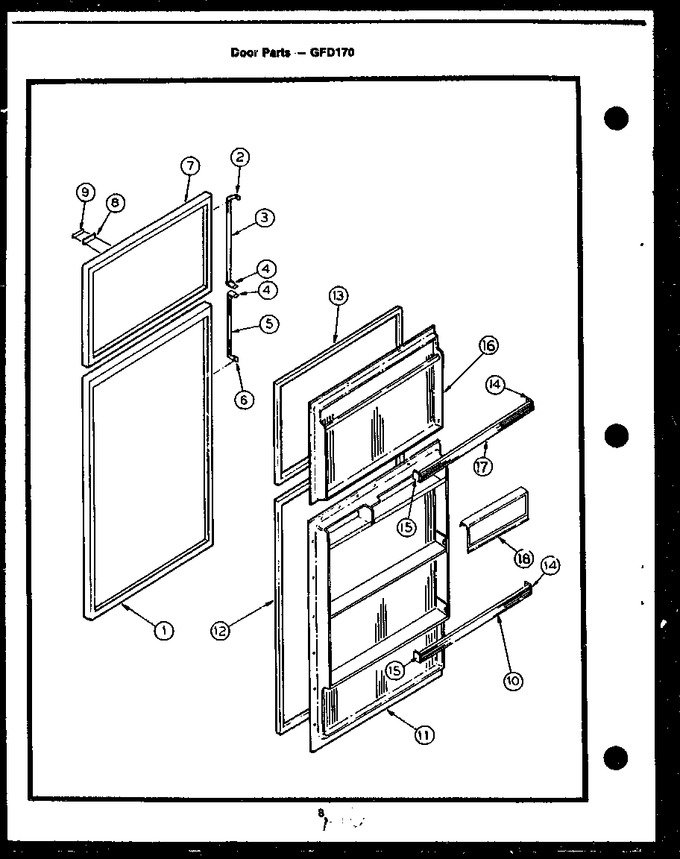

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	53316N		Exterior Panel - Ref - Texture		Appelez-nous	-
1	53316D		Exterior Panel - Ref - Texture		Appelez-nous	-
1	Y0086464		Ring Seal		Appelez-nous	-
1	53316F		Exterior Panel - Ref - Texture		Appelez-nous	-
1	Y0053323		Sub 86464, Hinge Bearing		Appelez-nous	-
2	0086577		Handle, End		Appelez-nous	-
3	86575		Grip - Handle Fz				$ 97.41
4	Y0086559		End, Handles		Appelez-nous	-
5	Y00000000		See Note Screw - Handles -- (8)		Appelez-nous	-
5	0086576		Sub 86575, Handle		Appelez-nous	-
6	0086578		End, Handle Bottom		Appelez-nous	-
7	53315D		Exterior Panel - Fz - Textured		Appelez-nous	-
7	53315F		Exterior Panel - Fz - Textured		Appelez-nous	-
7	Y0053323		Sub 86464, Hinge Bearing		Appelez-nous	-
7	53315N		Exterior Panel - Fz - Textured		Appelez-nous	-
7	Y0086464		Ring Seal		Appelez-nous	-
8	Y0086615		Frame, Nameplate		Appelez-nous	-
9	Y0086616		Label, Nameplate		Appelez-nous	-
9	Y0086466		Tape		Appelez-nous	-
10	53305		Rack - Ref		Appelez-nous	-
11	Y0086488		Screw		Appelez-nous	-
11	53329		Interior Panel - Ref		Appelez-nous	-
12	0053339		Use 0086609		Appelez-nous	-
13	0053338		Gasket, Freezer Door		Appelez-nous	-
14	0053331		Support, Rack, Rh		Appelez-nous	-
15	53332		Support - Rack L.h.		Appelez-nous	-
16	Y0053330		Interior Panel, Freezer		Appelez-nous	-
17	53304		Rack, Fz Door		Appelez-nous	-
17	Y0086488		Screw		Appelez-nous	-
18	0086480		Door, Butter		Appelez-nous	-
NI	53303N		Button - Plug - R.h. Handle Mo		Appelez-nous	-
NI	53309F		Button - Plug - L.h. Upper Hin		Appelez-nous	-
NI	53309N		Button - Plug - L.h. Upper Hin		Appelez-nous	-
NI	53308N		Kit - Door Conversion		Appelez-nous	-
NI	53308D		Kit - Door Conversion		Appelez-nous	-
NI	53308F		Kit - Door Conversion		Appelez-nous	-
NI	53303D		Button - Plug - R.h. Handle Mo		Appelez-nous	-
NI	53309D		Button - Plug - L.h. Upper Hin		Appelez-nous	-
NI	53303F		Button - Plug - R.h. Handle Mo		Appelez-nous	-
