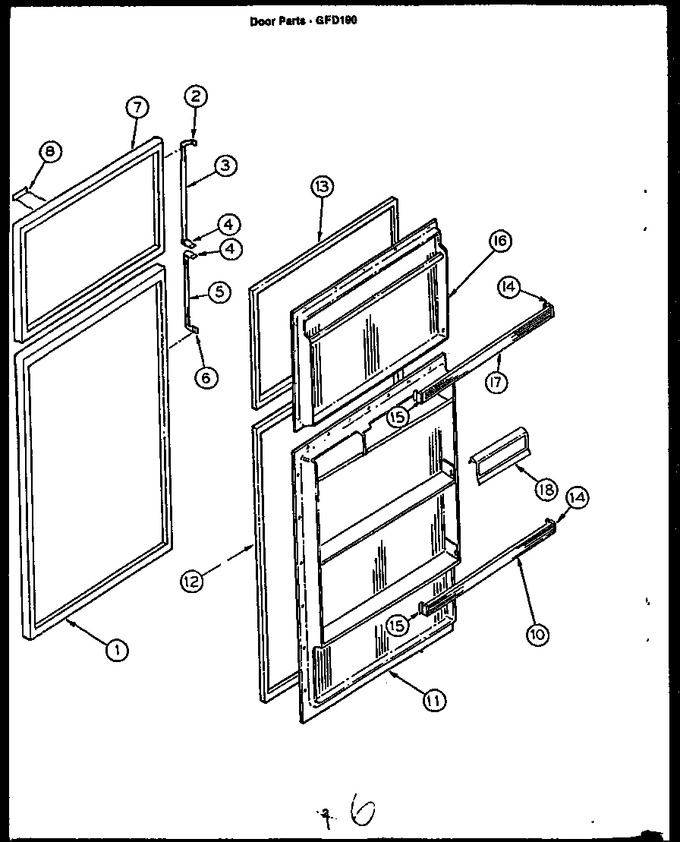

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	53860L		Exterior Panel-ref-almond		Appelez-nous	-
1	Y00000000		See Note Exterior Panel - Ref - Textured		Appelez-nous	-
1	Y0053323		Sub 86464, Hinge Bearing		Appelez-nous	-
1	53860W		Exterior Panel-ref-white		Appelez-nous	-
2	0086577		Handle, End		Appelez-nous	-
3	86575		Grip - Handle Fz				$ 97.41
4	Y0053705		End, Handle		Appelez-nous	-
5	Y0053333		Screw, Handle		Appelez-nous	-
5	0086576		Sub 86575, Handle		Appelez-nous	-
6	0086578		End, Handle Bottom		Appelez-nous	-
7	Y0053323		Sub 86464, Hinge Bearing		Appelez-nous	-
7	Y00000000		See Note Exterior Panel - Fz - Textured		Appelez-nous	-
7	53861L		Exterior Panel-fz-almond		Appelez-nous	-
7	53861W		Exterior Panel-fz-white		Appelez-nous	-
8	Y0086615		Frame, Nameplate		Appelez-nous	-
8	Y0086616		Label, Nameplate		Appelez-nous	-
10	0052632		Window Assy		Appelez-nous	-
11	53886		Interior Panel - Ref		Appelez-nous	-
11	Y0086488		Screw		Appelez-nous	-
12	Y0053900		Gasket, Refrig. Door		Appelez-nous	-
13	Y0053899		Gasket, Freezer Door		Appelez-nous	-
14	0053331		Support, Rack, Rh		Appelez-nous	-
15	53332		Support - Rack L.h.		Appelez-nous	-
16	Y0086488		Screw		Appelez-nous	-
16	53883		Interior Panel - Fz		Appelez-nous	-
17	Y0053631		Rack, Freezer Door		Appelez-nous	-
18	Y0053840		Door, Butter		Appelez-nous	-
NI	Y00000000		See Note Button - Plug - L.h. - Upper Hinge Bearing		Appelez-nous	-
NI	53303W		Button-plug-r.h. Handle Mounti		Appelez-nous	-
NI	53309L		Button-plug-l.h.-upper Hinge B		Appelez-nous	-
NI	53303L		Button-plug-r.h. Handle Mounti		Appelez-nous	-
NI	53308W		Kit-door Conversion		Appelez-nous	-
NI	53308L		Kit-door Conversion		Appelez-nous	-
NI	53309W		Button-plug-l.h.-upper Hinge B		Appelez-nous	-
