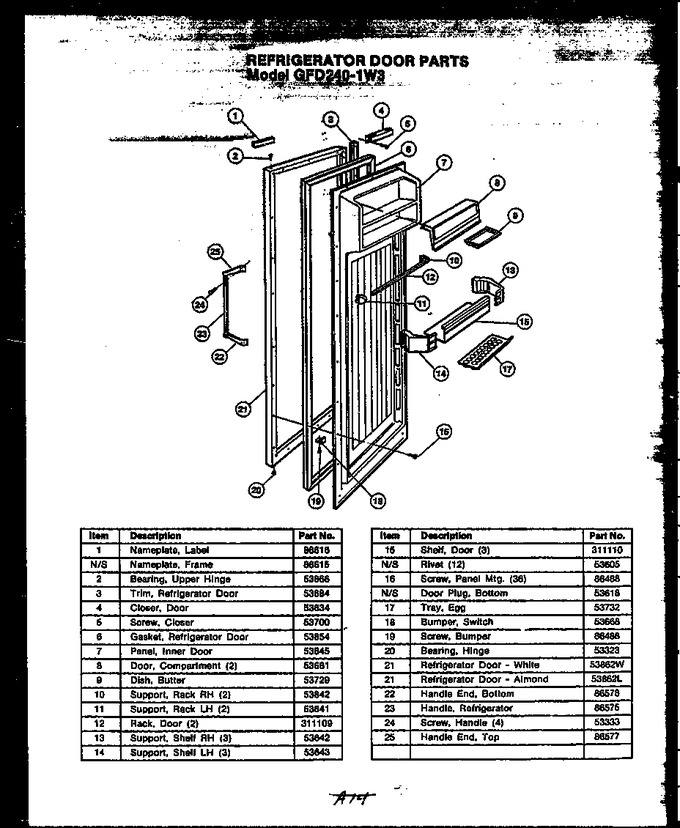

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y0086616		Label, Nameplate		Appelez-nous	-
2	0053866		Bearing, Hinge		Appelez-nous	-
3	Y0053684		Harness, Wiring		Appelez-nous	-
4	0053634		Closer, Door		Appelez-nous	-
5	Y0053700		Screw, Door Closer		Appelez-nous	-
6	0053854		Gasket, Refrigerator Door		Appelez-nous	-
7	Y0053845		Interior Panel, Refrig. Door		Appelez-nous	-
8	53681		Code J		Appelez-nous	-
9	Y0053729		Dish, Butter		Appelez-nous	-
10	0053842		Support, Top Rack, Rh		Appelez-nous	-
11	0053841		Support, Top Rack, Lh		Appelez-nous	-
12	0311109		Rack, Door		Appelez-nous	-
13	0053642		Support, Rh		Appelez-nous	-
14	0053643		Support, Lh		Appelez-nous	-
15	Y0311110		Shelf, Door		Appelez-nous	-
16	Y0086488		Screw		Appelez-nous	-
17	Y0053732		Tray, Egg		Appelez-nous	-
18	Y0053668		Bumper, Light Switch		Appelez-nous	-
19	Y0086488		Screw		Appelez-nous	-
20	Y0053323		Sub 86464, Hinge Bearing		Appelez-nous	-
21	53862W		Exterior Panel-refg.-textured-		Appelez-nous	-
21	53862L		Exterior Panel-textured - Almo		Appelez-nous	-
22	0086578		End, Handle Bottom		Appelez-nous	-
23	86575		Grip - Handle Fz				$ 97.41
24	Y0053333		Screw, Handle		Appelez-nous	-
25	0086577		Handle, End		Appelez-nous	-
NI	Y0053618		Button Plug, Door Stop Mtghole		Appelez-nous	-
NI	Y0086615		Frame, Nameplate		Appelez-nous	-
NI	0053605		Rivet A		Appelez-nous	-
