Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 67001317 Ladder, Side Special Order $ 39.13

2 67006425 Screw (6)   (Replaces: 67006400) In-Stock Immediately $ 7.30

3 67001073 Ladder, Center Special Order $ 56.89

4 W10709795 Screw (2)   (Replaces: 67006360) Special Order $ 13.79

6 12463302 Shelf, Glide (3) Appelez-nous -
7 WP67006878 Glass (2)   (Replaces: 67006878) In-Stock Immediately $ 185.19

8 WPW10568041 Frame, Crisper   (Replaces: 67001056) In-Stock Immediately $ 137.23

9 67001289 Rack, Can Appelez-nous -
10 WP67005864 Slide, Humidity Control   (Replaces: 67005864) In-Stock Immediately $ 8.20

11 WP67001054 Bracket, Glide (left)   (Replaces: 67001054) In-Stock Immediately $ 8.82

11 WP67001053 Bracket, Glide (right)   (Replaces: 67001053) In-Stock Immediately $ 9.24

12 67006425 Screw   (Replaces: 67006400) In-Stock Immediately $ 7.30

13 WP12227303WD Support, Frame (2)   (Replaces: 67001059) Special Order $ 111.25

14 WPW10231482 Trim, Crisper   (Replaces: 67003935) Special Order $ 118.70

15 WP67002633 Pan, Crisper (2)   (Replaces: 67002633) In-Stock Immediately $ 149.12

16 67004986 Basket, Freezer (upper) Special Order $ 234.59

17 WP67001716 Hook, Ladder   (Replaces: 67001716) In-Stock Immediately $ 11.14

18 67004127 Divider, Upper Basket Special Order $ 10.10

19 67006608 Screw Appelez-nous -
20 67006024 Basket, Freezer (lower) Appelez-nous -
21 67006644 Divider, Lower Basket Appelez-nous -
22 W11233072 Screw (4)   (Replaces: 67006626) In-Stock Immediately $ 14.72

23 WPW10671238 Rail, Center   (Replaces: 67001057) In-Stock Immediately $ 118.46

24 W10656986 Brace, Pantry   (Replaces: 67001720) Special Order $ 124.12

25 W11402523 Shelf   (Replaces: 67002373) In-Stock Immediately $ 232.46

26 W10328327 Drawer, Pantry   (Replaces: 67007066) Special Order $ 160.27

27 WP67001719 Track, Pantry   (Replaces: 67001719) In-Stock Immediately $ 8.99

28 WP67001721 Support, Pantry (left)   (Replaces: 67001721) In-Stock Immediately $ 8.70

28 WP67001722 Support, Pantry (right)   (Replaces: 67001722) In-Stock Immediately $ 8.93


    View Diagram in Separate Window     Print Icon   Print Part List

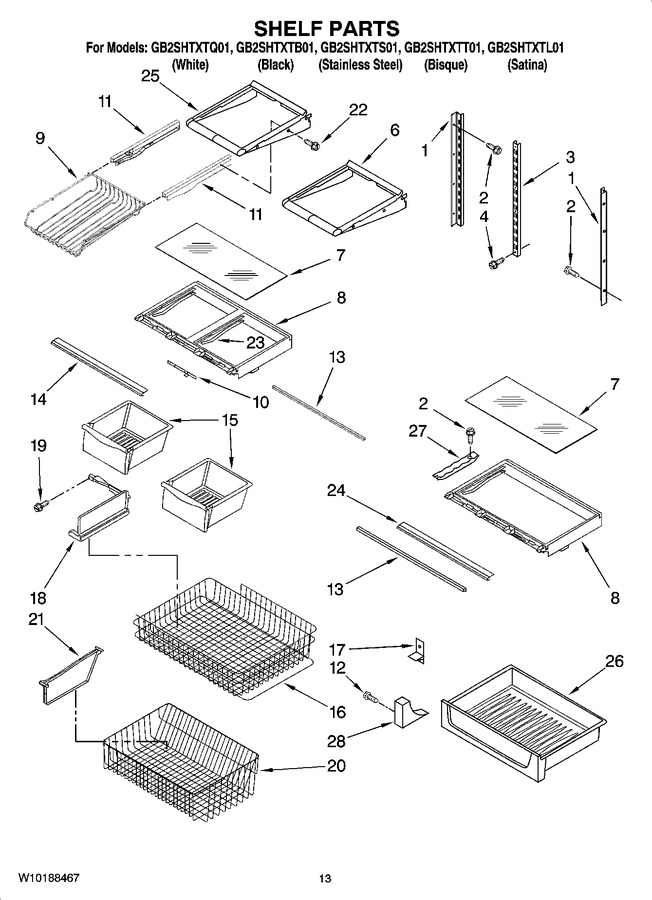

Diagram for GB2SHTXTB01
