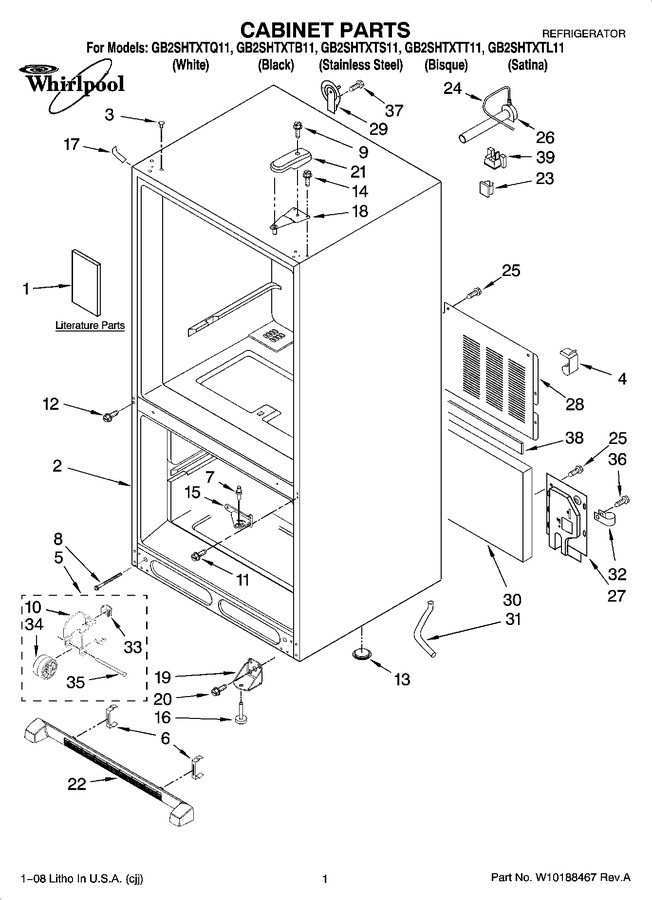

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Freezer Liner Parts


04 - Refrigerator Door Parts


05 - Freezer Door Parts


06 - Unit Parts


07 - Shelf Parts


08 - Icemaker Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10179469		Energy Tag		Appelez-nous	-
1	W10137645		Owners Manual		Appelez-nous	-
1	W10165418		Tech Sheet		Appelez-nous	-
3	M0310738		Plug, Button (3) (bisque)		Appelez-nous	-
3	WP67001130		Plug, Button (3) (white)   (Replaces: 67001130)			Immediately	$ 5.98
3	WP12246608		Plug, Button (3) (black)   (Replaces: 67001131)			Immediately	$ 8.15
4	67002816		Clip, Waterline				$ 19.15
5	67006118		Roller Assembly		Appelez-nous	-
6	12627302		Clip, Grille				$ 5.84
7	WP67006642		Pin, Center Hinge   (Replaces: 67006642)				$ 8.78
8	71003131		Bolt, Adjusting (rear)   (Replaces: 67006611)			Immediately	$ 7.08
9	WP8281196		Screw   (Replaces: 67006521)			Immediately	$ 7.55
10	12456801V		Bracket, Roller   (Replaces: 12456801)				$ 53.10
11	W11573362		Screw (3)   (Replaces: 67006380)				$ 14.72
12	WP98165		Screw   (Replaces: 67006473)				$ 8.57
13	A3076901		Plug, Button				$ 5.70
14	WP489349		Screw   (Replaces: 67006303)			Immediately	$ 8.43
15	WP12607104ED		Hinge, Center (black)   (Replaces: 67007043)				$ 167.35
15	W11689473		Hinge, Center (white)   (Replaces: 67006960)				$ 69.79
16	W11177593		Foot Brake   (Replaces: 67003868)				$ 12.18
17	67003484		Cover, Corner (white)				$ 21.42
17	67003485		Cover, Corner (black)			Immediately	$ 22.14
17	67003486		Cover, Corner (bisque)		Appelez-nous	-
18	WP12566606ED		Hinge, Top   (Replaces: 12566604ED)			Immediately	$ 47.13
19	12906303WD		Bracket, Foot   (Replaces: 67007174)				$ 88.58
20	67006564		Screw			Immediately	$ 8.15
21	67001014		Cover, Hinge (white)				$ 22.34
21	67001012		Cover, Hinge (black)				$ 49.71
21	67001013		Cover, Hinge (bisque)		Appelez-nous	-
22	WPW10534161		Grille Assembly (includes Clips) (white)   (Replaces: 67007004)				$ 147.09
22	67006791		Grille Assembly (includes Clips) (bisque)				$ 51.98
22	WPW10534162		Grille Assembly (includes Clips) (black)   (Replaces: 67006954)				$ 148.16
23	W10833902		Clip, Water Line   (Replaces: M0108105)				$ 11.54
24	WPB5705307		Tube, Plastic   (Replaces: B5705307)				$ 13.05
25	67006425		Screw (10)			Immediately	$ 7.30
26	W11176463		Elbow, Fill Tube   (Replaces: W10137519)			Immediately	$ 119.86
27	67004611		Cover, Water Valve		Appelez-nous	-
28	12575101ED		Cover, Unit		Appelez-nous	-
29	12726003		Cover, Water Line   (Replaces: 67003331)				$ 19.19
30	67003796		Insulation, Sound				$ 19.27
31	W10164397		Tube, Drain				$ 15.53
32	67001067		Clip, Drain Tube				$ 9.66
33	M0286708		Nut, Speed				$ 47.85
34	WP10450603		Roller   (Replaces: 67005127)				$ 8.27
35	M1205302		Pin				$ 5.85
36	WP33001882		Screw   (Replaces: 67006737)				$ 83.71
37	WP98165		Screw   (Replaces: 67006287)				$ 8.57
38	B5759649		Gasket		Appelez-nous	-
39	67004092		Block, Filter		Appelez-nous	-
