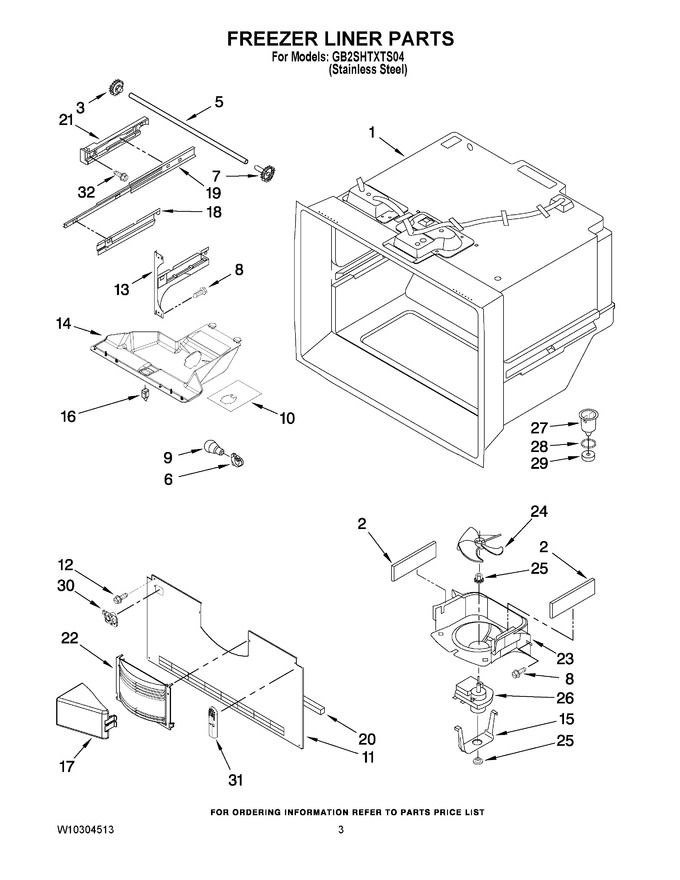

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Liner (not Aseviceable Part) |
|
- | |||||
| 2 | W10856123 | Gasket, Foam (Replaces: A3189392) |
|
Immediately | $ 8.06 | ||||
| 3 | 12002497 | Gear (2) (includes Rh & Lh) |
|
Immediately | $ 22.51 | ||||
| 5 | W11715937 | Shaft (Replaces: 12812902WD) |
|
$ 68.69 | |||||
| 6 | W11447232 | Socket, Light (Replaces: 12570701V) |
|
Immediately | $ 13.87 | ||||
| 7 | 12002497 | Gear (rh) (includes Lh Gear) |
|
Immediately | $ 22.51 | ||||
| 8 | WP33001882 | Screw (Replaces: 12990701) |
|
$ 83.71 | |||||
| 9 | W11679940 | Bulb, Light (Replaces: W10194422V) |
|
Immediately | $ 11.30 | ||||
| 10 | W11469652 | Foil, Fz Light (Replaces: W10277466) |
|
$ 23.29 | |||||
| 11 | W10308415 | Cover, Evaporator (Replaces: 12226111) |
|
$ 299.73 | |||||
| 12 | 67006425 | Screw (Replaces: 12990511) |
|
Immediately | $ 7.30 | ||||
| 13 | WPW10330993 | Bracket, Door (right) (Replaces: W10122148) |
|
$ 166.09 | |||||
| 13 | WPW10330991 | Bracket, Door (left) (Replaces: W10122147) |
|
$ 164.31 | |||||
| 14 | WPW10277025 | Module, Fz Light (Replaces: W10277025) |
|
$ 134.40 | |||||
| 15 | 13058002 | Clip, Evap. Motor |
|
$ 12.66 | |||||
| 16 | W11396033 | Switch, Light (Replaces: 12466105) |
|
Immediately | $ 37.30 | ||||
| 17 | W10157765 | Diverter-air |
|
$ 92.85 | |||||
| 18 | WPW10280608 | Basket, Cradle (left) (Replaces: W10280608) |
|
$ 92.15 | |||||
| 18 | WPW10280613 | Basket, Cradle (right) (Replaces: W10280613) |
|
$ 92.15 | |||||
| 19 | W11658402 | Slide, Drawer (2) (Replaces: W10120018) |
|
Immediately | $ 127.51 | ||||
| 20 | W11451451 | Gasket, Bottom (Replaces: A3189397) |
|
$ 13.03 | |||||
| 21 | W10261199 | Adapter, Slide (left) |
|
- | |||||
| 21 | W10261200 | Adapter, Slide (right) |
|
- | |||||
| 22 | WPW10175909 | Cover, Fan Shroud (Replaces: 13024803) |
|
Immediately | $ 85.72 | ||||
| 23 | WPW10167023 | Shroud, Evap.fan (Replaces: 13057901) |
|
Immediately | $ 66.28 | ||||
| 24 | WP2169142 | Fan, Blade (evap) (Replaces: 2169142) |
|
Immediately | $ 43.41 | ||||
| 25 | W10121318 | Grommet (2) |
|
$ 50.80 | |||||
| 26 | WPW10128551 | Motor, Evaporator (Replaces: W10128551) |
|
Immediately | $ 78.75 | ||||
| 27 | W10815413 | Funnel, Drain (incl. No. 28 & 29) (Replaces: D7753903) |
|
Immediately | $ 51.50 | ||||
| 28 | WPM0500703 | Seal (Replaces: M0500703) |
|
$ 11.47 | |||||
| 29 | WPB8381501 | Gasket (Replaces: B8381501) |
|
$ 7.78 | |||||
| 30 | W11448709 | Guide, Fill Tube (Replaces: 12932103) |
|
$ 25.87 | |||||
| 31 | WP67003924 | Cover, Thermistor (Replaces: 12815301) |
|
$ 8.21 | |||||
| 32 | WP489474 | Screw (Replaces: 12990501) |
|
Immediately | $ 8.55 |
