View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cabinet, Literature
02 - Freezer Liner
03 - Freezer Door
04 - Refrigerator Liner
05 - Refrigerator Door
06 - Unit
07 - Shelf, Optional
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

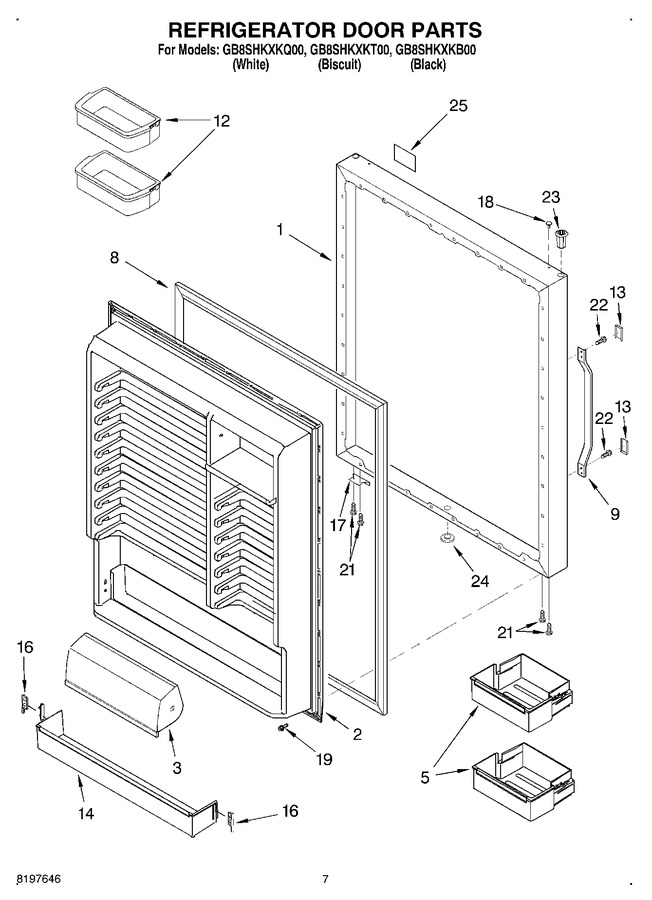

| 1 | 8170579 | Refrigerator Door Panel (includes Insulation) (biscuit) |
|
- | |||||
| 1 | 8170580 | Refrigerator Door Panel (includes Insulation) (black) |
|
- | |||||
| 1 | 8170581 | Refrigerator Door Panel (includes Insulation) (white) |
|
- | |||||
| 2 | 8170583 | Interior Panel |
|
- | |||||
| 3 | 8170723 | Door, Compartment |
|
- | |||||
| 5 | 8170586 | Shelf Bin (deep) |
|
- | |||||
| 8 | 8170517 | Door Gasket, Magnetic (black) |
|
- | |||||
| 8 | WP12550121Q | Door Gasket, Magnetic (white) (Replaces: 8170519) |
|
$ 337.08 | |||||
| 9 | 8170476 | Door Handle (biscuit) |
|
- | |||||
| 9 | 8170475 | Door Handle (black) |
|
- | |||||
| 9 | 8170477 | Door Handle (white) |
|
- | |||||
| 12 | 8170585 | Shelf Bin (4) |
|
- | |||||
| 13 | WP2193353W | Trim, Handle (white) (Replaces: 8170480) |
|
$ 8.52 | |||||
| 13 | 8170478 | Trim, Handle (black) |
|
- | |||||
| 13 | 8170479 | Trim, Handle (biscuit) |
|
- | |||||
| 14 | 8170584 | Trim, Door Shelf |
|
- | |||||
| 16 | 4343810 | Plug-trim |
|
- | |||||
| 17 | 12968202W | Stop, Door (white) (Replaces: 4344463) |
|
$ 69.29 | |||||
| 17 | 67003781 | Stop, Door (biscuit) (Replaces: 8170494) |
|
$ 83.12 | |||||
| 17 | W11708403 | Stop, Door (black) (Replaces: 4344563) |
|
Immediately | $ 14.75 | ||||
| 18 | 8170495 | Plug, Button (biscuit) |
|
- | |||||
| 18 | WP12246608 | Plug, Button (black) (Replaces: 4344533) |
|
Immediately | $ 8.15 | ||||
| 18 | WP67001130 | Plug, Button (white) (Replaces: 4344535) |
|
Immediately | $ 8.21 | ||||
| 19 | 4343811 | Screw |
|
- | |||||
| 21 | WPW10348409 | Screw (Replaces: 4344333) |
|
Immediately | $ 8.20 | ||||
| 22 | R9800670 | Screw (Replaces: 8170499) |
|
$ 10.58 | |||||
| 23 | 4344361 | Bushing (black) |
|
- | |||||
| 23 | 4344362 | Bushing (white) |
|
- | |||||
| 24 | 4344364 | Plug, Button (black) |
|
- | |||||
| 24 | 4344227 | Plug, Button (white) |
|
- | |||||
| 24 | 8170497 | Plug, Button (biscuit) |
|
- | |||||
| 25 | 4344575 | Nameplate (black) |
|
- | |||||
| 25 | 8170486 | Nameplate (biscuit) |
|
- | |||||
| 25 | 4344577 | Nameplate (white) |
|
- |
