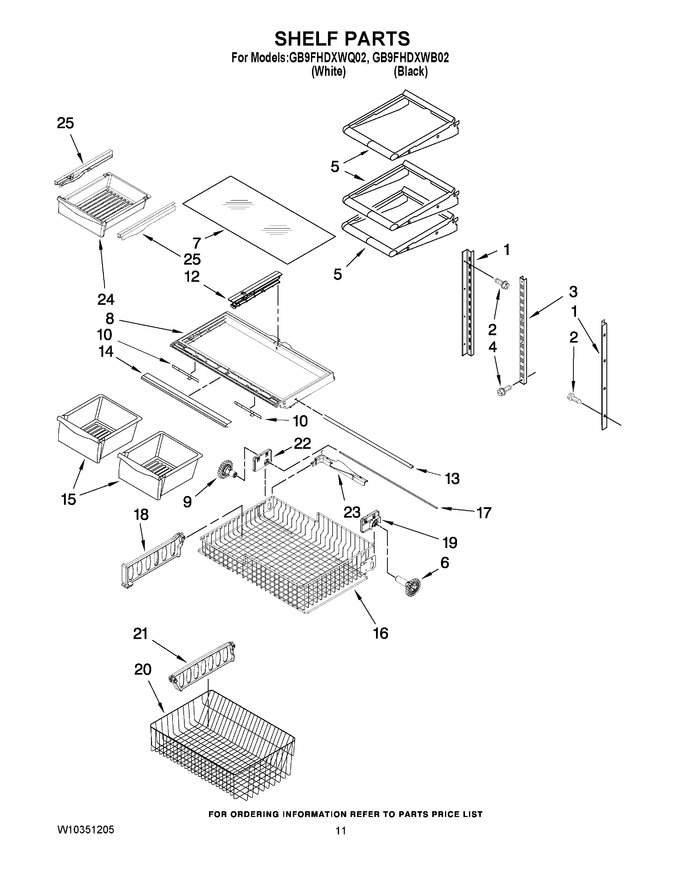

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10251970		Ladder, Side				$ 29.89
2	67006425		Screw (6)   (Replaces: 12990513)			Immediately	$ 7.30
3	W10273463		Ladder, Center				$ 29.61
4	W10215666		Screw (2)				$ 9.53
5	W11402522		Shelf, Stationary   (Replaces: 12463608)				$ 203.51
6	WPW10474715		Gear   (Replaces: W10146446)			Immediately	$ 32.76
7	WP67006877		Glass, Crisper   (Replaces: 12204823N)			Immediately	$ 209.75
8	WPW10671240		Frame, Crisper   (Replaces: 12530901SP)			Immediately	$ 138.10
9	WPW10474716		Gear   (Replaces: W10158749)			Immediately	$ 32.42
10	WP67005864		Slide-humidity-(2)   (Replaces: 12530805SP)			Immediately	$ 8.20
12	WPW10671238		Rail, Center Crisper   (Replaces: 12530701N)			Immediately	$ 118.46
13	WP12227302WD		Brace Crisper Frame   (Replaces: 12227302WD)				$ 111.60
14	WPW10231481		Trim, Crisper   (Replaces: W10231481)				$ 117.42
15	W10833528		Pan, Crisper (2)   (Replaces: 12531305)			Immediately	$ 139.95
16	W10169953		Basket, Freezer Upper		Appelez-nous	-
17	12812906WD		Shaft, Rack				$ 42.54
18	W10241046		Divider, (upper Basket)			Immediately	$ 29.19
19	W10348260		Mount, Rh   (Replaces: W10233899)				$ 89.90
20	W10503182		Basket, Freezer (lower)   (Replaces: W10146449)				$ 241.97
21	W10205416		Divider, Lower Basket		Appelez-nous	-
22	W10348259		Mount, Lh   (Replaces: W10233898)				$ 89.87
23	W10149389		Lift-bail Arm				$ 92.66
24	WP67001308		Pan   (Replaces: 12656504V)			Immediately	$ 138.10
25	WP67001054		Glide, Deli (left)   (Replaces: 12656601V)			Immediately	$ 8.82
25	WP67001053		Glide, Deli (right)   (Replaces: 12656602V)			Immediately	$ 9.24
