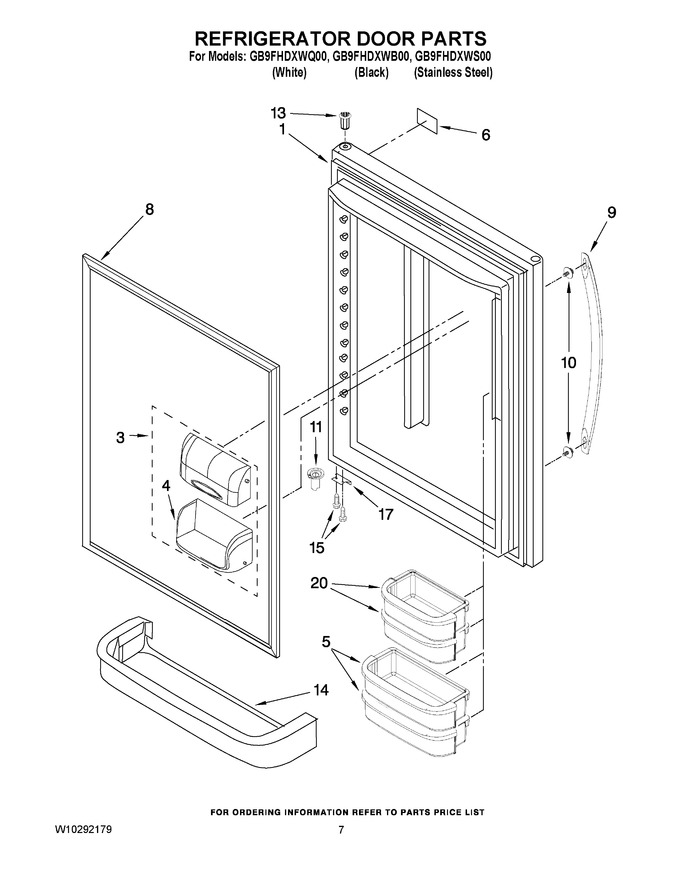

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 12658573WQ | Refrigerator Door (w/ Insulation) (white) |
|
$ 775.30 | |||||
| 1 | 13023857SQ | Refrigerator Door (w/ Insulation) (stainless) |
|
- | |||||
| 1 | 12658573BQ | Refrigerator Door (w/ Insulation) (black) |
|
- | |||||
| 3 | WP67003637 | Door, Dairy (Replaces: 12804701SP) |
|
Immediately | $ 82.67 | ||||
| 4 | WP67001279 | Tray, Dairy (Replaces: 12369502SP) |
|
Immediately | $ 88.01 | ||||
| 5 | WPW10371194 | Bucket (2) (medium) (Replaces: 12849124K) |
|
Immediately | $ 77.23 | ||||
| 6 | 2220214 | Nameplate |
|
$ 32.43 | |||||
| 8 | WPW10443309 | Gasket, Door Magnetic (white) (Replaces: W10164030) |
|
Immediately | $ 365.24 | ||||
| 8 | WPW10436245 | Gasket, Door Magnetic (black) (Replaces: W10164031) |
|
$ 362.36 | |||||
| 9 | W11351147 | Handle, Door (stainless) (Replaces: W10223019) |
|
$ 198.22 | |||||
| 9 | W11351146 | Handle, Door (black) (Replaces: W10222985) |
|
$ 189.08 | |||||
| 9 | WPW10222984K | Handle, Door (white) (Replaces: W10222984) |
|
$ 205.46 | |||||
| 10 | WP12992902 | Screw (Replaces: 12992902) |
|
$ 11.91 | |||||
| 11 | WP67003639 | Closure, Door (black) (Replaces: 12028505B) |
|
$ 90.32 | |||||
| 11 | WP67003638 | Closure, Door (white) (Replaces: 12028505W) |
|
Immediately | $ 8.15 | ||||
| 13 | WP67004977 | Bushing (white) (Replaces: 10961006W) |
|
$ 8.20 | |||||
| 13 | 67004978 | Bushing (black) (Replaces: 10961006B) |
|
$ 22.10 | |||||
| 14 | 67001139 | Retainer, Door (Replaces: 12557904) |
|
Immediately | $ 104.79 | ||||
| 15 | WP98165 | Screw (Replaces: 12990504) |
|
$ 8.57 | |||||
| 17 | W11708403 | Stop, Door (black) (Replaces: 10447112) |
|
Immediately | $ 14.75 | ||||
| 17 | 12968202W | Stop, Door (white) (Replaces: 10447111) |
|
$ 69.29 | |||||
| 20 | WPW10351081 | Bucket (2) (small) (Replaces: 12849103V) |
|
Immediately | $ 73.03 |
