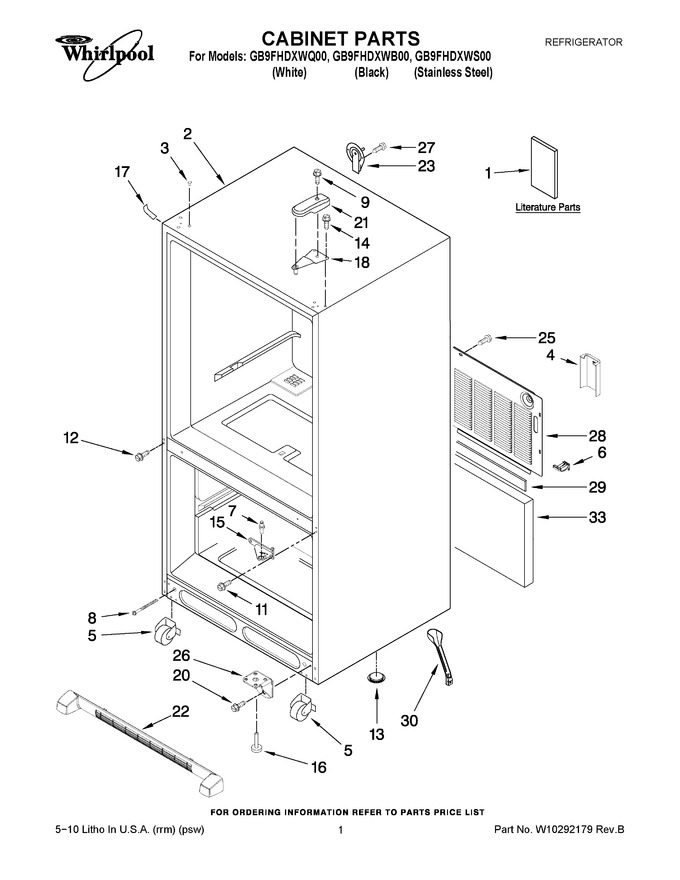

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10259132 | Tech Sheet |
|
- | |||||
| 1 | W10258247 | Energy Tag |
|
- | |||||
| 1 | W10208431 | Owners Manual |
|
- | |||||
| 2 | N/P | Cabinet (not A Servicable Part) |
|
- | |||||
| 3 | WP12246608 | Plug, Button (3) (black) (Replaces: M0310731) |
|
Immediately | $ 7.76 | ||||
| 3 | WP67001130 | Plug, Button (3) (white) (Replaces: M0310729) |
|
Immediately | $ 5.98 | ||||
| 4 | W10208592 | Guard-water Valve |
|
- | |||||
| 5 | 12580304 | Roller Assembly |
|
$ 5.84 | |||||
| 6 | W10216614 | Sweep-water Valve |
|
$ 18.51 | |||||
| 7 | WP67006642 | Pin, Center Hinge (Replaces: 10351006) |
|
$ 7.93 | |||||
| 8 | 71003131 | Bolt, Adjusting (rear) (Replaces: 12606103) |
|
Immediately | $ 6.74 | ||||
| 9 | WP8281196 | Screw (Replaces: 12992602) |
|
Immediately | $ 7.19 | ||||
| 11 | W11573362 | Screw (Replaces: 12992201) |
|
$ 14.02 | |||||
| 12 | WP98165 | Screw (Replaces: 12990521) |
|
$ 8.00 | |||||
| 13 | A3076901 | Plug, Button |
|
$ 5.70 | |||||
| 14 | WP489349 | Screw (3) (Replaces: 12992403) |
|
Immediately | $ 7.88 | ||||
| 15 | WP12607104ED | Hinge, Center (black) (Replaces: 12607104ED) |
|
$ 152.73 | |||||
| 15 | W11689473 | Hinge, Center (white) (Replaces: 12607103WD) |
|
$ 66.47 | |||||
| 16 | 10354002 | Foot Brake (2) |
|
Immediately | $ 7.38 | ||||
| 17 | 67003485 | Cover, Corner (black) (Replaces: 12587703B) |
|
Immediately | $ 21.09 | ||||
| 17 | 12587703W | Cover, Corner (white) |
|
$ 21.81 | |||||
| 18 | WP12566606ED | Hinge, Top (Replaces: 12566606ED) |
|
Immediately | $ 44.89 | ||||
| 20 | 67006564 | Screw (8) (Replaces: 12991302) |
|
Immediately | $ 7.69 | ||||
| 21 | 67001012 | Cover, Hinge (black) (Replaces: 12477601B) |
|
$ 47.34 | |||||
| 21 | 67001014 | Cover Hinge (white) (Replaces: 12477601W) |
|
$ 21.28 | |||||
| 22 | WPW10534167 | Grille Assembly (includes Clips) (black) (Replaces: W10236650) |
|
$ 91.42 | |||||
| 22 | WPW10534166 | Grille Assembly (includes Clips) (white) (Replaces: W10236649) |
|
Immediately | $ 76.61 | ||||
| 23 | 12726003 | Cover, Water Line |
|
$ 18.28 | |||||
| 25 | 67006425 | Screw (9) (Replaces: 12990511) |
|
Immediately | $ 6.95 | ||||
| 26 | 12906303WD | Bracket, Foot |
|
$ 84.36 | |||||
| 27 | WP98165 | Screw (Replaces: 12990504) |
|
$ 8.00 | |||||
| 28 | W10210978 | Cover, Unit |
|
$ 192.17 | |||||
| 29 | B5759655 | Gasket |
|
$ 12.41 | |||||
| 30 | W10619951 | Tube, Drain (Replaces: W10210987) |
|
Immediately | $ 42.39 | ||||
| 33 | 12820505 | Pad-acoustic |
|
$ 71.70 |
