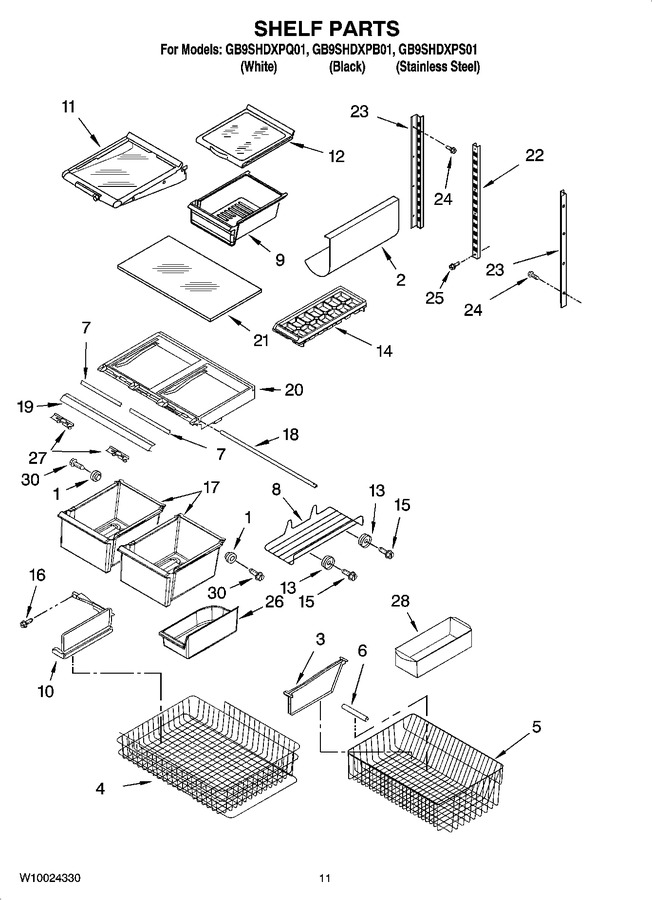

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4344093		Roller		Appelez-nous	-
2	8170799		Rack, Wine		Appelez-nous	-
3	8171227		Divider, Basket (lower)		Appelez-nous	-
4	8208218		Basket, Freezer (upper)		Appelez-nous	-
5	W10503182		Basket, Freezer (lower)   (Replaces: 8208219)				$ 241.97
6	8208220		Handle, Basket		Appelez-nous	-
7	8170555		Seal, Front Crisper		Appelez-nous	-
8	8170880		Rack, Ice Tray		Appelez-nous	-
9	WP2218127K		Meat Pan   (Replaces: 8170754)				$ 146.80
10	8171226		Divider, Shelf (upper)		Appelez-nous	-
11	8170763		Shelf Assembly (3)		Appelez-nous	-
12	8170964		Shelf, S/g, S/o		Appelez-nous	-
13	4344239		Spacer, Ice Rack		Appelez-nous	-
14	WP841180A		Tray, Ice Cube   (Replaces: 8170800)			Immediately	$ 47.84
15	WP67006908		Screw   (Replaces: 4344238)			Immediately	$ 8.78
16	8171073		Screw		Appelez-nous	-
17	8170717		Crisper (2)		Appelez-nous	-
18	WP12227302WD		Support, Crisper Cvr   (Replaces: 8170554)				$ 111.60
19	8170557		Trim, Crisper		Appelez-nous	-
20	8171168		Frame, Crisper		Appelez-nous	-
21	8170560		Glass, Crisper Cover		Appelez-nous	-
22	8170998		Ladder, Center		Appelez-nous	-
23	8170999		Ladder, Side		Appelez-nous	-
24	67006425		Screw   (Replaces: 4344396)			Immediately	$ 7.30
25	8170578		Screw		Appelez-nous	-
26	WP67001255		Pan, Ice   (Replaces: 8170926)				$ 213.23
27	8170556		Slide, Humidity Control		Appelez-nous	-
28	W10136387A		Bin, Egg   (Replaces: 8170709)				$ 19.54
30	4344094		Screw		Appelez-nous	-
	1117510		Torx Key				$ 5.84
	542639		Cement, Alumilastic 1-1/4 Oz.)		Appelez-nous	-
	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
	799340		Paint, Bulk (1 Qt.) (black (uncut))		Appelez-nous	-
	N/A		Miscellaneous		Appelez-nous	-
	212643		Sealer, Gum (4 Feet)			Immediately	$ 96.42
	479502		Tape, Vinyl 3/4 X 108``)				$ 66.77
	799833		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
	833938		Kit, Terminal Connector				$ 8.47
	4396418		Amkit02				$ 383.28
	2217192		Cleaner, (stainless Steel)		Appelez-nous	-
	WP542638		Grease, Silicone (1/2 Oz.)   (Replaces: 542638)			Immediately	$ 12.78
	WP503695		Cork, Sealer 1/4 Pound)   (Replaces: 503695)				$ 123.84
	WP505587		Sealer, Mastic (1 Qt.).   (Replaces: 505587)			Immediately	$ 182.65
	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 40.12
	285006		Paint, Pressurized Spray (12 Oz.) (black)   (Replaces: 350939)				$ 59.89
	350942		Paint, Pressurized Spray (12 Oz.) (primer, White)				$ 94.14
